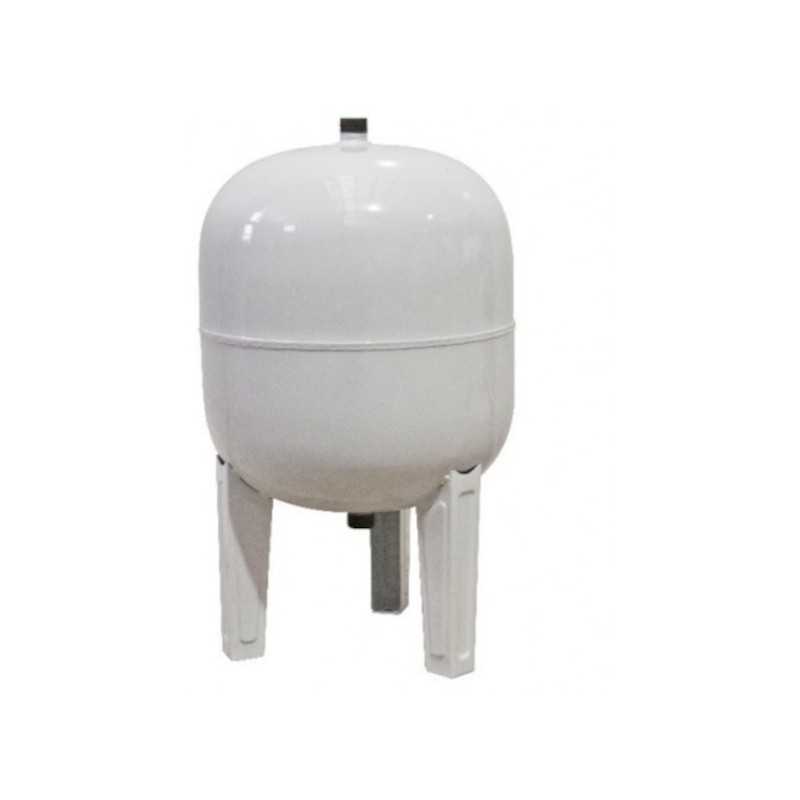

DHW expansion vessel 35 CMR Ibaiondo

The Expansion Vessel Ibaiondo CMR 35 is an essential component in open health hot water systems (DHW). With a capacity of 35 litres, this equipment is made of steel and has a fixed expansion membrane, suitable for use with drinking water. Designed to absorb volume and pressure changes in the system, CMR 35 ensures safe and reliable operation, even in large installations.

As an integral part of the health hot water systems (DHW), the Expansion Vase Ibaiondo CMR 35 plays a crucial role in absorbing the volume and pressure changes that occur as the water heats and expands into the circuit.

This CMR 35 model has a capacity of 35 liters, making it the ideal solution for larger installations, such as multi-storey residential buildings, hotel complexes, hospitals or industrial applications. Its robust steel construction and fixed, non-replaceable, expansion membrane make it suitable for use with drinking water.

Some of the most relevant technical features of the Expansion Vase Ibaiondo CMR 35 are:

• Volume: 35 litres
• Maximum service pressure: 8 bar
• Test pressure: 12-15 bar
• Preload factory: 3 bar
• Temperature range: -10°C to 100°C
• Water connection: 3/4" male thread"
• Exterior finish: White paint

Unlike the traditional expansion vessels with a changeable diaphragm, the CMR 35 model Ibaiondo it has a fixed membrane that does not require periodic maintenance. This greatly simplifies service tasks and ensures trouble-free operation throughout the team's lifetime.

Thanks to its compact and simple installation design, the CMR 35 is easily integrated into all types of sanitary hot water systems, even those of great size. Its robust construction and technical features make it a reliable and safe solution to maintain the integrity of the system, avoiding problems such as leaks or overprints.

Whether you are looking to replace an old expansion vessel or integrate a new one into your DHW system, the Expansion Vase Ibaiondo CMR 35 is an excellent choice that will provide years of reliable and smooth running, even in the most demanding applications.
