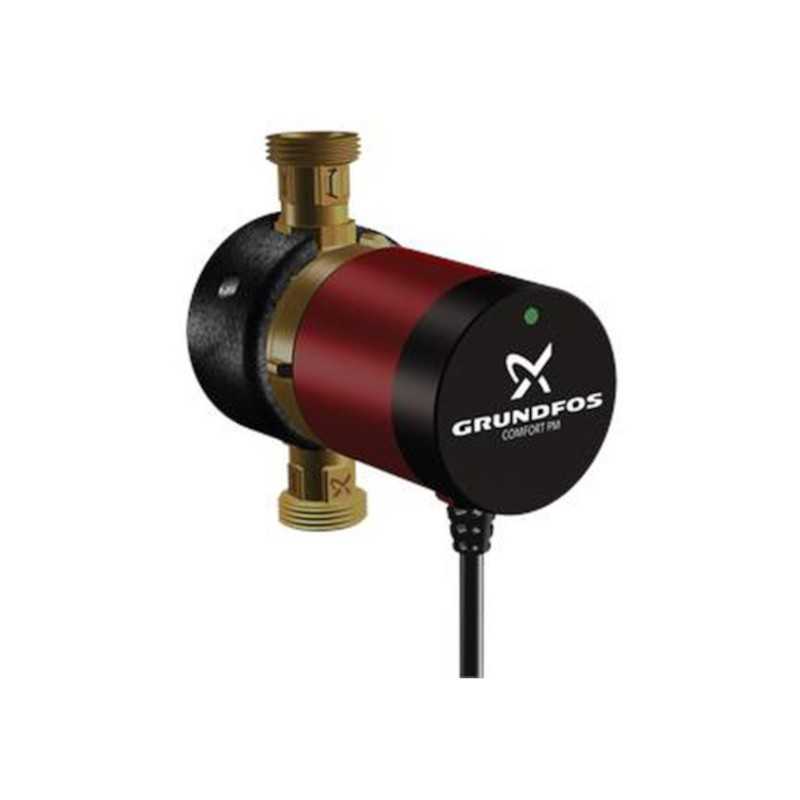

DHW Comfort PM Autoadapt 15-14 B Grundfos

Comfort Circulator Grundfos 15-14 BA PM Cod.97916757

The Circular Pump Grundfos Comfort 15-14 BA PM is an advanced model designed specifically to ensure efficient and comfortable circulation of hot water in residential environments. With innovative features such as its spherical engine, AUTOADAPT function and rotating bearing shaft design, this pump offers exceptional performance, long service life and ease of installation and maintenance. Whether you need to upgrade your hot water system or look for a reliable and efficient solution, Comfort 15-14 BA PM from Grundfos is the ideal choice to provide maximum comfort in your home.

Technical specifications

• Liquid pumped: Water
• Liquid temperature range: 2°C to 95°C
• Maximum operating fluid temperature: 60°C
• Maximum manometric height: 14 dm
• Density: 983,2 kg/m3
• Temperature class: TF95
• Approvals: CE, VDE, EAC, WEEE
• Pump housing material: Brass
• Driver Material: Compound
• Maximum working pressure: 10 bar
• Connection type: Rosca Rp
• Pipe Connection Diameter: 1/2"
• Longitude between ports: 80 mm
• Maximum input power: 7 W
• Network frequency: 50/60 Hz
• Nominal voltage: 1 x 230 V
• Current at speed 3: 0.07 A
• Operating capacitor size: 0.6 μF
• Protection Degree (IEC 34-5): IP44
• Insulation class (IEC 85): F
• Net weight: 0.94 kg
• Gross weight: 1.04 kg
• Transport volume: 0.003 m3

Now let's see in detail the key features of this circulating pump GrundfosThe following:

One of the most outstanding features of the Circular Pump Grundfos Comfort 15-14 BA PM is its innovative spherical engine. Unlike the conventional encapsulated engines, the motor spherical design allows a direct transmission of the magnetic field from the stator to the rotor, in charge of boosting the water. This achieves a hermetic separation between the engine and the pumping section, completely eliminating any risk of leakage.

In addition, the absence of a rotating bearing shaft makes this pump extremely resistant to lime accumulation and greatly facilitates maintenance tasks. High-quality bearings and the impeller made of materials such as stainless steel, rubber and technical plastics approved for drinking water ensure long service life and wear-free operation.

Another innovative feature is the AUTOADAPT function Grundfos. This adaptive control system allows the pump to constantly monitor the system and automatically adjust its speed and power consumption based on the actual hot water circulation needs. When demand is low, the pump reduces its consumption to be more efficient; but when demand increases, it detects change and increases its power instantly to ensure supply. In this way, the AUTOADAPT function optimizes the operation of the pump at all times, offering significant energy savings and greater user comfort.

Regarding technical specifications, the Circular Pump Grundfos Comfort 15-14 BA PM is designed to handle water at temperatures between 2°C and 95°C, with a maximum working pressure of 10 bars. It has a maximum manometric height of 14 dm and an input power of up to 7 W, making it a highly energy efficient option.

An additional aspect to highlight is the simplicity of installation and maintenance of this pump. It comes equipped with a 1.5 m power cable with plug, which greatly simplifies the electrical connection. In addition, the pump head can easily be separated from the accommodation, allowing cleaning and service tasks without the need to completely dismantle the unit.

In short, the Circular Pump Grundfos Comfort 15-14 BA PM is an advanced and reliable solution to ensure efficient and comfortable hot water circulation in residential environments. Its innovative spherical engine, AUTOADAPT function and ease of installation and maintenance make it the ideal choice to provide maximum comfort and efficiency in the home's hot water systems.
