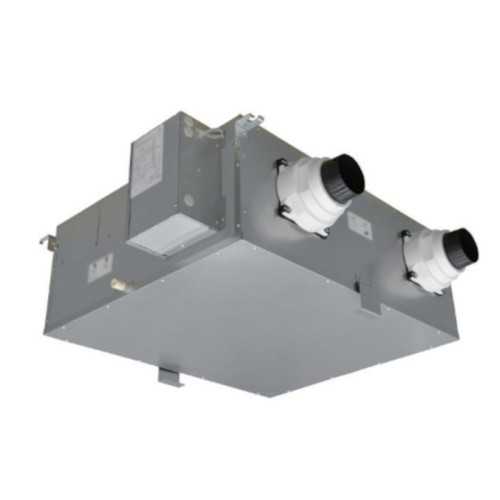

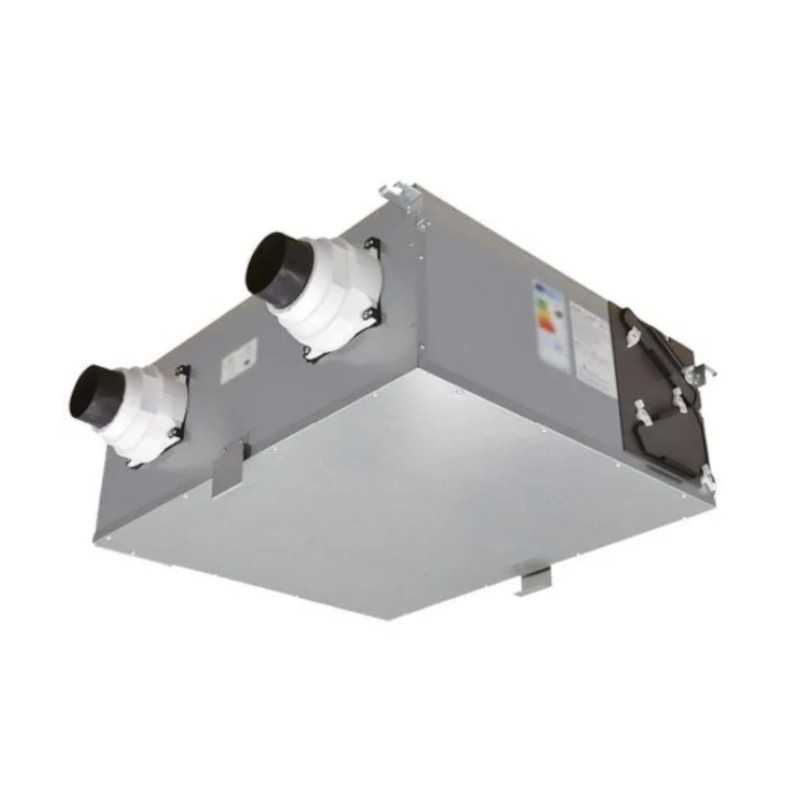

    Heat recovery Centralized Lossnay VL-220CZGV-E

    ¿Any doubt about the product?

    Talk to us and consult us. We will solve all your doubts

    Heat recovery Centralized Lossnay VL-220CZGV-E

    Referencia: VL-220CZGV-E
    €1,394.31
    Tax included

    We are currently out of stock.

    Ask us about availability!!

    Envío GRATIS en España (Península) a partir de 300€ + info

    Email has been sent successfully.

    Calcular Gastos de Envío
    🛡️ Pago Seguro ✅ Garantía Oficial

    Mitsubishi VL-220CZGV-E

    Centralized 230 m³ / h heat reclaimer

    Exceptional horizontal centralized recovery with Efficiency 86% and 4 speeds. Exclusive Lossnay technology and ultra-silent performance since 14db.

    The More versatile lossnay. Flow 65-230 m³ / h with exchange enthalpic and automatic by-pass for maximum energy savings.

    Main advantages

    Ultra-silent 14db
    Efficiency 86%
    4 speeds
    Lossnay Technology
    Exchange enthalpic
    Class

    Ideal for:

    Housing 80-150m² • Continuous operation • Centralized VMC • Thermal exchange • Energy saving • Horizontal installation
    230 m³ / h Silent 14db
    A • 86% • Lossnay • VL-220CZGV-E

    NORMALLY PURCHASED TOGETHER

    • Heat recovery Centralized Lossnay VL-220CZGV-E
    • +
    • PZ-61DR Lossnay Weekly Programming Remote (for RVX/RVXT/VL-220CZGV-E)
    • +
    • PZ-43SMF Lossnay Simplified Control (for RVX/RVX3/RVXT/RVS)
    • Total price: €1,813.78
    info Items available for pre-order  Show details


    Security policy



    Delivery policy



    Refund policy

    Mitsubishi Electric Vl-220czgv-and Heat recovery Centralized lossnay

    The Mitsubishi Electric Vl-220czgv-and is a heat recovery centralized horizontal of the prestigious Lossnay range, designed specifically to provide continuous ventilation 24 hours a day in medium-sized commercial housing, offices and spaces. This revolutionary system of vMC controlled mechanical ventilation it combines the constant renewal of the indoor air with an exceptional energy efficiency, establishing new standards in the sector of the air conditioning and domestic ventilation.

    Equipped with the exclusive lossnay Technology developed and perfected by Mitsubishi Electric for more than 30 years, the VL-220CZGV-E achieves a thermal exchange efficiency of up to 86% at its minimum speed, taking advantage of the internal temperature and humidity conditions of the building to preconceive the outside air. This advanced technology exchange enthalpic it allows recovering both the sensitive and latent heat, transferring temperature and humidity of the air expelled to the renewal air.

    Complete technical specifications VL-220CZGV-E

    FeatureSpecification
    ModelVl-220czgv-and
    Power supply220-240V / 50HZ - 220V / 60Hz
    Available speeds4 speeds (1, 2, 3, 4)
    Air flow speed 165 m³ / h
    Air flow speed 2120 m³ / h
    Air flow rate 3165 m³ / h
    Air flow speed 4230 m³ / h
    Efficiency Vel exchange. 186%
    Efficiency Vel exchange. 285%
    Efficiency Vel exchange. 384%
    Efficiency Vel exchange. 482%
    Electrical consumption speed 18,5w
    Electrical consumption speed 218,5w
    Electrical consumption speed 335w
    Electrical consumption speed 480w
    Speed level Speed 114 dB
    Sound level Speed 219 dB
    Sound level Speed 325 db
    Sound level Speed 431 dB
    Dimensions (high x wide x background)362 x 885 x 815 mm
    Weight31 kg
    Energy labelClass A at all speeds

    Main features

    🌬️ Variable flow

    4 speeds of 65 to 230 m³ / h

    ⚡ High efficiency

    Up to 86% thermal recovery

    🔇 Ultra-silent

    From 14 dB in minimum speed

    💡 Low consumption

    From 8.5W of consumption

    🏠 Compact design

    362 x 885 x 815 mm

    🌿 Class

    Maximum energy efficiency

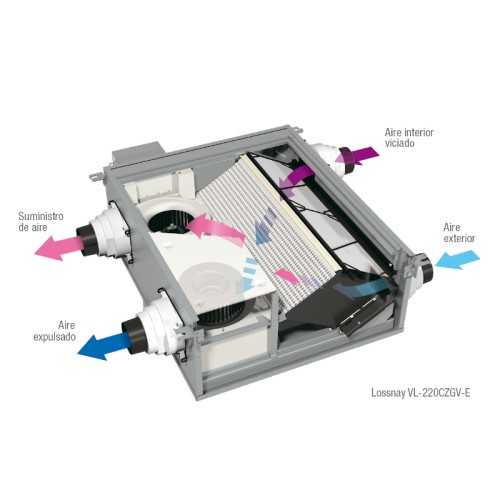

    The core Exchanger Lossnay it constitutes the heart of this system, manufactured with paper sheets specially developed by Mitsubishi Electric that allows the transfer of heat and humidity between the air currents without mixing the flows or allowing the passage of contaminants. This exclusive material guarantees a highly efficient energy recovery that can reduce up to 30% investment in air conditioning and heating equipment.

    With four operating speeds selectable, the VL-220CZGV-E adapts perfectly to the specific needs of each moment and space. At its minimum speed, it operates with a consumption of just 8.5W and an ultra-silent sound level of only 14 dB, allowing its nightly running without affecting rest.

    Recommended applications

    • ✓Single-family homes of 80-150 m²
    • ✓Apartments and townhouses
    • ✓Small offices and offices
    • ✓Medical consultations and dental clinics
    • ✓Commercial spaces smaller
    • ✓Any application that requires continuous ventilation

    Benefits of the Lossnay system

    • ✓Improved indoor air quality eliminating contaminants
    • ✓Control moisture avoiding condensation
    • ✓Significant energy saving air-conditioning
    • ✓Silent performance 24 hours
    • ✓Reduces the thermal load air-conditioning
    • ✓Preheat in winter and preset in summer
    • ✓Meets Regulations CTE and RITE

    Where to buy the Mitsubishi Electric VL-220CZGV-E at the best price?

    On https://tualmacendelclima.com/en/ you will find this heat recovery Lossnay with the best market conditions. We are specialists in air conditioning and ventilation with more than 15 years of experience:

    • ✓Best price guaranteed
    • ✓Free shipping on orders over € 300
    • ✓Official guarantee of the manufacturer
    • ✓Professional installation service throughout EspaNA
    • ✓Custom Technical Advice
    • ✓Specialized Technical Support
    • ✓Stock for immediate delivery
    • ✓Information interesting

    Our team of experts will help you choose the perfect configuration for your project and it will provide you with all the necessary technical support.

    VL-220CZGV-E

    Data sheet

    Brand
    Mitsubishi Electric
    Thermal efficiency (%)
    82,00
    Exchanger
    Sensible
    Maximum flow (m3 / h)
    230
    High (mm)
    342
    Width (mm)
    885
    Deep (mm)
    815
    Weight (kg)
    31,0
