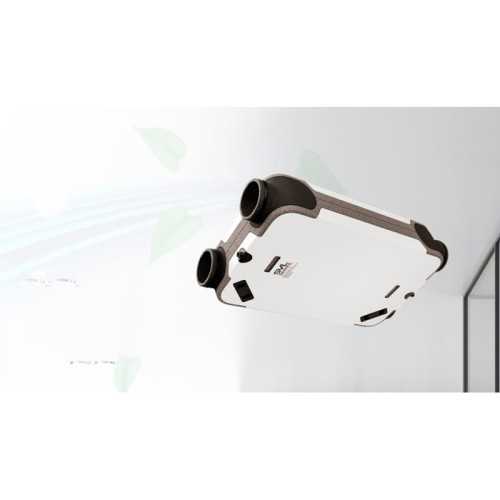

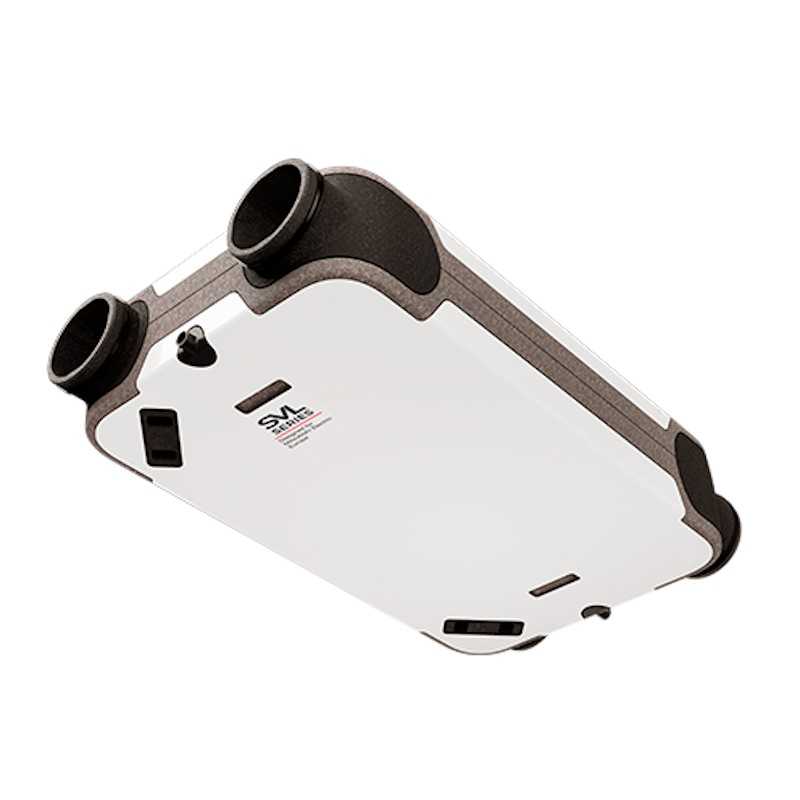

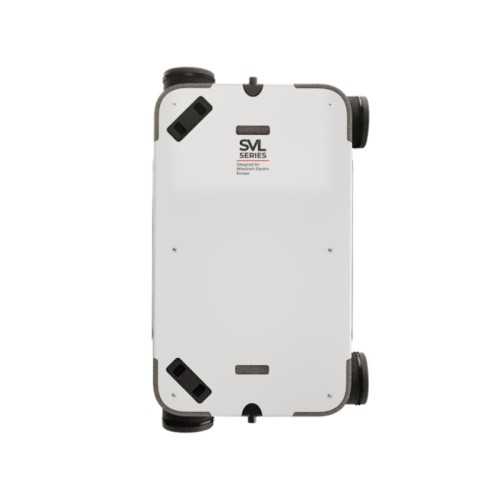

The Mitsubishi Electric SVL-200czpv-and is the heat recovery sensitive of greater capacity from the innovative SVL series, designed to provide high efficiency controlled mechanical ventilation in medium homes, offices and commercial spaces that require continuous air renovation with maximum energy savings. With a maximum flow of 180 m³ / h and maintaining the ultra-compact height feature of only 21 cm, this system combines power and installation versatility like no other market team.

Incorporates the more advanced sensitive heat recovery technology developed by Mitsubishi Electric, achieving a thermal recovery efficiency of up to 87% that places the team at the forefront of the sector. The system uses a high performance cross flow exchanger manufactured with state-of-the-art plastic materials that guarantee an optimal thermal transfer, maximum durability and moisture resistance, being especially suitable for installations in kitchens and bathrooms.

The revolutionary ultra-compact SVL-200CZPV-E design keeps the height feature of just 21 cm it makes it the ideal solution for installations with severe spatial limitations. The unit can be mounted both in horizontal position as vertical according to the needs of the project, and its four air connections can be reoriented in increments of 90 °, offering exceptional adaptability to any architectural configuration.

Equipped with centrifugal fans of forward shovels with high efficiency EC motors, the system provides a variable flow control of 0-100% with the exclusive automatic constant flow technology. This intelligent function allows the fans to automatically adjust their rotation speed to maintain the programmed flow independently of the variations in the system's load losses.

• ✓Integrated filtration system with G4 Filters Serial
• ✓Intelligent automatic by-pass for Free-Cooling
• ✓EC Motors of Maximum Efficiency with modulation 0-100%
• ✓Automatic constant flow adaptive
• ✓Core resistant exchanger dummy
• ✓Normable connections 90 ° for maximum flexibility
• ✓Right / left configuration on-site

The SVL-200czpv-and has obtained the prestigious passive House Certification, the most rigorous international standard for ultra-high energy efficiency buildings. This certification guarantees that the team complies with the most demanding criteria of energy efficiency, constructive quality and operational benefits, validating its suitability for sustainable construction projects.

With his energy Classification A +, SVL-200CZPV-E represents the culmination of decades of research in efficient residential ventilation. The system drastically improves the quality of the indoor air by eliminating contaminants, CO2, volatile organic compounds and excess moisture, significantly contributing to the overall energy savings of the building.

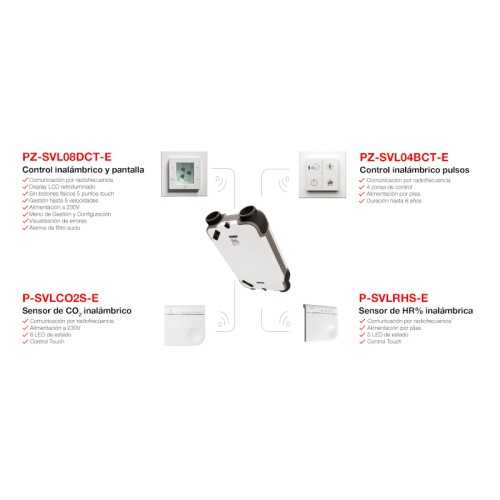

The control of the system is done through the wireless Command PZ-SVL08DCT-E, which uses low consumption radio frequency technology. The knob incorporates 5 capacitive pushbuttons and an LCD screen with backlighting that allows to manage all operational functions, set time schedules and configure advanced parameters.

As optional accessories, they are available wireless CO2 sensors and humidity that allow automatic modulation of the air flow according to the real needs of space. The humidity sensor incorporates long-term batteries, eliminating the need for electrical connection and enormously simplifying the installation.

• ✓Housing of 100-120 m²
• ✓Large apartments and duplex
• ✓Small offices up to 150 m²
• ✓Medical consultations specialized
• ✓Dental clinics large
• ✓Aesthetic centers and well-being
• ✓Professional Dispatches
• ✓Commercial premises medium

The installation of SVL-200czpv-and it has been optimized to simplify the work of the installers. The system can be configured in situ for operation with right or left orientation by means of a simple adjustment on the electronic board, eliminating the need to maintain multiple references. The evacuation of condensate is carried out by the dry Siphon P-SVLSYF-E that prevents the reflux of odors.

Maintenance is minimal and economical, mainly limited to periodic cleaning of easily accessible filters. The long-term exchanging core and the Mitsubishi top quality components guarantee years of reliable operating with reduced operating costs.

The system allows advanced integration with domotic platforms by optional interfaces Modbus or KNX. These communications are established wirelessly between the unit and the interfaces, simplifying the installation and allowing full remote control, advanced programming and energy monitoring from mobile devices or centralized management platforms.

Its capacity of up to 180 m³ / h is ideal for 3-4 rooms or open spaces of medium-large surface, guaranteeing multiple air renovations per hour according to the CTE DB-HS3 and Rite regulations. The system contributes to overall energy savings, being able to reduce up to 30% the annual air conditioning costs thanks to its high efficiency of thermal recovery of 87%.

Advanced technology allows intelligent operation that automatically adapts to changing conditions, continuously optimizing energy efficiency and comfort. Its robust construction guarantees years of reliable operation with minimal maintenance.
