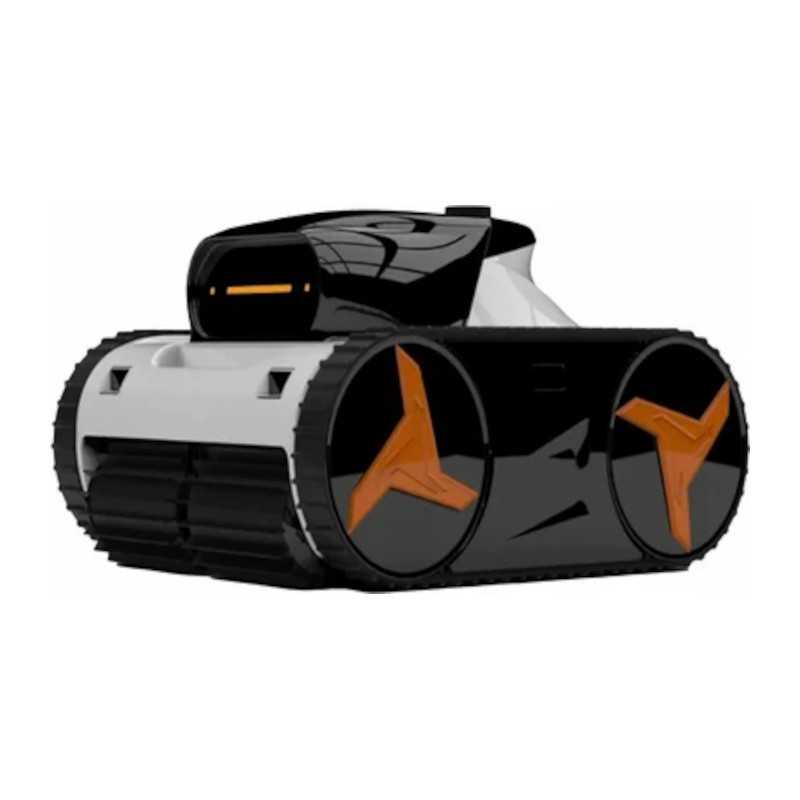

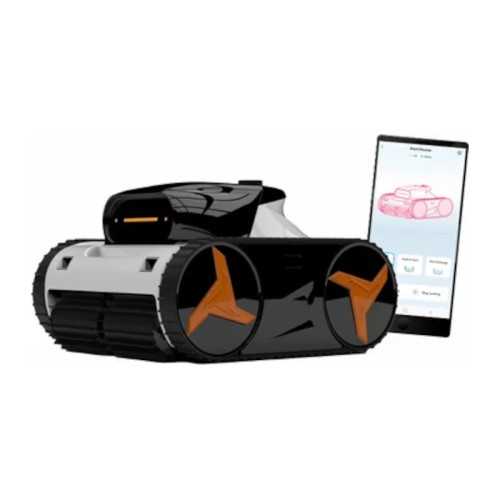

Automatic Pool Cleaning PCS Inverx N 6x Winless

PQS Inverx N60 Full Inverter

Absolute wireless freedom with unprecedented energy efficiency. Up to 6 hours of certified autonomy, navigation by 3D scanning and igarden integration.

Technical study and hydraulic advantages of the wireless system

The engineering applied in the Robots of the Inverx N series represents a drastic evolution in the maintenance coefficients of residential pools. In lack of aerial physical connections and operate with an autonomous motor powered by battery, the model Inverx N60 it works 100% independently of the main filtration pump of the vessel. This prevents premature wear from the filter load of the scrubber (sand or glasses) and eliminates hydraulic back pressure on the skimmers. Our technical department is thoroughly evaluating the dimensions and materials of each pool to ensure maximum performance of the system.

📊 All mechanical and functional coefficients have been validated with the official support documentation of the manufacturer.

Record autonomy and intelligent 3D scanning: cusp of wireless cleaning

Automatic Cleaning PQS InverX N60 introduces an unprecedented autonomy standard in the maintenance sector of private pools. Thanks to the incorporation of a powerful block of lithium-ion cells with a net capacity of 7.5 ah, this wireless robot is able to provide a continuous operating time of up to 6 hoursIn optimal conditions (for example, in programs focused exclusively on the floor of clean GRESITE pools). By radically eliminating the floating electrical cords, the team enjoys an absolute agility and freedom of movement, which allows it to move with ease all over the surface of the glass at a constant speed of 10 to 12 meters per minute.

The accuracy in navigation is governed by the advanced patented algorithm of Intelligent 3D scanning, which coordinates a mathematical reading of the environment to structure ordered and symmetrical past. The robot integrates a sophisticated set of sensors that optimize its behavior in real time: 2 front infrared sensors in charge of anticipating obstacles and delimiting changes from plane, and 2 Electronic Sensors "Out of Water"They prevent the cleaner from continuing to suck or advance short if it is accidentally from the water. Its motive system is coupled to a high-friction trail with high density PVC brushes that activate dirt on background, walls and flotation line.

The cleaning flow is driven by a variable flow pump that generates an excellent suction power of 12 to 18 m³ / h, Deriving the particles withheld towards a large-volume filter basket with capacity for 3.2 liters. This basket incorporates a 180 micron filtration mesh as standard, existing the option of coupling a 120 microns ultra-thin cartridge for retaining powder or microscopic pollen. To resolve the extraction of the robot after its task is completed, the Inverx N60 incorporates technology Auto park: When the battery drops to the 15% critical threshold, the robot interrupts the cycle in a controlled way, is directed to the nearest wall and stops firmly next to it, facilitating that the operator can easily hear through the extraction hook Universal included as standard.

Frequently asked questions and robot management

Do you need assistance for the hydraulic design of your pool?

On https://tualmacendelclima.com/en/ we are specialist engineers in air conditioning, Aerothermia, Hydraulics and Automation for residential and collective bath environments. If you want to resolve specific queries about the 120 micron fine retaining optional cartridges, lithium battery management or check the suitability of the Inverx range for your vessel, our technical engineering department is at your entire disposal.
