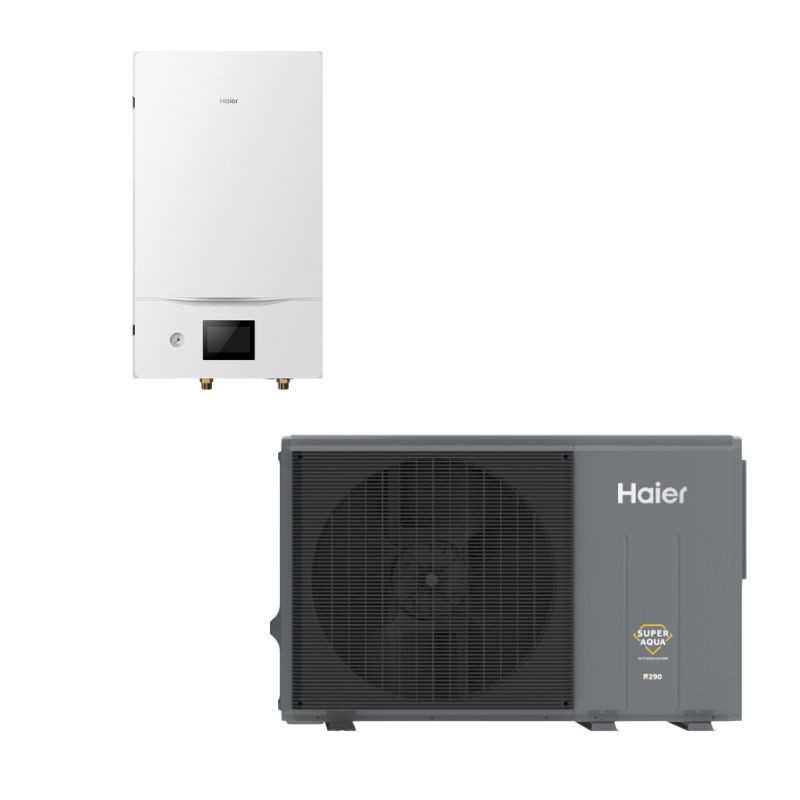

Aerotermia Haier AW142HVGHA Hydro Split 14KW R290 single-phase
14 kW Heating | COP 4.95 | Scop 4,80 A +++ | Refrigerant Gas Natural R290 | Reversible | Up to 80 ° C
The Aerotermia Haier AW142HVGHA Hydro Split offers 14 kW of heat capacity with COP 4.95 and Energy rating A +++ (SCOP 4.80). Operate Ecological refrigerant R290 (1.05 kg / 3,15t co2eq). System reversible providing 12 KW refrigeration (EER 3.20). Reaches Water temperatures up to 80 ° C for heating and DHW. Compressor DC Inverter Twin Rotary of maximum efficiency. Outdoor Unit 880 × 1250 × 460 mm (114 kg) interior 850 × 480 × 310 mm (37 kg). Includes 8L expansion deposit and auxiliary electric heater 2 + 4 kW. Hydraulic connection, control of 2 zones, compatible with Smart Grid, Solar control, Modbus and heating of swimming pools. Operating range -25 ° C at 35 ° C in heating. Perfect for large chalets, boutique hotels or commercial buildings with maximum air conditioning needs and DHW.
Discover the definitive solution for efficient air conditioning in https://tualmacendelclima.com/en/
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Haier AW142HVGHA Hydro Split 14KW R290 single-phase
Referencia: AW142HVGHAHS
€5,506.82
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
¡¡MÓDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Aerotermia Haier AW142HVGHA Hydro Split 14KW R290 single-phase
14 kW Heating | COP 4.95 | Scop 4,80 A +++ | Refrigerant Gas Natural R290 | Reversible | Up to 80 ° C
The Aerotermia Haier AW142HVGHA Hydro Split offers 14 kW of heat capacity with COP 4.95 and Energy rating A +++ (SCOP 4.80). Operate Ecological refrigerant R290 (1.05 kg / 3,15t co2eq). System reversible providing 12 KW refrigeration (EER 3.20). Reaches Water temperatures up to 80 ° C for heating and DHW. Compressor DC Inverter Twin Rotary of maximum efficiency. Outdoor Unit 880 × 1250 × 460 mm (114 kg) interior 850 × 480 × 310 mm (37 kg). Includes 8L expansion deposit and auxiliary electric heater 2 + 4 kW. Hydraulic connection, control of 2 zones, compatible with Smart Grid, Solar control, Modbus and heating of swimming pools. Operating range -25 ° C at 35 ° C in heating. Perfect for large chalets, boutique hotels or commercial buildings with maximum air conditioning needs and DHW.
Discover the definitive solution for efficient air conditioning in https://tualmacendelclima.com/en/
Security policy
Delivery policy
Refund policy
The Haier AW142HVGHA Hydro SplitRepresents the high power solution with14 kW of heat capacity and COP 4.95For large chalets, small hotels and commercial buildings up to 400 m². Withnatural coolant R290 (1.05 kg / gwp 3), reduces the environmental impact at 99.85% compared to R410A. Reachestemperatures up to 80 ° CIdeal for installations with old radiators, multiple heating circuits and high production of DHW. SCOP 4.80 (A +++ / 189% efficiency)It guarantees superior energy savings even with high power. Refrigeration Mode12 kW with EER 3.20. CompressorInverter DC Twin RotaryModula continuously optimizing performance.

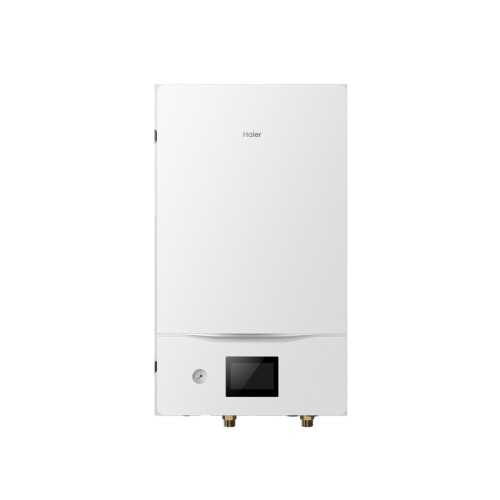

Indoor Unit HU162WAHYA (B) of greater capacityIntegra Full Professional Hydraulic System: Surface Stainless Steel Plaque Exchanger, Electronic Circulator Class A With Advanced Modulation, Expansion Protection 8L, Valve Safety, Automatic Blower and Valve 3 Way. Reinforced auxiliary heater2 + 4 kW in 2 stepsGuarantees production DHW even in extreme conditionsAdvanced independent dual controlManage multiple heating / cooling zones + DHW with configurable priorities and intelligent management of demandsProgrammable Climatic CurvesOptimize temperature according to outdoor reducing consumption up to 25%. CompatibleSmart Grid, Photovoltaic Solar Control, Modbus RTU, Pool HeatingAnd automatic heat / cold mode. Functions Anti-Egg, Adaptive Smart Defrost and Antifreeze Protection.

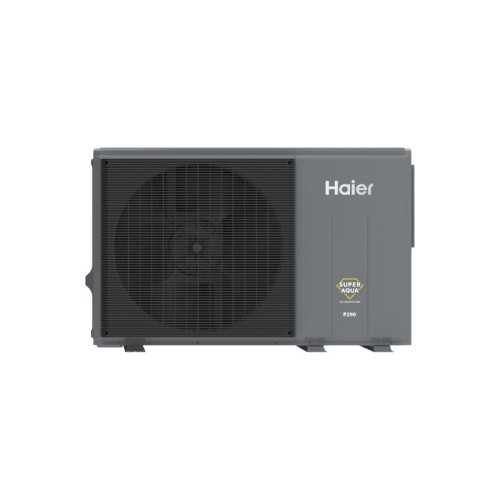

Outdoor Unit reinforced 880 × 1250 × 460 mm (114 kg)With axial fan of high capacity and53 dB (A)Sound level controlled for high power. PREMIUM GOLD-END anticorrosion treatment for coastal or aggressive coastal environments. Hydraulic connections R 1 "facilitate professional integration. Monophasic power220-240V with current 30.6 and circuit breaker 32a. Efficiently operate-25 ° C at 35 ° C in heatingAnd up48 ° C in refrigeration. The AW142HVGHA combines maximum power 14 kW, efficiency A +++, R290 sustainability and professional intelligent control for large residential facilities, small hotels, corporate offices and commercial applications with maximum air conditioning demands and DHW continuous.
Main features
⚡ All-in-one
14KW Heating / Refrigeration + DHW 200L with integrated deposit
🏆 Efficiency at +++ / A +++
SCOP 5.10 - Maximum certified energy savings
🔇 Silent 40db
Ultra silent operation for maximum acoustic comfort
🌿 Refrigerant Gas R290
Ecological Technology GWP 3, maximum environmental respect
🌡️ DHW up to 80 ° C
High temperature sanitary hot water in 200L deposit
❄️ Extreme rank
Guaranteed operation from -25 ° C up to + 48 ° C
Technical specifications
Main benefits
✓ All-in-one system
Heating, cooling and DHW 200L in a single installation
✓ Maximum efficiency at +++
SCOP 5.10 and COP 5.50 for minimum energy consumption
✓ Ecological R290 technology
Refrigerant Gas natural with GWP 3, zero environmental impact
✓ DHW High temperature
Hot water up to 80 ° C in stainless steel tank
Main applications
🏠 Single-family homes
Up to 180m² all-in-one
🏢 Apartments
Integrated compact solution
🏠 Rural houses
Total comfort in rural setting
🏡 Small villas
Full air conditioning
Why choose the Haier Hydro Split 14kw?
The Haier Hydro Split 14KW is the perfect choice for those who need a powerful and efficient system for air conditioning and DHW in large spaces. With high energy efficiency and an ecological refrigerant, this model offers exceptional performance throughout the year.
5.10
SCOP40db
Ultra silent200l
DHW Integrated80 ° C
High temperatureGet your Haier Hydro Split 14kw!
All-in-one system with maximum energy efficiency A +++. Heating, cooling and DHW 200L in a single ecological installation.
✓ SCOP 5.10 Certificate
✓ R290 Ecological GWP 3
✓ DHW 200L Up to 80 ° C
✓ Official guarantee Haier
AW142HVGHAHS
Data sheet
- Brand
- Haier
- Indoor Unit
- Hu162wahya (b)
- Outdoor Unit
- Aw142hvgha
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R290
- Electrical supply
- Monofásica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 12.000
- Nominal consumption Cold (W)
- 3.750
- Heat capacity (W)
- 14.000
- Nominal heat consumption (W)
- 2.830
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 4,95
- Scop (warm weather)
- 4,80
- EER
- 3,20
- Interconnection type
- Conexión Hidraulica
- Energy rating
- Calificación Energética
- Maximum heating (ºC)
- 80
- WiFi
- Opcional
- High Ud. Interior (mm)
- 850
- Width UD Interior (mm)
- 480
- Ud interior background (mm)
- 310
- Weight (kg)
- 37
- High Ud Exterior (mm)
- 880
- Width UD Exterior (mm)
- 1.250
- Outdoor background (mm)
- 460
- Weight Outside (kg)
- 114
