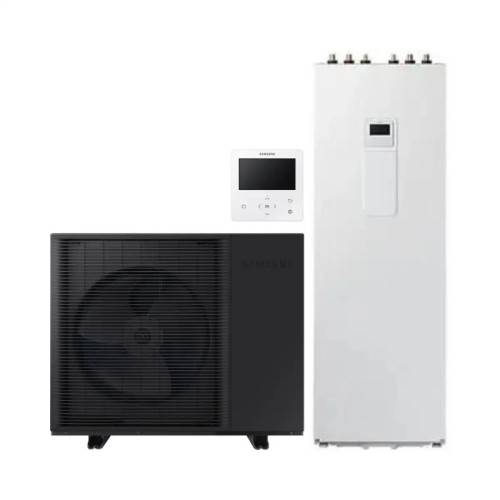

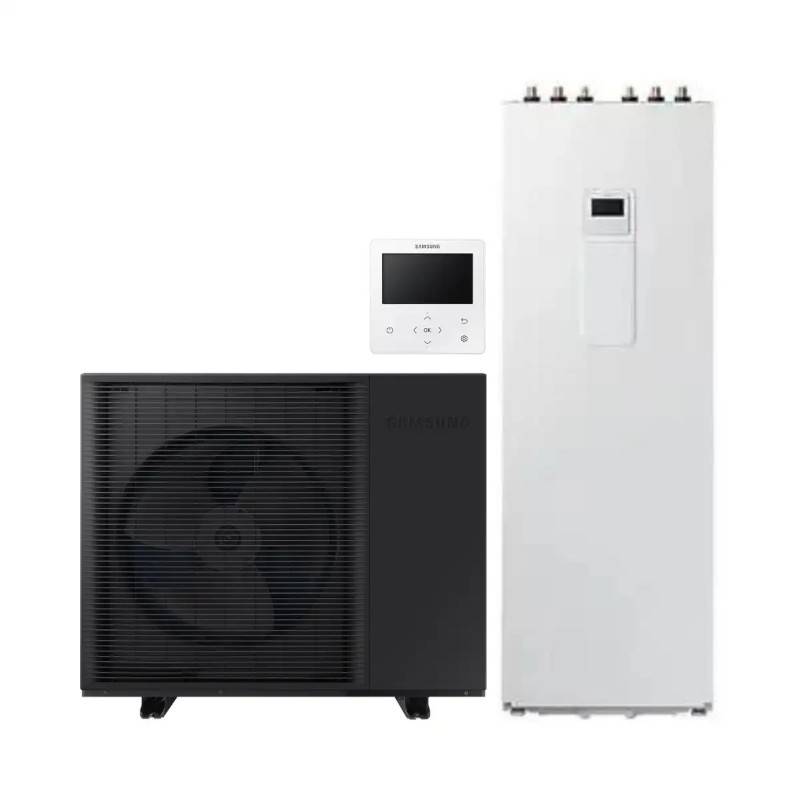

Samsung EHS Mono R290 AE160CXYDEK / EU + AE200DNWMPK / EU Allinone
16 kW Heating | COP 4,51 | SCOP A +++ | 200L deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Mono R290 Allinone of 16 kW reaches COP 4,51 with Energy rating A +++ and SCOP 4.70. System reversible with 14 kW of refrigeration capacity (EER 3.80). Compact all-in-one format with core charge DHW 200l. Operate Natural coolant R290 (1.6 kg / 4,8t co2eq) of minimum impact. Reaches Temperatures up to 75 ° C. High capacity scroll compressor. Single-phase feed 1Ï, 220-240V, 50 Hz. Nominal consumption 3.550W in heating. Outdoor Unit 1248 Ă 950 Ă 460 mm (140 kg) interior 1795 Ă 598 Ă 317 mm (132-142 kg). Includes Electrical resistance 6 kW, Expansion Glass 10L air conditioning, magnetic gauge filter. WiFi control, silent mode 3 steps, photovoltaic apt, control 2 zones. Profile L, Efficiency DHW 263% (A +). Sound pressure 28/30 dB (A). Ideal for large homes, commercial premises or small industrial facilities that require maximum power with ecological refrigerant.
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Samsung EHS Mono R290 AE160CXYDEK / EU + AE200DNWMPK / EU Heat Pump Allinone
Referencia: AE160CXYDEK_AE200DNWMPK
âŹ10,169.76
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Samsung EHS Mono R290 AE160CXYDEK / EU + AE200DNWMPK / EU Allinone
16 kW Heating | COP 4,51 | SCOP A +++ | 200L deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Mono R290 Allinone of 16 kW reaches COP 4,51 with Energy rating A +++ and SCOP 4.70. System reversible with 14 kW of refrigeration capacity (EER 3.80). Compact all-in-one format with core charge DHW 200l. Operate Natural coolant R290 (1.6 kg / 4,8t co2eq) of minimum impact. Reaches Temperatures up to 75 ° C. High capacity scroll compressor. Single-phase feed 1Ï, 220-240V, 50 Hz. Nominal consumption 3.550W in heating. Outdoor Unit 1248 Ă 950 Ă 460 mm (140 kg) interior 1795 Ă 598 Ă 317 mm (132-142 kg). Includes Electrical resistance 6 kW, Expansion Glass 10L air conditioning, magnetic gauge filter. WiFi control, silent mode 3 steps, photovoltaic apt, control 2 zones. Profile L, Efficiency DHW 263% (A +). Sound pressure 28/30 dB (A). Ideal for large homes, commercial premises or small industrial facilities that require maximum power with ecological refrigerant.
Security policy
Delivery policy
Refund policy
The Samsung EHS R290 16kW AllInOne (AE160CXYDEK / EU + AE200DNWMPK / EU) is an efficient solution for heating, refrigeration and sanitary hot water (DHW) In larger homes. This monoblock system without bomb integrates direct hydraulic connection with the indoor Unit Climatehub, which includes a deposit of 200 litres DHW.
This system is distinguished by its energy rating A+++/A++ and one 4.80 scop, which provides excellent energy saving. Use the refrigerant R290 Natural (propane), with a GWP of only 3, which makes it the most ecological option in the market. The climatehub includes 10L expansion cup, electrical resistance, circulating pumps, magnetic filter and safety valves.
The outdoor Unit Ae160cxydek / EU has some dimensions 998 x 850 x 500 mm and a weight of 86 kg. La indoor Unit Ae200dnwmpk / EU measures 598 x 1850 x 600 mm and weigh between 132 and 142 kg. This system can operate at extreme heating temperatures between -25°C to +35°C and refrigeration between 10°C to +46°C, producing hot water up 75 ° C.
Main features
⥠Allinone system complete
16KW Heating / cooling with ClimateHub and deposit DHW 200L integrated
đ Efficiency A +++ / A ++
SCOP 4.80 - Superior energy savings
đż Refrigerant Gas R290 natural
Natural propane with GWP 3 - zero environmental impact
đ§ ClimateHub Integrated
Expansion glass, valves, pumps and filter included - Installation in a day
đĄïž DHW up to 75 ° C
High temperature sanitary hot water in 200L deposit
âïž Extreme range -25 ° C
Funcionamiento garantizado en condiciones extremas
Technical specifications
Main benefits
â Full Allinone system
ClimateHub with expansion cup, pumps, valves and integrated 200L deposit
â Simplified installation
Hydraulic components pre-installed in ClimateHub - Mounting in a day
â Maximum efficiency at +++
SCOP 4.80 for minimum consumption and maximum savings
â Ecological R290
Refrigerant Gas natural GWP 3 - Environmental Engagement
Get your Samsung EHS Mono R290 16kw Allinone!
The most efficient and ecological Allinone solution of the market for large housing. Climatehub with integrated components and 200L deposit. Natural R290 technology for maximum environmental respect.
â Scop 4.80 Certificate
â R290 GWP 3
â DHW 200L Included
â Official guarantee Samsung
AE160CXYDEK_AE200DNWMPK
Data sheet
- Brand
- Samsung

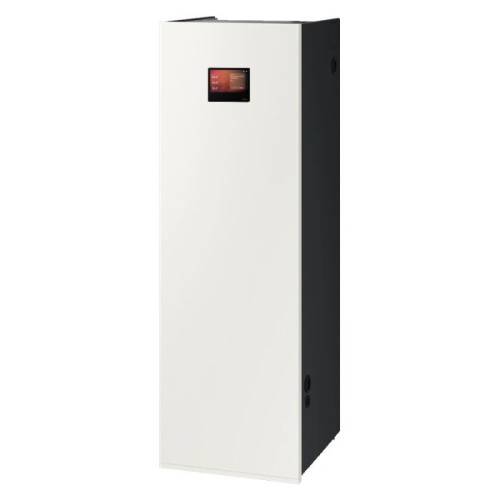

- Indoor Unit
- Ae200dnwmpk / EU

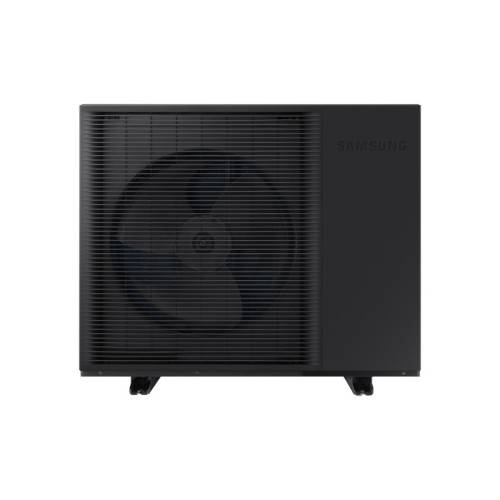

- Outdoor Unit
- Ae160cxydek / EU
- Accumulator DHW
- Incluido Formato AllInOne (200L)
- Refrigerant Gas
- R290
- Electrical supply
- MonofĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 14.000
- Nominal consumption Cold (W)
- 3.680
- Heat capacity (W)
- 16.000
- Nominal heat consumption (W)
- 3.550
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 4,51
- EER
- 3,80
- Interconnection type
- ConexiĂłn Hidraulica
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 75
- WiFi
- Opcional
- High Ud. Interior (mm)
- 1.850
- Width UD Interior (mm)
- 598
- Ud interior background (mm)
- 600
- Weight (kg)
- 142
- High Ud Exterior (mm)
- 1.018
- Width UD Exterior (mm)
- 1.270
- Outdoor background (mm)
- 530
- Weight Outside (kg)
- 140
