    Aerotermia Samsung EHS Mono Standard AE120RXYDEG / EU + AE200DNWMPK / EU Heat Pump R32 single-phase

    ÂżAny doubt about the product?

    Talk to us and consult us. We will solve all your doubts

    Aerotermia Samsung EHS Mono Standard AE120RXYDGG / EU + AE200DNWMPK / EU Heat Pump R32 three-phase

    Referencia: AE120RXYDGG/AE200DNWMPK
    Samsung
    €8,844.52
    Tax included

     We are currently out of stock.

    Ask us about availability!!

    EnvĂ­o GRATIS en España (PenĂ­nsula) a partir de 300€ + info

    Quantity
    Add to Wishlist

    Email has been sent successfully.

    E-Mail Support
    Calcular Gastos de EnvĂ­o
    đŸ›Ąïž Pago Seguro ✅ GarantĂ­a Oficial

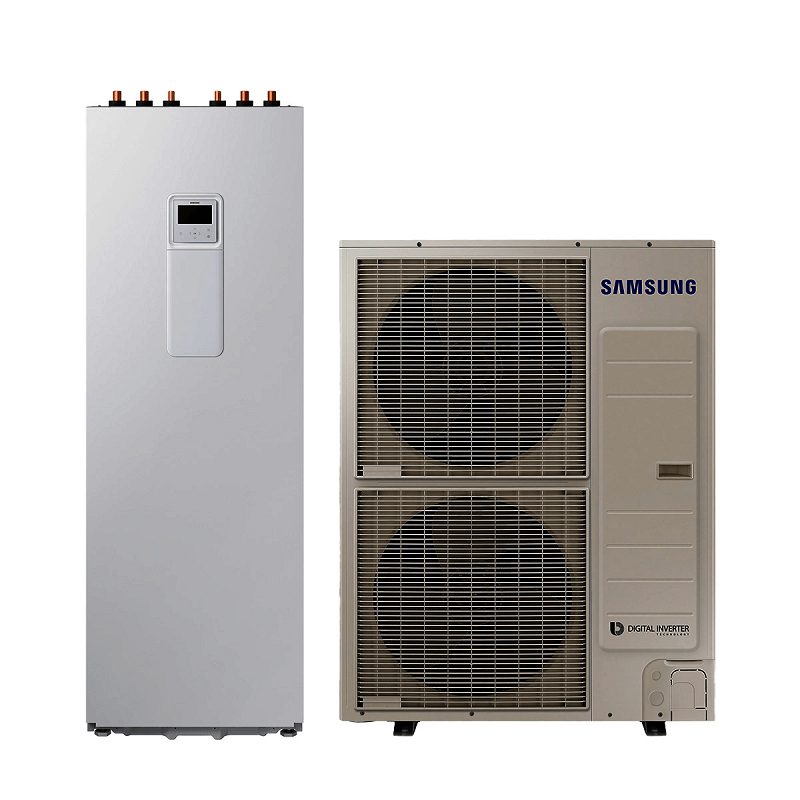

    Samsung EHS Mono Standard AE120RXYDGG / EU + AE200DNWMPK / EU R32 Three-phase Allinone

    12 kW Heating | COP 4,53 | SCOP A +++ | 200L deposit | R32 | Three-phase 380-415V | 65 ° C.

    The Samsung EHS Standard Mono R32 Three-phase Allinone of 12 kW develops COP 4,53 with Energy rating A +++. System reversible with 12 kW of refrigeration capacity (EER 4.33). All-in-one format with core charge DHW 200l. Operate R32 coolant (2.23 kg / 1,48t co2eq). Reaches Temperatures up to 65 ° C. Compressor BLDC Scrolla Three-phase High-power Three-phase feed 3φ, 380-415V, 50 Hz For professional facilities. Nominal consumption Heating 2.650w. Outdoor Unit 940 × 1420 × 330 mm (141.2 kg) interior 1795 × 598 × 317 mm (132-142 kg). Includes Electrical resistance 6 kW, Expansion Glass 10L air conditioning, magnetic gauge filter. WiFi control, silent mode 3 steps, photovoltaic apt, control 2 zones. Profile L, Efficiency DHW 263% (A +). Sound pressure 35/45 dB (A). Perfect for medium stores, hotels or buildings that require three-phase power with low GWP refrigerant in compact format.

    Contact by Whatsapp
    Contact by e-mail


    Security policy



    Delivery policy



    Refund policy

    Samsung EHS Standard Monkey R32 12KW Three-phase Allinone

    Model AE120RXYDGG / EU + AE200DNWMPK / EU - Aerotermia with DHW 200L

    12kW Power A+++/A++ Scop 4.90 R32 efficient Three-phase No

    The Samsung EHS Standard Monkey R32 12KW Three-phase Allinone (AE120RXYDGG / EU + AE200DNWMPK / EU) is the high-power solution for heating, refrigeration and sanitary hot water in housing up to 180mÂČ. This monoblock system without bomb integrates three-phase direct hydraulic connection with the indoor Unit ClimateHub including deposit 200 litres DHW.

    Highlights for its exceptional energy rating A+++/A+ with a SCOP of 4.90 and one COP of 4.80, guaranteeing superior energy savings. Use the refrigerant R32 with a GWP of 675, significantly reducing the environmental impact. The climatehub incorporates 10L expansion vessel, 6KW electrical resistance, circulating pumps, magnetic filter and all necessary safety valves.

    The outdoor Unit Ae120rxydgg / EU measures 1270 x 1018 x 530 mm and weighs 140 kg, while the indoor Unit Climatehub Ae200dnwmpk / EU measures 598 x 1850 x 600 mm with a weight of 132-142 kg. Operates at extreme temperatures from -25 ° C up to + 35 ° C in heating and of 10 ° C A + 46 ° C in refrigeration, producing hot water up 75 ° C.

    Main features

    ⚡ High power 12kw

    Allinone system for large housing up to 180mÂČ

    🏆 Efficiency A +++ / A ++

    SCOP 4.90 and COP 4.80 - Maximum energy saving

    🌿 Refrigerant Gas R32

    GWP 675 - 67% less environmental impact

    🔧 ClimateHub Integrated

    Vaso expansion, valves, pumps, filter and resistance 6kW

    đŸŒĄïž DHW up to 75 ° C

    High temperature sanitary hot water in 200L deposit

    ❄ Extreme range -25 ° C

    Funcionamiento garantizado en condiciones extremas

    Technical specifications

    SpecificationValue
    External modelAE120RXYDGG/EU (without pump)
    Interior model ClimatehubAe200dnwmpk / EU
    Power Heating (KW)12.0 (A7 / W35) / 11.3 (A7 / w55)
    Refrigeration Power (KW)12.0 (A35 / w18)
    Heating consumption (KW)2.50 (A7/W35) - 4.0 (A7/W55)
    Refrigeration consumption (KW)3.00 (A35 / W18)
    COP / SCOP4.80 / 4.90
    EER4.00
    Energy labelTo +++ To ++
    Core charge DHW200 liters included in Climatehub
    Water temperature15-75 ° C Heating / 5-25 ° C Refrigeration
    Exterior sound level47dB(A) pressure / 60dB(A) power
    Indoor sound level28-30dB(A) pressure / 42-44dB(A) power
    External dimensions (mm)1270 x 1018 x 530 (140 kg)
    Dimensions inner (mm)598 x 1850 x 600 (132-142 kg)
    Refrigerant GasR32 (2.20 kg) - GWP 675
    Feed380-415V / 3PH / 50Hz
    Maximum current (MCA)16.1a
    Range Operation-25 ° C A + 35 ° C Heat / 10 ° C A + 46 ° C Cold
    Hydraulic connectionBSPP male 1 "Entry / Exit
    Type of systemBombless - Three-phase hydraulic connection
    Water flow34.6 l / min (nominal)
    Electrical resistance6KW integrated in Climatehub

    Main benefits

    ✓ High power 12kw

    Ideal for large homes up to 180mÂČ

    ✓ Full Allinone system

    Climatehub with all integrated components

    ✓ Maximum efficiency at +++

    Scop 4.90 for minimum consumption

    ✓ Quick installation

    Complete assembly in a single day

    Main applications

    🏠 Large homes

    Up to 180mÂČ - High power

    🏱 Villas

    Three-phase

    🏡 Comprehensive reforms

    Substitution Old Systems

    đŸŒ± Efficient buildings

    Sustainable Constructions

    Why choose the Samsung EHS Mono R32 12KW threekw?

    This high power system represents the definitive solution for large homes with three-phase connection. The climatehub integrates all necessary hydraulic components, including 6KW electrical resistance for support in extreme conditions. Its technology R32 combines power and efficiency with environmental respect.

    4.90
    SCOP
    GWP 675
    R32
    200l
    DHW
    12kw
    Power

    Why choose Samsung EHS Mono R32 12KW Three-phase Allinone?

    • ✓ High power 12kw ideal for large homes up to 180mÂČ
    • ✓ Refrigerant Gas R32 efficient with GWP 675
    • ✓ Maximum efficiency at +++ with COP 4.80 and SCOP 4.90
    • ✓ Allinone format with integrated 200L deposit
    • ✓ Temperatures up to 75 ° C (Compatible with radiators)
    • ✓ Reversible system heating + Refrigeration
    • ✓ 6KW electrical resistance integrated support
    • ✓ Wifi control with SMARTTHINGS APP included
    • ✓ Compatible with photovoltaic Smart grid
    • ✓ Simplified installation - all in one
    • ✓ Warranty Samsung - 5 years compressor

    Get your Samsung EHS Mono R32 12KW threekw!

    The high-power Allinone solution for large homes with three-phase connection. Climatehub with integrated components and 200L deposit. Technology R32 for maximum energy savings and environmental respect.

    ✓ Scop 4.90 Certificate
    ✓ 12kw power
    ✓ DHW 200L Included
    ✓ Official guarantee Samsung
    AE120RXYDGG/AE200DNWMPK

    Data sheet

    Brand
    Samsung
    Indoor Unit
    Ae200dnwmpk / EU
    Outdoor Unit
    Ae120rxydgg / EU
    Accumulator DHW
    Incluido Formato AllInOne (200L)
    Refrigerant Gas
    R32
    Electrical supply
    TrifĂĄsica
    Reversible or only heat
    Reversible
    Refrigerator capacity (W)
    12.000
    Nominal consumption Cold (W)
    2.770
    Heat capacity (W)
    12.000
    Nominal heat consumption (W)
    2.650
    Diameter Liquid pipe
    Hydraulic connection
    Diameter Gas Pipe
    Hydraulic connection
    COP
    4,53
    EER
    4,31
    Interconnection type
    ConexiĂłn Hidraulica
    Energy rating
    To +++
    Maximum heating (ÂșC)
    65
    WiFi
    Opcional
    High Ud. Interior (mm)
    1.850
    Width UD Interior (mm)
    598
    Ud interior background (mm)
    600
    Weight (kg)
    142
    High Ud Exterior (mm)
    1.420
    Width UD Exterior (mm)
    940
    Outdoor background (mm)
    330
    Weight Outside (kg)
    110
