Indoor Unit Wall Panasonic (Cs-tz20ckew)

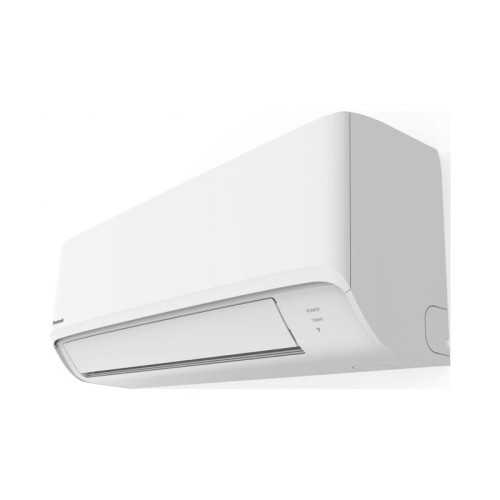

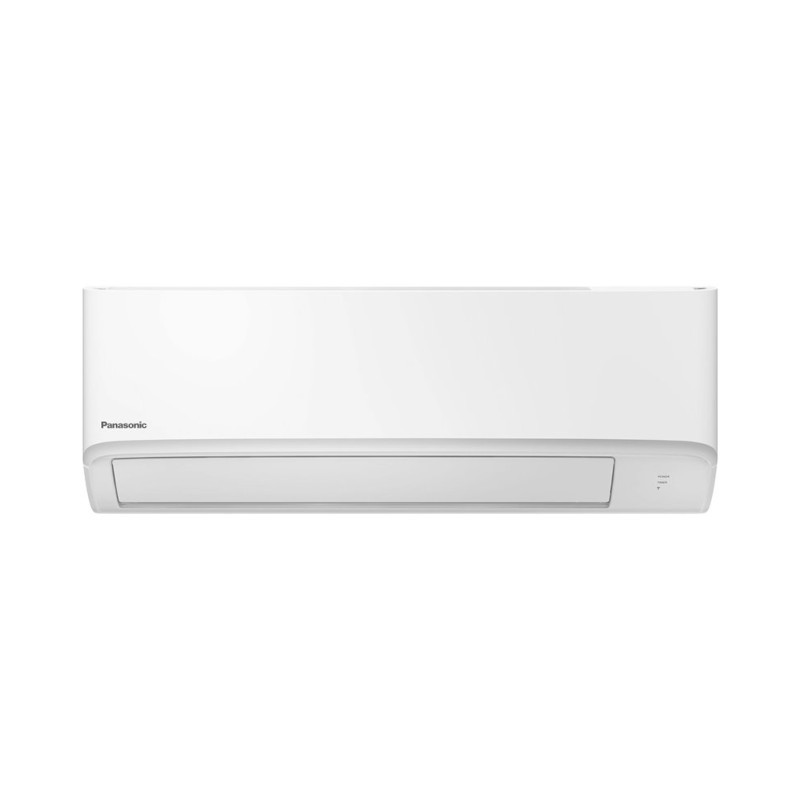

The Panasonic Cs-tz20ckew It stands out for its ultra-compact and efficient design, ideal for climate to small stays with minimal consumption. With 2.0 kW of power, this equipment guarantees superior thermal comfort in a discrete format. Note: Exclusive product of indoor Unit; requires outdoor Unit Multi Split compatible for its operation.
- 📏 Ultra-compact design: Reduced dimensions for discrete installations.
- ⚡ TZ efficiency: Optimized performance in small format.
- 📱 Connectivity: Compatible with optional wall control.
Technical model: CS-TZ20CKEW | Cold nominal capacity: 2.0 kW
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Indoor Unit Panasonic Multi Split CS-TZ20CKEW
Referencia: CS-TZ20CKEW
€313.67
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Due to possible stock libraries from indoor and outdoor units, the sale of single interior units will not be allowed, only together with multi outdoor
SOLO UNIDAD INTERIOR- NECESITA UNIDAD EXTERIOR
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Indoor Unit Wall Panasonic (Cs-tz20ckew)
The Panasonic Cs-tz20ckew It stands out for its ultra-compact and efficient design, ideal for climate to small stays with minimal consumption. With 2.0 kW of power, this equipment guarantees superior thermal comfort in a discrete format. Note: Exclusive product of indoor Unit; requires outdoor Unit Multi Split compatible for its operation.
- 📏 Ultra-compact design: Reduced dimensions for discrete installations.
- ⚡ TZ efficiency: Optimized performance in small format.
- 📱 Connectivity: Compatible with optional wall control.
Technical model: CS-TZ20CKEW | Cold nominal capacity: 2.0 kW
Security policy
Delivery policy
Refund policy
Panasonic CS-TZ20CKEW: Ultra-compact TZ range
High efficiency technical solution for multi split systems
Precision engineering in reduced format
Unit Panasonic Cs-tz20ckew It represents the vanguard in ultra-compact design within the domestic range. Designed specifically to be integrated into systems Free Multi, this indoor Unit Wall stands out for its optimized chassis of 290 mm high, allowing discrete facilities without sacrificing nominal thermal performance.
This team has been developed to offer constant air conditioning, with a refrigerated nominal capacity of 2,00 kW and a calorific nominal capacity of 3,20 kW. Energy management is done through a single-phase feeding with centralized electrical connection in the outdoor Unit, simplifying the technical installation.
Comprehensive data sheet (CS-TZ20CKEW)
| Frigor nominal capacity | 2,00 kW |
| Nominal calorific capacity | 3,20 kW |
| Dimensions (x an x PR) | 290 x 765 x 214 mm |
| Net weight | 8 kg |
| Diameter Pipes (Liquid / Gas) | 1/4 "(6.35 mm) / 3/8" (9.52 mm) |
| Electrical connection int./ext. | 4 x 1.5 mm² |
Compatibility and control

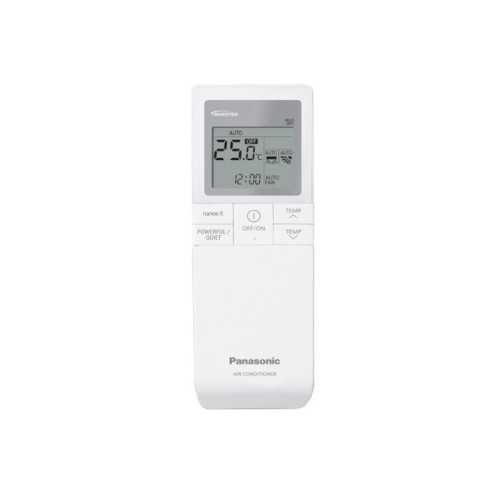

The unit is designed to operate within multi-split configurations, being compatible with the outer units of the range Multi tz, such as the Cu-2tz41tbe, Cu-2tz50tbe and Cu-3tz52tbe. Control of the unit is managed by the optional knob Cz-rd517c.
Do you need advanced technical support?
As specialists in multi-split systems, we can help you calculate the compatibility of this CS-TZ20CKEW unit with its outdoor Unit Selected and verify the requirements of gas preload and allowed pipe lengths.
Professional technical consultancy CS-TZ20CKEW
Data sheet
- Brand
- Panasonic
- Color
- Blanco
- Refrigerant Gas
- R32
- Recommended area (M2)
- Estancia de 12 a 18 m2
- Refrigerator capacity (W)
- 2.000
- Refrigerator capacity (kcal / h)
- 1.720
- Heat capacity (W)
- 2.700
- Heat capacity (Kcal / h)
- 2.322
- Minimum sound pressure UI DB
- 20
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Integrated WiFi
- Dimensions (an x F x h) mm
- Weight (kg)
- 8,0
