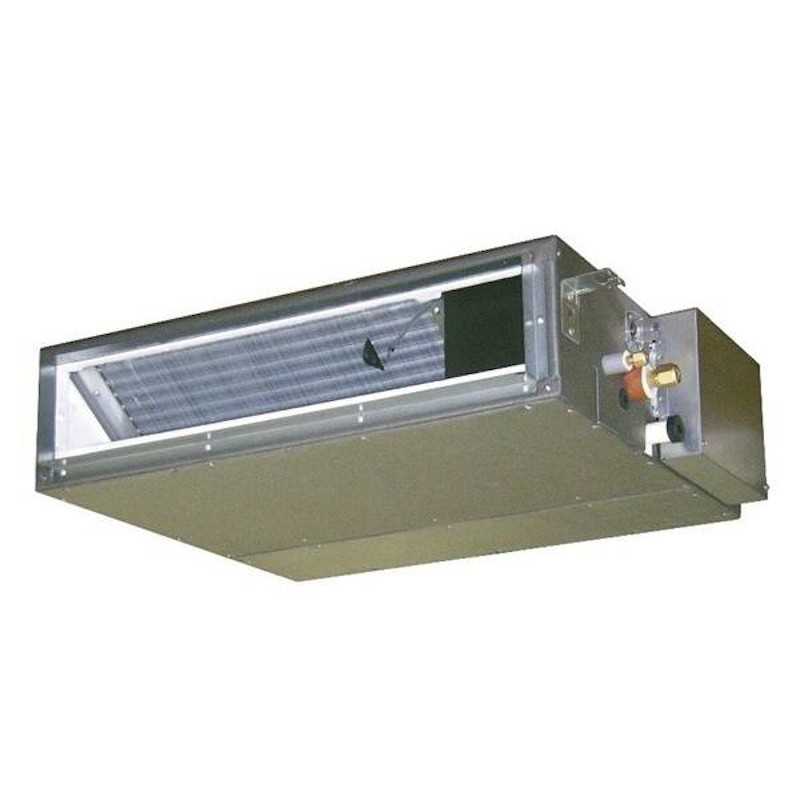

Indoor Unit Ducts Panasonic (Cs-z50ud3eaw)
The Panasonic Cs-z50ud3eaw It is a solution of conduits of low static pressure and ultra low profile. With a height of just 200 mm, allows an invisible and elegant integration, optimized for systems Free Multi. Note: Exclusive product of indoor Unit; requires outdoor Unit Multi Split compatible for its operation.
- 📏 Low profile: Only 200 mm of total height.
- 💧 Drain pump: Included as standard for flexible installation.
- ⚡ Nominal capacity: 5.00 kW (cold) / 5.60 kW (heat).
Technical model: Cs-z50ud3eaw | Dimensions: 200 x 1000 x 640 mm
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Indoor Unit Panasonic Multi CS-Z50UD3eaw Low Silhouette Conduct
Referencia: MCS-Z50CD3EAW
€770.56
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Due to possible stock libraries from indoor and outdoor units, the sale of single interior units will not be allowed, only together with multi outdoor
SOLO UNIDAD INTERIOR- NECESITA UNIDAD EXTERIOR
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Indoor Unit Ducts Panasonic (Cs-z50ud3eaw)
The Panasonic Cs-z50ud3eaw It is a solution of conduits of low static pressure and ultra low profile. With a height of just 200 mm, allows an invisible and elegant integration, optimized for systems Free Multi. Note: Exclusive product of indoor Unit; requires outdoor Unit Multi Split compatible for its operation.
- 📏 Low profile: Only 200 mm of total height.
- 💧 Drain pump: Included as standard for flexible installation.
- ⚡ Nominal capacity: 5.00 kW (cold) / 5.60 kW (heat).
Technical model: Cs-z50ud3eaw | Dimensions: 200 x 1000 x 640 mm
Security policy
Delivery policy
Refund policy
Panasonic CS-Z50UD3EAW: Low Silhouette Conduct
High performance technical solution for invisible integration
Engineering for reduced spaces
The Panasonic Cs-z50ud3eaw It is the reference duct unit for installations where the height limitation in false ceiling is critical. Its design of low silhouette It guarantees that the unit is practically imperceptible after the grid, maintaining maximum thermal and sound comfort.
This equipment includes a drain pump High performance that facilitates the evacuation of condensation water, even with complicated pipe tours. It is fully compatible with the Ecosystem Multi Split of Panasonic, Providing 5.00 kW in refrigeration and 5.60 kW in heating.
Comprehensive data sheet (CS-Z50UD3AW)
| Frigor nominal capacity | 5,00 kW |
| Nominal calorific capacity | 5,60 kW |
| Dimensions (x an x PR) | 200 x 1000 x 640 mm |
| Net weight | 24 kg |
| Diameter Pipe (Liquid / Gas) | 1/4 "(6.35 mm) / 1/2" (12.70 mm) |
| Electrical connection int./ext. | 4 x 2.5 mm² |
Do you need assistance for your project?
As specialists, we can help you calculate the permitted pipe length and the refrigerant load needed for this CS-Z50UD3EAW drive in its specific multi-split configuration.
Professional technical consultancy MCS-Z50CD3EAW
Data sheet
- Brand
- Panasonic
- Refrigerant Gas
- R32
- Recommended area (M2)
- Estancia de 35 a 42 m2
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Heat capacity (W)
- 6.800
- Heat capacity (Kcal / h)
- 5.848
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi
- Dimensions (an x F x h) mm
- 750 x 640 x 200
- Weight (kg)
- 19,0
