3x1 multi split kit Samsung AJ052TXJ3KG + 2X AR60F09C1AWNEU + AR60F12C1AWNEU WINDFREE Air conditioning

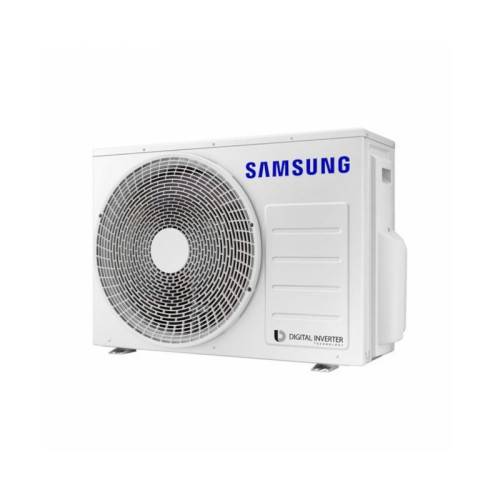

Performance of the Outdoor Unit (Aj052txj3kg)

Cooling capacity (nominal): 5,20 kW (Optimal Cold Work Range)

Capacity Heating (nominal): 6,30 kW (optimal heat work range)

Seasonal energy classification (cold): A +++ (maximum efficiency)

Seasonal energy classification (heat): A ++ (high efficiency)

Compressor technology: Digital Inverter Boost of Samsung

Protection and durability: Anti-corrosion treatment in the exchanger

Gas Refrigerant Gas operation: R32 ecological low environmental impact

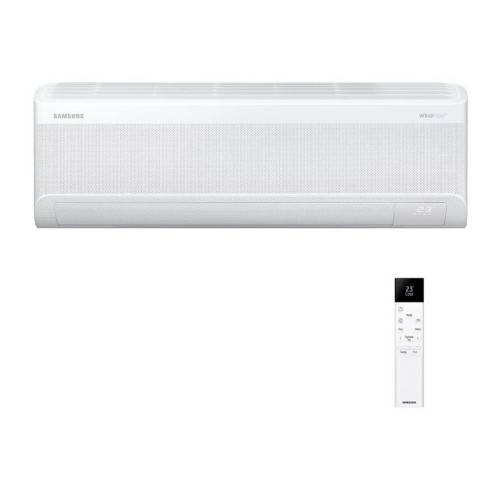

INTERIOR UNITS INCLUDED (WINDFREE COMFORT series)

Bedroom units: 2x AR09TXFCAWKNEU (2.50 KW cold / 3,20 kW heat each)

Unit for room / main: 1x AR12TXFCAWKNEU (3.50 KW cold / 4,00 kW heat)

Diffusion technology: Windfree by thousands of micro-buildings

Minimum sound pressure (silent mode): Optimized ultrasilence level

Air filtering: High density filter to retain dust particles

Diameter of refrigerated pipes (all models): Liquid 1/4 - Gas 3/8

Domotic wireless connectivity: Wi-Fi of integrated standard (SmartThings App)

✔️ Windfree technology without air currents: Enjoy a soft and pleasant freshness at home. The air is dispersed uniformly through thousands of microorifices on the front panel, completely eliminating the free cold air gusts on your skin that usually cause discomfort or dryness.

✔️ Smart Ecosystem SmartThings with integrated Wi-Fi: Control the temperature of your home from anywhere and at any time through your smartphone. The official SMARTHINGS application allows you to manage the three zones independently, monitor energy consumption and let artificial intelligence optimize the operation according to your daily habits.

✔️ Digital compressor Inverter Boost high efficiency: The technological heart of the outdoor Unit it drastically reduces light consumption. By maintaining the desired temperature constantly without sudden variations, the energy fluctuations decreases and it manages to save up to 73% electricity compared to traditional models.

✔️ Good evening mode optimized: Designed specifically to take care of the phases of your dream. This mode automatically regulates the temperature and humidity of the room, eliminating annoying currents and operational noises to ensure a deep and repairing nocturnal rest.

✔️ Easy Filter Plus Filter Easy Maintenance: Located accessible on the top of the split, it can be extracted, clean with water and replacing it easily. It has a high density mesh that keeps the heat exchanger clean and effectively retains floating dust particles from the environment.

How does Asymmetric Management work for stays with units of 2.5 kW and 3.5 kW?

Independence in the air conditioning of the three stays is total and is electronically managed by the outdoor Unit. Each of the three windfree splits has their own remote control and their own probes to measure the temperature accurately. You can program the 3.5 kW unit in the main room in cold mode during the day while the 2,5 kW units of the bedrooms remain completely off or at a gentle temperature, adapting the exterior compressor exactly to the proportional proportional expenditure deferential to avoid Unnecessary consumption of light.

Do you need to buy any optional accessory to control equipment from the mobile phone?

No, the mural units of the series Samsung Windfree incorporates the factory pre-installed wireless receiver module within the equipment's own chassis. It is not necessary to perform additional wiring or acquire external domotic catwalks. You only need to have a wireless Internet connection on the home and download the official SMARTHINGS application for free Samsung on your phone or tablet.

What are the refrigeration distances and installation limitations of this set?

The outdoor Unit AJ052TXJ3KG offers great geometric assembly versatility. It supports a maximum total length of pipes up to 50 meters by adding the three branches of the installation, with a maximum limit by individual branch of up to 25 meters. The maximum vertical rate allowed between the outdoor Unit and the indoor units is 15 meters, which greatly facilitates its placement on roofs, facades or terraces in a totally safe way.
