    Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-WZ140VAA-W 100% Hydraulica R290

    ¿Any doubt about the product?

    Talk to us and consult us. We will solve all your doubts

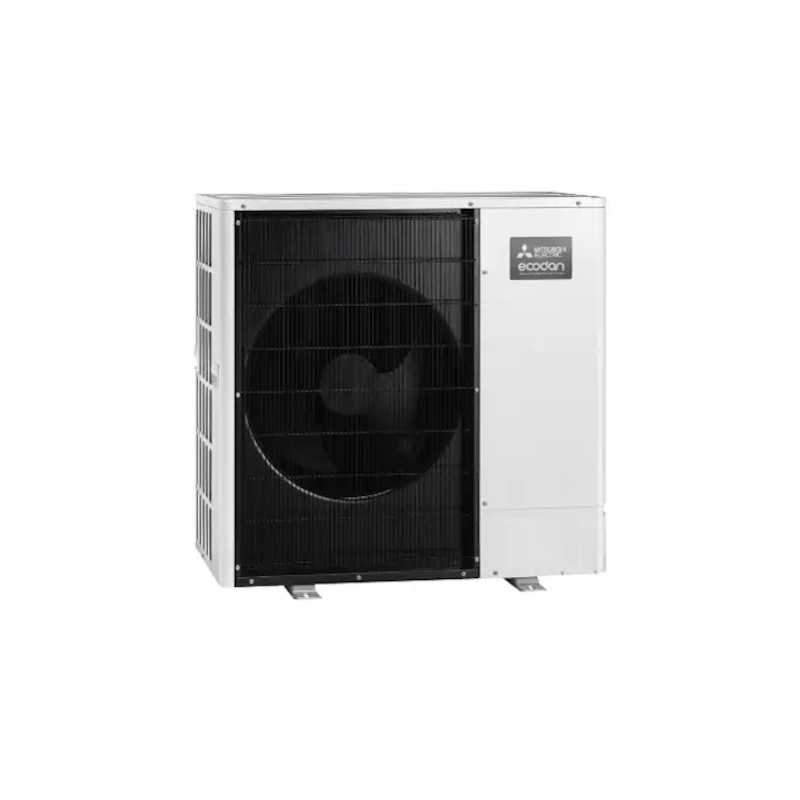

    Outdoor Unit Aerotermia Mitsubishi Ecodan Puz-WZ140VAA-W 100% Hydraulica R290

    Referencia: PUZ-WZ140VAA
    Mitsubishi Electric
    €6,275.45
    Tax included

    We are currently out of stock.

    Ask us about availability!!

    Envío GRATIS en España (Península) a partir de 300€ + info

    Quantity
    Add to Wishlist

    Email has been sent successfully.

    E-Mail Support
    Calcular Gastos de Envío
    🛡️ Pago Seguro ✅ Garantía Oficial

    Ecodan Puz-WZ140VAA R290

    Outdoor Unit Monobloc | 14kw | Refrigerant Gas Natural R290

    Unit Mitsubishi Ecodan Puz-Wz140vaa Break all barriers, offering stunning 14 kW of power in a single-phase installation. This 100% hydraulic monobloc system uses the R290 ecological refrigerant, achieving efficiency To +++ and hot water up to 75 ° C. It is the definitive solution for climate to the largest and most demanding properties in a sustainable manner.

    Contact by Whatsapp
    Contact by e-mail


    Security policy



    Delivery policy



    Refund policy

    Ecodan Puz-Wz140vaa | R290

    The maximum sustainable power for single-phase installations

    Refrigerant Gas R290 (PCA = 3) Monobloc 14kw Water up to 75 ° C

    The outdoor Unit Mitsubishi Ecodan Puz-Wz140vaa It is a feat of engineering, positioning itself as the most powerful monophasic heat pump of its kind. This 100% hydraulic monobloc system delivers a nominal power of 12 kW and maximum up to 18.3 kW, using the ecological refrigerant R290 (PCA = 3) for an almost null environmental impact[680].

    Designed for large residences, chalets or small commercial applications without access to three-phase current, this unit eliminates any power barrier. Its ability to generate Water at 75 ° C Without resistance makes it the ideal candidate for reforms of heating systems with radiators[680]. Its ultra silent design, added to an energy efficiency To +++, offers a comprehensive air conditioning solution (heating, cooling and DHW) that does not compromise comfort, or performance, nor sustainability[680].

    Technical specifications

    FeatureDetail
    Nominal heating power (A7 / W35)12.0 kw[680]
    Nominal refrigeration power (A35 / W18)9.0 kw[680]
    Energy class (35 ° C / 55 ° C)A +++ / A ++[680]
    COP (A7 / W35)4,10[680]
    Maximum drive temperature75 ° C.[680]
    Dimensions (AlxAnXF)1040 x 1050 x 480 mm[680]
    Net weight120 kg[680]
    Sound level SPL (heat / cold)53/50 dB (A)[680]
    Range of operation (heating)-25 ° C A + 24 ° C[680]
    Refrigerant Gas (PCA)R290 (3)[680]
    FeedMonophasic (230V)[680]

    Do you need maximum power without renouncing a single-phase installation?

    With 14kw power and the most advanced R290 technology, it is possible. Request a study for your project and discover the definitive solution.

    Personalized study
    PUZ-WZ140VAA

    Data sheet

    Brand
    Mitsubishi Electric
    Refrigerant Gas
    R290
    Electrical supply
    Monofásica
    Reversible or only heat
    Reversible
    Refrigerator capacity (W)
    9.000
    Nominal consumption Cold (W)
    2.857
    Heat capacity (W)
    12.000
    Nominal heat consumption (W)
    2.927
    Diameter Liquid pipe
    Hydraulic connection
    Diameter Gas Pipe
    Hydraulic connection
    COP
    4,10
    Scop (warm weather)
    5,91
    EER
    3,15
    Interconnection type
    Conexión Hidraulica
    Energy rating
    To +++
    Maximum heating (ºC)
    75
    High Ud Exterior (mm)
    1.040
    Width UD Exterior (mm)
    1.050
    Outdoor background (mm)
    480
    Weight Outside (kg)
    103
