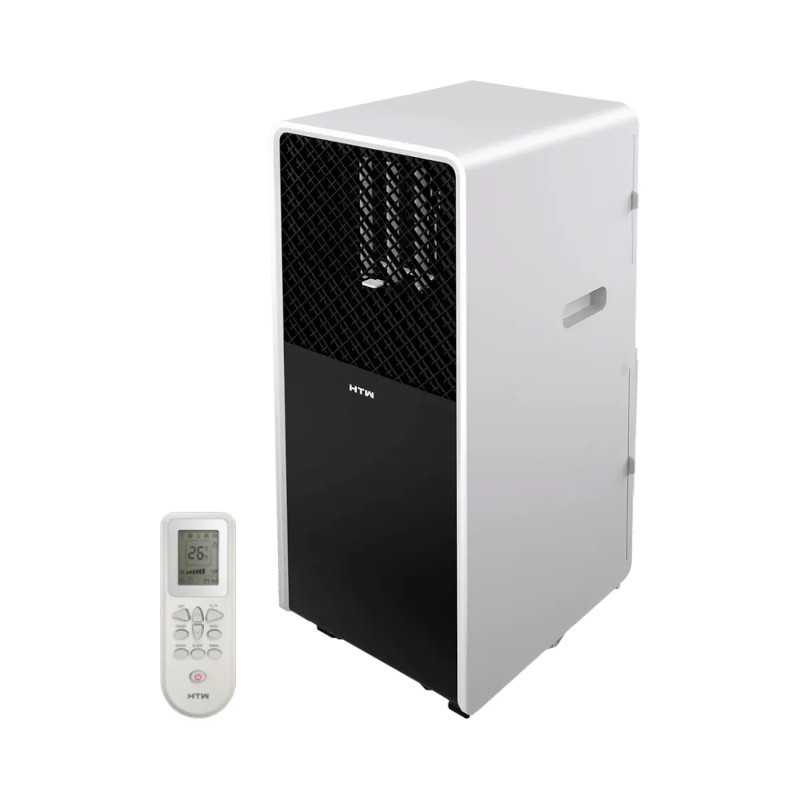

Portable air conditioning HTW-B-035p41WF cold / heat

Climate and electric performance

Nominal refrigeration power: 3.5 kW (3.010 kcal / h)

Nominal heat power: 3.2 kW (2.752 kcal / h)

Energy classification (cold / heat): Class A / Class A

EEER / COP efficiency coefficient: 2,60 W / W / 2.30 W / W

Electrical intake (cold / heat): 1.345 W / 1,391 W

Intensity absorbed (cold / heat): 5.9 A / 6.3 A

Electrical supply: 220-240 V / single-phase (1 phase ~ 50Hz)

Gas Refrigerant Gas of work: Ecological R290 (0.185 kg)

Mechanical specifications and measures

Net dimensions (wide x high x deep x): 285 x 698 x 335 mm

Net weight of the unit: 24 kg (high capacity robust structure)

Flow of maximum air: 300 m³ / h

Nominal sound power: 65 dB (A)

Recommended air conditionable perimeter: 14 to 20 m² of surface

Selectable temperature range: 16 ° C at 31 ° C

Length / Diameter Tube Evacuation: 1,500 mm / 165 mm

Universal Code of Bars EAN: 8435483876842

✔️ System with reversible heat pump: Take advantage of maximum comfort at any time of the year. Invert the refrigeration cycle automatically to act as an efficient heat pump, delivering a capacity of 3.2 kW clean heating during the winter.

✔️ Smart Wi-Fi control series: Link the unity wirelessly to the Internet to manage it remotely through a smartphone. Regulates temperatures, adjust the operating modes and control the air conditioning comfortably from anywhere.

✔️ Complete air conditioning 4 in 1: The team operates versatile under four fundamental modalities according to your daily requirements: 15.5 kW blunt cold air, heat pump heating, dynamic ventilation and dehumidifier dehumidification.

✔️ Stylized design of low footprint: Your compact Biton Chassis With an optimized 28.5 cm profile adapts gently to the corners of the rooms, minimizing the aesthetic impact in the room and facilitating its storage out of season.

✔️ Window kit and instant assembly: Forget about completing home facilities. The factory supply incorporates the 1.5 meter length flexible circular conduit and the rigid sealing adapter panel to ensure a clean and efficient coupling.

How is the model differentiated HTW-B-035P41WF model HTW-Pc-035p41wf?

The main difference difference lies in the air conditioning capacity in the different stations. While the variant "PC" is configured only as a cold single system, the model HTW-B-035P41WF is a high capacity reversible equipment that incorporates heat pump technology, allowing it to provide high efficiency heating (3.2 kW) during the winter months in addition to powerful cooling in summer.

Is it essential to install the flexible evacuation hose both cold and heat?

Yes, it is strictly mandatory to perform the heat exchange processes. In refrigeration mode, the hose ejects the residual heat of the room to the street; In heating mode, the tube evacuates the current cold air stream generated by producing heat inside. When dealing with the high capacity 3.5 kW model, it uses a 165 mm adapted diameter hose that should be driven to the outside using the serial window kit.

What preventive maintenance requires the filters of this Bitérmica unit of HTW?

To ensure a constant air flow of 300 m³ / h and avoid unnecessary overloads in the rotary compressor, it is advisable to perform a periodic cleaning of its mechanical powder retainer filters. Simply extract the filters from your rear guides, rinse them comfortably under the tap with warm water and neutral soap, let them dry for a shade and put them back on their original accommodation.
