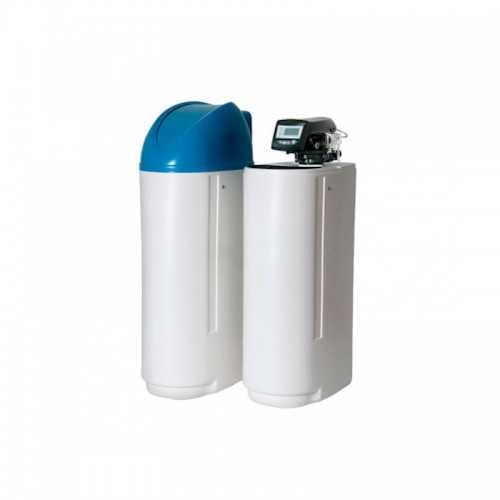

Descalcifier compact-700/030 ATH

The ATH Compact-700/030 it represents the maximum expression in domestic and light industrial decalcification. With 30 liters resin high quality strong cation and maximum Flow of 2.4 m³ / h, It is designed to meet the most demanding demands of water disqualified in large homes, small communities and light commercial applications.

Your autotrol-255 Valve of Industrial Features it guarantees exceptional reliability and precise control of all regeneration cycles. The logix-760 programmer with advanced volumetric control automatically optimizes the regeneration intervals according to real consumption, maximizing operational efficiency.

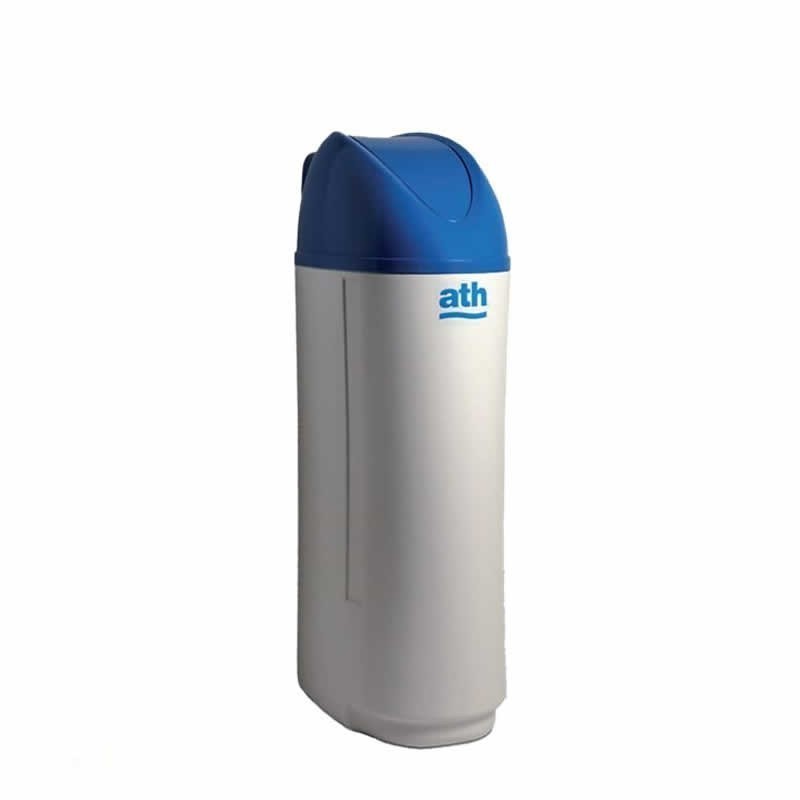

The polyester bottle reinforced with fiberglass provides superior structural resistance and exceptional durability, while the blowed polypropylene furniture resists impacts, corrosion and adverse environmental conditions for decades of intensive use.

With exchange capacity of 160 ºhf x m³ and optimized consumption of 3.9 kg of salt by regeneration, It offers extended autonomy minimizing maintenance. The system efficiently operates in pressures of 2.5-8 kg / cm² and temperatures of 0-35 ° C.

The high strength PVC central distributors they ensure uniform flow distribution and homogeneous regeneration of the entire resin. The automatic operation with 220V-50Hz power eliminates routine manual intervention.

The washing time of approximately 110 minutes it guarantees full regeneration and maximum quality water. The optimized granulometry of 0.6-0.8 mm from the resin provides maximum efficiency with minimum load loss.

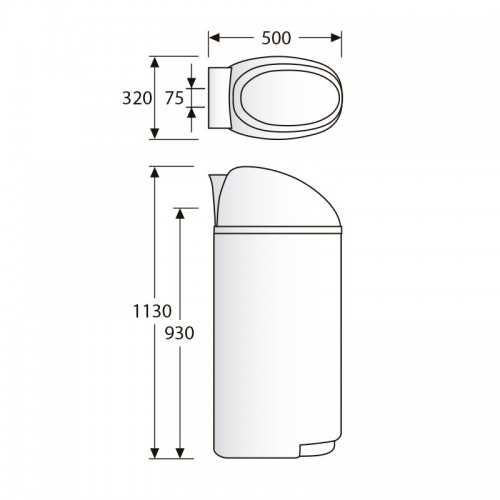

Compatible with standard 1 "BSP connections and compact dimensions for versatile installation. The loss of controlled load of 1.0-1.5 kg / cm² it maintains adequate pressure throughout the installation.

Compact-700/030 establishes new high-capacity decalcification standards, combining industrial robustness with energy efficiency for facilities that demand maximum performance, absolute reliability and long-term economic operation.

Main features

Technical specifications

Compact-700/030 - Industrial power!

Autotrol-255, Logix-760 and 30L capacity valve. Maximum performance for great demands!
