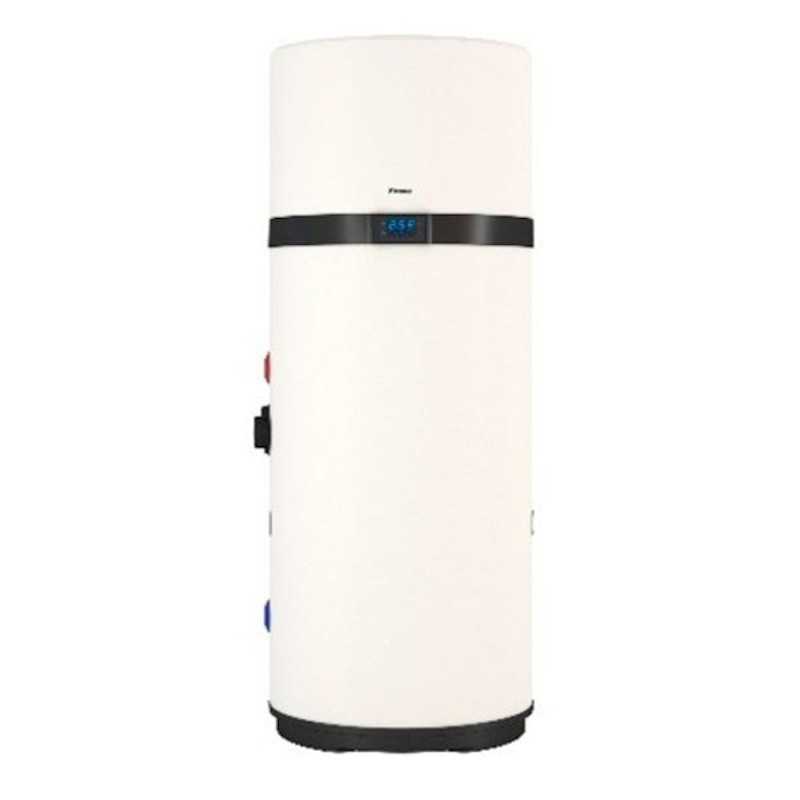

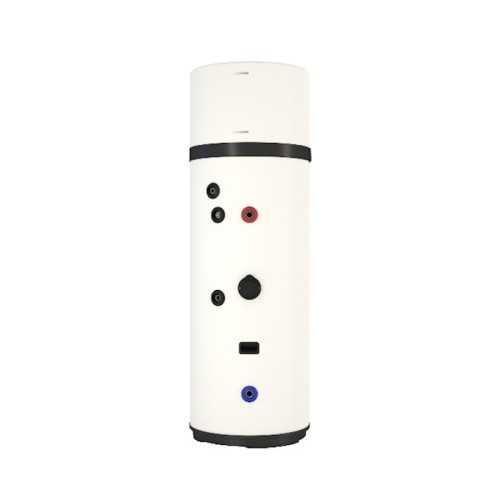

Heat Pump DHW Daikin EKHE200PCV37 Overpowered with Solar Serpentine
Heat Pump superpowered monobloc for hot water with 190 litre deposit, integrated solar winder and advanced technology with eco-friendly R-134a coolant. This high efficiency A+ class equipment Daikin combines power overpowered of 1.82 kW, exceptional COP up to 3.89 in warm weather, solar preparation with integrated winder, wide range of operation from -7°C to +43°C, optimized recovery time of 6h:27min from 10°C to 55°C, reinforcement resistance of 1.5 kW and reduced sound level of 53 dB, ideal for families of 4-5 people looking for maximum energy efficiency with the possibility of solar support and.
- ▷ Overpowered technology: 1.82 kW power with 0.43 kW consumption
- ▷ Maximum A+ efficiency with COP 3,23 (average) and COP 3,89 (heated)
- ▷ Integrated solar serpentin for renewable energy support
- ▷ Wide range: Works from -7°C to +43°C outdoor environment
- ▷ Quick recovery: 6h:27min from 10°C to 55°C (7°C)
- ▷ Solar-prepared monobloc installation: 1.607×621 mm with 96 kg
: Solar Preparation: Includes integrated for connection with solar thermal system, maximizing energy savings with renewable energies.
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: EKHE200PCV37 - Overpowered with Solar Serpentine - Refrigerant Gas R-134a (1.00 kg) - Profile L
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Calor Acs Pump Daikin EKHE200PCV37
Referencia: EKHHE200PCV37
€2,710.40
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Heat Pump DHW Daikin EKHE200PCV37 Overpowered with Solar Serpentine
Heat Pump superpowered monobloc for hot water with 190 litre deposit, integrated solar winder and advanced technology with eco-friendly R-134a coolant. This high efficiency A+ class equipment Daikin combines power overpowered of 1.82 kW, exceptional COP up to 3.89 in warm weather, solar preparation with integrated winder, wide range of operation from -7°C to +43°C, optimized recovery time of 6h:27min from 10°C to 55°C, reinforcement resistance of 1.5 kW and reduced sound level of 53 dB, ideal for families of 4-5 people looking for maximum energy efficiency with the possibility of solar support and.
- ▷ Overpowered technology: 1.82 kW power with 0.43 kW consumption
- ▷ Maximum A+ efficiency with COP 3,23 (average) and COP 3,89 (heated)
- ▷ Integrated solar serpentin for renewable energy support
- ▷ Wide range: Works from -7°C to +43°C outdoor environment
- ▷ Quick recovery: 6h:27min from 10°C to 55°C (7°C)
- ▷ Solar-prepared monobloc installation: 1.607×621 mm with 96 kg
: Solar Preparation: Includes integrated for connection with solar thermal system, maximizing energy savings with renewable energies.
␡️ Obligatoria Installation: It is mandatory the installation of a 3/4" hydraulic security group and a siphon for each unit according to current regulations.
Reference: EKHE200PCV37 - Overpowered with Solar Serpentine - Refrigerant Gas R-134a (1.00 kg) - Profile L
Security policy
Delivery policy
Refund policy
Heat Pump DHW Daikin EKHE200PCV37 Overpowered with Solar Serpentine
Overpowered Technology 日本語 Solar Preparation Δ Eficiencia A+ Δ Rango -7°C to +43°C
Japanese Overpowered Technology with Solar Preparation
The heat pump DHW EKHE200PCV37 Overpowered with Solar Serpentine of Daikin represents the most advanced evolution in Japanese technology for hot water, combining overpowered power of 1.82 kW with integrated solar preparation and optimized consumption of only 0.43 kW for maximum efficiency. With a capacity of 190 liters, integrated solar winder and compact monobloc structure, this A+ class team delivers exceptional performance with COPs of up to 3,89 in warm climate, ensuring up to 75% energy savings regarding conventional systems, with the additional possibility of using solar energy.
Designed with exclusive overpowered technology Daikin and integrated solar preparation, the EKHE200PCV37 operates in a wide range of temperatures from -7°C to +43°C, ensuring continuous operation even in extreme weather conditions. Its optimized recovery time from 6h:27min from 10°C to 55°C, 1.5 kW reinforcement and integrated solar winder ensure constant availability of hot water with maximum use of renewable energies.

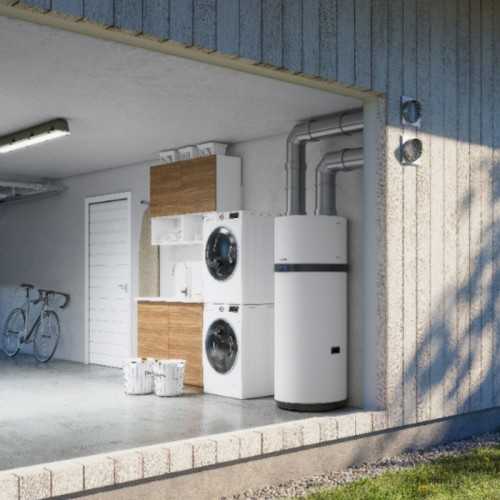

The compact monobloc structure of 1.607×621 mm and weight of 96 kg (with integrated winding) facilitates the interior or exterior installation, while the ecological refrigerant R-134a and the reduced sound level of 53 dB ensure respectful performance with the environment and maximum comfort. Ideal for families of 4-5 people looking to combine premium Japanese technology with solar preparation, superior energy efficiency and environmental sustainability.
Technical Specifications Overpowered with Solar
Power and Performance
- Nominal capacity: 190 litres
- Heat pump power: 1,82 kW
- Electric consumption: 0.43 kW
- Medium climate COP: 3,23
- COP warm climate: 3,89
- Energy classification: Class A+
Operational characteristics
- Time recovery: 6h:27min (10°C to 55°C)
- Reinforced resistance: 1.5 kW
- Temperature range: -7°C to +43°C
- Max water temperature: 62°C (75°C resistance)
- Air flow: 350-500 m3/h
- Consumer profile: L (middle families)
Technical components
- Refrigerant Gas: R-134a (1.00 kg)
- TCO2 equivalent: 1,43 / PCA: 1,430
- Food: 230V monophasic
- Sound level: 53 dB(A)
- Serpentine support: Yes included
- Unit type: Overpowered Solar
Dimensions and Installation
- Dimensions: 1.607×621 mm (Alto×Diameter)
- Weight: 96 kg (with serpentine)
- Structure: Solar-prepared Monobloc
- Installation: Interior/Exterior
- Connections: 3/4" in/out of water
- Code: EKHE200PCV37
Exclusive Advantages Solar Powered Technology
Integrated Solar Preparation
Solar serpentin included for maximum use of renewable energies.
▪ Overpowered technology
1,82 kW power with only 0,43 kW consumption. COP up to 3.89 for maximum efficiency.
A️ Amplio Rango Operativo
It works from -7°C to +43°C. Guarantee of operation in extreme conditions.
🇵/2012 Premium Quality Solar
Technology Daikin overpowered with integrated solar preparation.
Comparison Models EKHHE Daikin 200L
| Model | Capacity | COP Climate | Solar serpent | Weight | Application |
|---|---|---|---|---|---|
| EKHE200CV37 | 195L | 3,89 | No | 85 kg | Standard |
| EKHE200PCV37 | 190L | 3,89 | Yes | 96 kg | Solar |
Ideal applications
🌞
Solar installations
With solar thermal plates
👨👩👧👦
Eco families
4-5 persons
▪
Sustainable housing
Energy efficient buildings
️
Cold climates
Operation from -7°C
💚
Maximum Saving
Heat pump + solar
Integrated Solar Support System
Advantages of the Solar Serpentine:
- Maximum use of free solar energy
- Additional reduction in electrical consumption
- Combined system heat + solar pump
- Smart automatic operation
- Accelerated repayment of investment
Intelligent operation:
The system automatically prioritizes the use of solar energy when available, complementing the overpowered heat pump as needed.
Ideal for facilities that seek maximum energy efficiency and environmental sustainability.
Technical information
Reference code: EKHE200PCV37 - Overpowered with Solar Serpentine - Profile L
Refrigerant Gas: R-134a (1.00 kg) - TCO2: 1.43 - PCA: 1.430
Mandatory installation: Hydraulic security group 3/4" + siphon according to regulations
Guarantee: 2 standard years Daikin
Maximum Efficiency with Solar Preparation!
Daikin EKHE200PCV37 - Overpowered + Solar Δ COP 3,89 Δ Up to 75% + Solar Saving
🌞 Solar Preparation
Integrated serpent included
▪ Overpowered
1,82 kW / COP 3,89 maximum
🌞 Solar Preparation
Integrated serpent included
▪ Overpowered
1,82 kW / COP 3,89 maximum
️ Extreme Range
Works from -7°C to +43°C
🇵 Premium Solar
Japanese technology + solar
Why choose the Daikin EKHE200PCV37 Solar?
▷ Double savings: Heat pump + solar power
▷ Maximum efficiency: COP 3,89 overpowered
▷ Preparation included: Integrated solar serpent
▷ Cold Resistant: Works from -7°C
▷ Quick recovery: 6h:27min to 55°C
▷ Maximum sustainability: Premium eco technology
▪ The most efficient solution with solar preparation!
S Delivery at 24-48h* Ș s Solar installation Δ Renewable energy advice
⭐⭐⭐⭐⭐ 4.9/5 (312 opinions)
✓ Official guarantee Daikin
✓ Solar specialists
EKHHE200PCV37
Data sheet
- Brand
- Daikin
- Refrigerant Gas
- R134a
- Consumption profile
- L
- Capacity (L)
- 190
- Type of installation
- Suelo
- Type
- Compacta
- Anti-corrosion system
- Ánodo Magnesio
- Power consumed Nominal (W)
- 430
- Energy efficiency DHW
- A+
- COP (Tª Air 14ºC)
- 3,23
- Weather Heating Accumulator (Tª Air 7ºC)
- 6h:27min
- Power Electrical Resistance (W)
- 1.500
- Maximum production temperature DHW with heat pump
- 62
- Max. DHW with support electrical resistance
- 75
- Additional coil
- Sí
- Additional coil surface (m2)
- 0,72
- Sound level DB
- 53
- High (mm)
- 1.607
- Width (mm)
- 621
- Background (mm)
- 621
- Weight (kg)
- 96
- WiFi
- No
