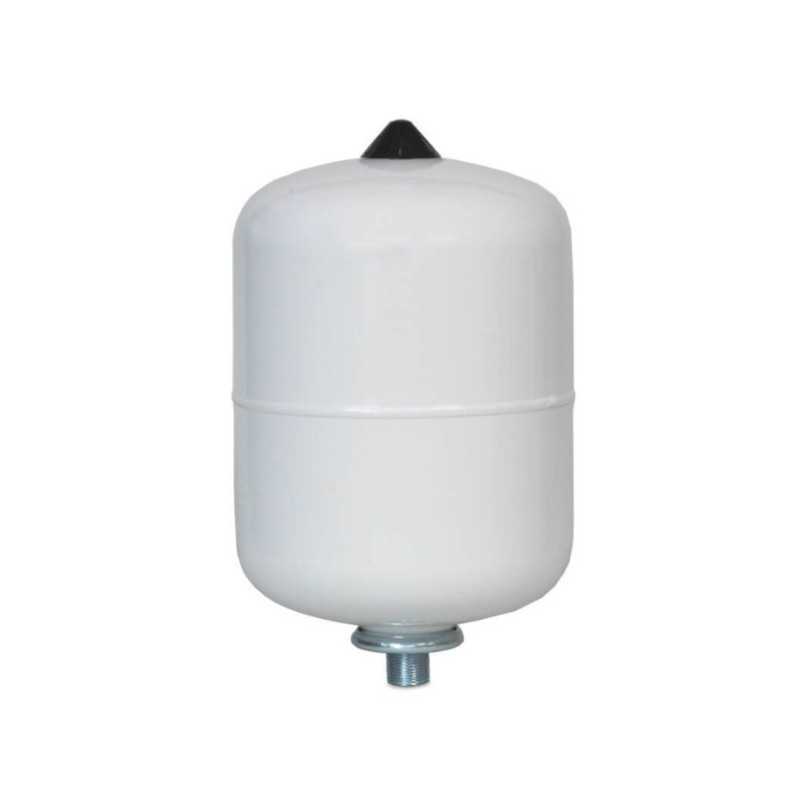

Expansion range acs 18 CMR Ibaiondo

The Expansion Vessel Ibaiondo CMR 18 is a key component in the health hot water systems (DHW), especially in those with open circuits. Its main function is to absorb the volume and pressure changes that occur in the system as the water heats and expands.

This CMR 18 model has a capacity of 18 litres, making it an ideal solution for medium-sized facilities such as multifamily housing, commercial buildings or small industrial applications. Its robust steel construction and fixed, non-replaceable, expansion membrane make it suitable for use with drinking water.

Some of the most relevant technical features of the Expansion Vase Ibaiondo CMR 18 are:

• Volume: 18 litres
• Maximum service pressure: 10 bar
• Test pressure: 12-15 bar
• Preload factory: 3 bar
• Temperature range: -10°C to 100°C
• Water connection: 3/4" male thread"
• Exterior finish: White paint

Thanks to its compact and simple installation design, the CMR 18 is easily integrated into all types of sanitary hot water systems, whether residential, commercial or industrial. Its robust construction and technical features make it a reliable and safe solution to maintain the integrity of the system, avoiding problems such as leaks or overprints.

Whether you are looking to replace an old expansion vessel or integrate a new one into your DHW system, the Expansion Vase Ibaiondo CMR 18 is an excellent choice that will provide years of reliable and smooth running.
