Scary Giacomini R146MY015 1" H 2.5m3/h
- Includes P146M magnetic kit.
- Includes unloading tap with hose and steel filter for impurity separation.
- Valid for water or glycolate solution (maximum 30% for threaded version).
- Maximum working temperature 110°C.
- Maximum work pressure 10bar.
- Download key connections: 1/2”M + hose duct
- Connection threaded female ISO 228.
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

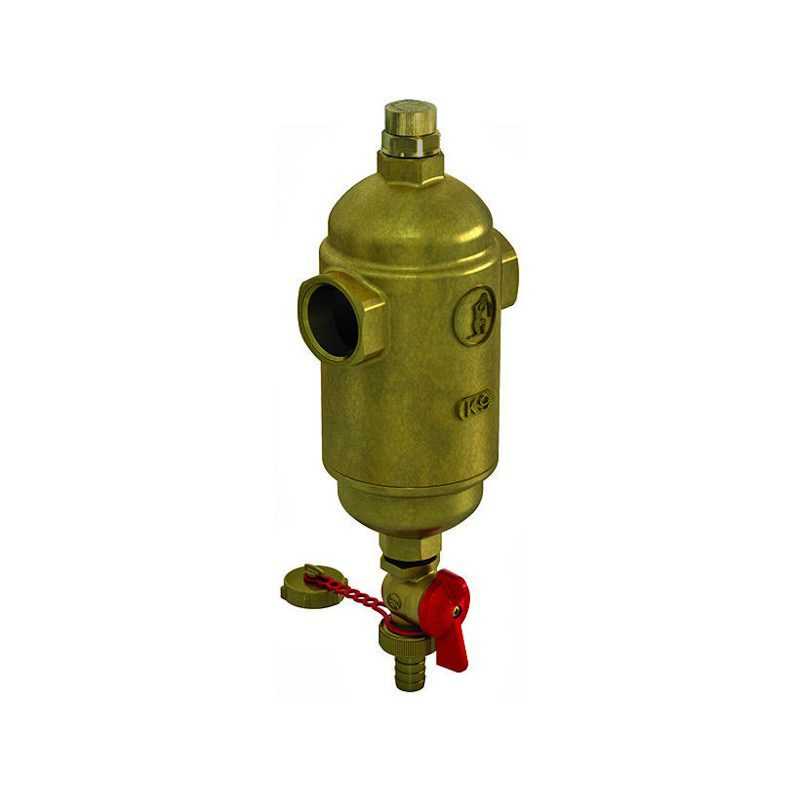

1" Magnetic Dirt Separator Giacomini
Referencia: R146MY015
€186.92
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Scary Giacomini R146MY015 1" H 2.5m3/h
- Includes P146M magnetic kit.
- Includes unloading tap with hose and steel filter for impurity separation.
- Valid for water or glycolate solution (maximum 30% for threaded version).
- Maximum working temperature 110°C.
- Maximum work pressure 10bar.
- Download key connections: 1/2”M + hose duct
- Connection threaded female ISO 228.
Security policy
Delivery policy
Refund policy
Scary Giacomini R146M 1" H 2.5m3/h
The Defender Giacomini R146M 1" H 2.5m3/h is used for the separation and removal of impurities present at the installation. Brass body with threaded connections (optional isolation R146W) or steel body with embedded connections, with insulation included.
The R146M magnetic defanger allows the separation and removal of impurities present in the hydraulic circuits of heating and air conditioning facilities. The impurities are separated by the combined action of a magnet and a set of radially arranged metal surfaces that allow their separation. Then such impurities can be removed by the discharge valve
Operating
The flow enters the defangador and suffers a decrease in speed such that it favors the separation of the solid impurities present in the fluid. Solid impurities are separated due to collision with metal mesh and ferrous are retained due to the pull force generated by the magnet. It is possible to clean the filter without having to disassemble and/or turn off the installation, opening the pass key and removing the magnet from the containment pod, removing it up
Installation
The defangador must be installed on the return circuit to protect the boiler from impurities present in the duct. To remove the magnet leave a free space of at least 130 mm at the top of the defangador. For regular cleaning consult the maintenance section.
R146MY015
