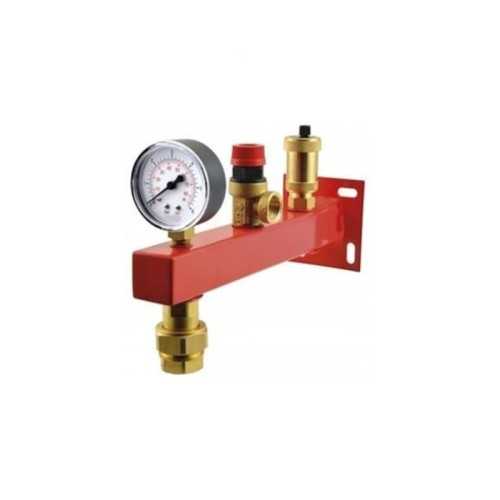

Complete support for 3bar expansion vessel Heating

Magnifying glass support for heating is designed specifically for air conditioning and aerotermia, and is ideal for assembly of expansion vessels from 5 to 40 liters.

This kit is delivered in a box that also comes with all the necessary safety and control accessories.

Composition of kit:

• Epoxy painted steel holder in red.
• Double valve retention M/H 3/4 pair connection and disconnection of the expansion vessel.
• Safety valve for boiler MH 1/2′′ x 3/4′ – 3 bar.
• Automatic 1/2′ air purger.
• Retention valve for 1/2′ purger.
• Gauge Ø 63 vertical cough 1/4′, scale 0-10 bar with green sector and red needle in the viewfinder.

This kit has a total length of 250 mm, and the distance between centers is 215 mm.

Indicated especially for the installation of expansion vessels for DHW and heating.
