Zehnder Comfoair 160 luxe vv
With pretreatment resistance • HRV
Version Vv with preheater For anti-year protection and balanced ventilation in cold climates. Advanced Control Comfossense and 0-10 V.
• Integrated antihiye
• Automatic bypass
• Optional co₂ sensors
• RS232 / BMS
Caudal HRV: 73-109 m³ / h • A + • Preheater included
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Zehnder Heat recovery COMFOAIR 160 LUXE VV (with pretreatment resistance)
Referencia: 471218915
€2,995.65
Tax included
We do not have stock at this time. Get availability !!
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Zehnder Comfoair 160 luxe vv
With pretreatment resistance • HRV
Version Vv with preheater For anti-year protection and balanced ventilation in cold climates. Advanced Control Comfossense and 0-10 V.
• Integrated antihiye
• Automatic bypass
• Optional co₂ sensors
• RS232 / BMS
Caudal HRV: 73-109 m³ / h • A + • Preheater included
Security policy
Delivery policy
Refund policy
Comfoair 160 luxe vv Add to the advanced electronics of the series Luxe a pretreatment resistance For cold climates that prevents the formation of ice in the exchanger. Maintains the automatic bypass to free-cooling, the Volume / constant flow and the Front access to filters Without tools

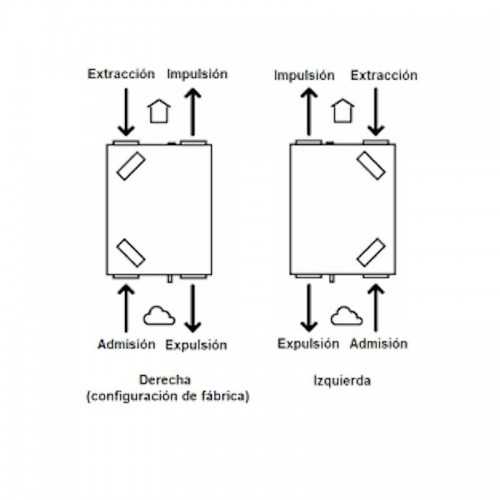

The unit retains the compact format of the range 160 with Wall and roof mounting and reversible hand (Left / Right) on the same machine. The control can be done with Comfosense wall control 55 and supports BMS integration Rs232 and free contacts.
As sensitive HRV, it offers noHr ≈ 89% with Pel, Spec ≈ 0,36 WH / m³ In the range of 73-109 m³ / h. Dimensions 864 × 670 × 268 mm, Weight 28 kg, connections Ø100 mm internal / Ø125 mm external and drainage Ø32 mm. Power / maximum consumption including / excluding preheater: 1067/67 W; fuse 6/3.
Main features
❄️ Pretreatment resistance (VV)
Protection Antihilo and stable operation in cold climates.
🌬️ Automatic summer bypass
Free-cooling Controlled by temperature
🧠 Electronics luxe
Constant volume, filter warnings and compatibility with Comfossense Control 55.
🔁 Reversible hand + wall mounting / ceiling
Same configurable unit for left / right.
🧰 Frontal maintenance
G4 Serial Filters with Option EPM1 F7 in drive.
Technical specifications
Ideal applications
Housing and apartments
New work or reform in cold climates with risk of frost.
Advanced control
Constant volume, wall control and BMS contacts.
Do you want to buy the Zehnder Comfoair 160 Luxe VV at the best price? On https://tualmacendelclima.com/en/ We offer you Offer online, stock and Shipping 24/48 h, in addition to customization, technical advice and official guarantee Zehnder. You heat recovery Comfoair 160 luxe vv cheap With immediate budget.
Comfoair 160 Luxe VV - Security Antihielo and Comfort
Automatic bypass, constant flow and integrated pretreatment for reliable operation all year round.
471218915
Data sheet
- Brand
- Zehnder
- Thermal efficiency (%)
- 95
- Exchanger
- Sensible
- Maximum flow (m3 / h)
- 160
- High (mm)
- 770
- Width (mm)
- 670
- Deep (mm)
- 268
- Weight (kg)
- 28
