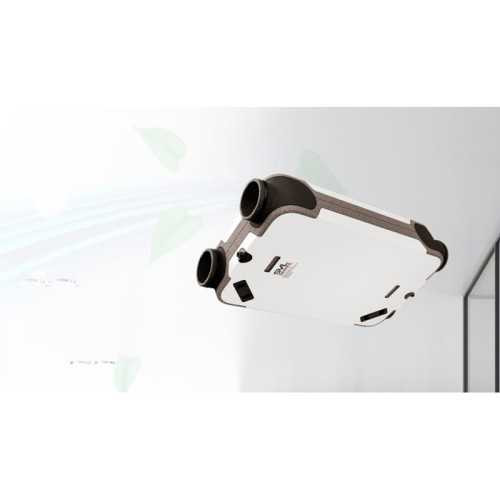

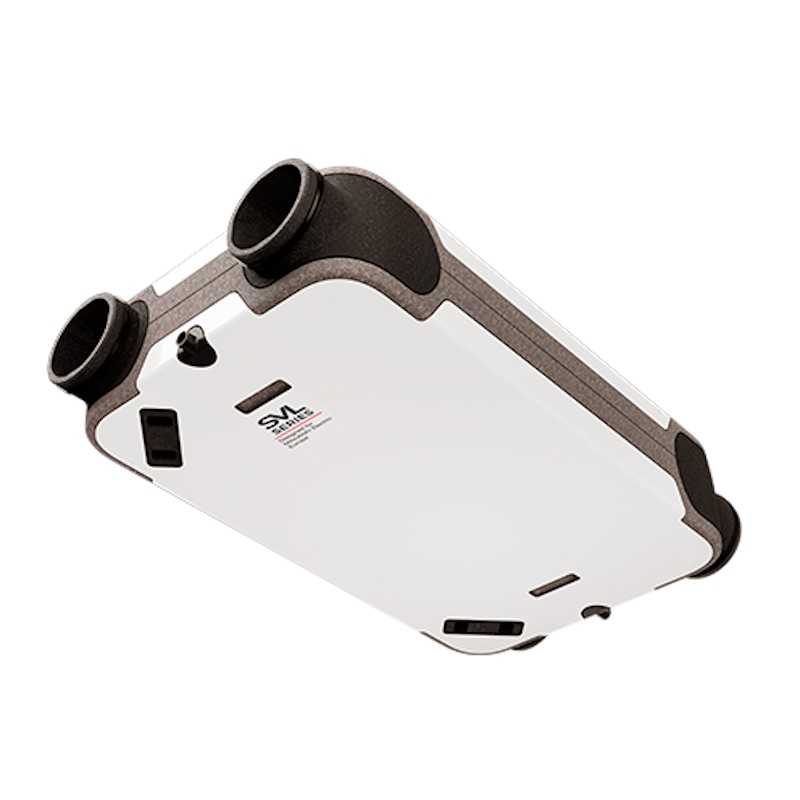

The Mitsubishi Electric SVL-150czpv-and is a heat recovery ultra-compact sensitive of the innovative SVL series, designed specifically for small residential and commercial applications that require high efficiency controlled mechanical ventilation in spaces with height limitations. With a maximum flow of 150 m³ / h and a height of just 21 cm, this revolutionary system combines exceptional performance with an extremely versatile installation, being the perfect solution for new rehabilitations and constructions with false reduced ceilings.

Incorporates the latest generation sensitive heat recovery technology with a efficiency of up to 90%, establishing new standards in the domestic ventilation sector. The system uses a high Performance Cross Flow Exchanger Core made with state-of-the-art plastic materials that guarantee an optimal thermal transfer and exceptional durability. This technology allows you to take advantage of the thermal energy energy expelled to preconceive renewal air, achieving important energy savings in air conditioning.

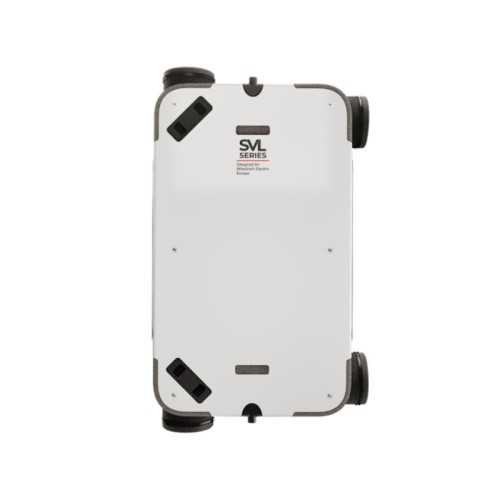

The revolutionary ultra-compact design of SVL-150CZPV-E with only 21 cm it makes it the ideal solution for installations with severe spatial limitations. The unit can be mounted both in horizontal position as vertical according to the needs of the project, and its four air connections can be reoriented in increments of 90 °, offering exceptional adaptability to any architectural configuration. In addition, the drain connection can also be modified, allowing the installation in virtually any technical space.

Equipped with high efficiency centrifugal fans with EC motors, the system provides a variable flow control of 0-100% with technology automatic constant flow. This advanced functionality allows the fans to automatically adjust their speed to maintain the air flow programmed independently of the variations in the load losses of the conduit system, guaranteeing a constant and optimized performance in all operating conditions.

• ✓Integrated filtration system with G4 Filters Serial
• ✓Automatic by-pass serranda for Free-Cooling
• ✓EC Motors of Maximum Efficiency with modulation 0-100%
• ✓Automatic constant flow control
• ✓Nucleus plastic exchanger high-durability
• ✓Normable connections 90 ° for maximum versatility
• ✓Right / left configuration on-site

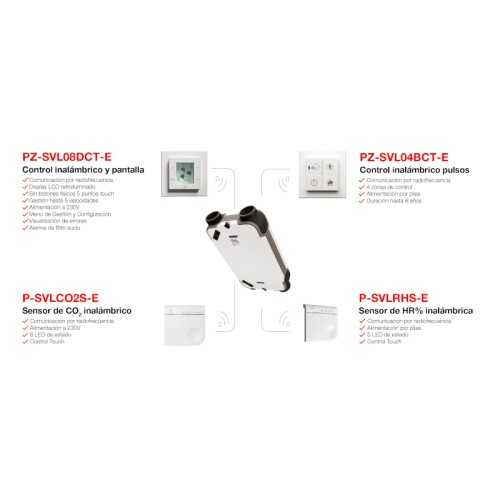

The control of the system is carried out by advanced wireless Command PZ-SVL08DCT-E, which uses low consumption radio frequency technology to communicate with the unit without the need for additional wiring. The control incorporates 5 capacitive push buttons and an LCD screen with backlighting that allows you to manage all operational functions, set complex time schedules and configure advanced operating parameters.

As optional accessories, they are available cO2 wireless sensors and relative humidity they allow automatic and intelligent modulation of the air flow according to the real needs of space and occupation. These sensors do not require wiring and some models incorporate long-lasting batteries, greatly simplifying the installation.

• ✓Apartments of 60-100 m²
• ✓Small single-family homes
• ✓Studies and Lofts
• ✓Small offices
• ✓Medical consultations
• ✓Dental clinics
• ✓Professional Dispatches
• ✓Rehabilitation with limited space

The SVL-150czpv-and it allows advanced integration with domotic and control systems by optional interfaces Modbus or KNX. These communications are performed wirelessly between the unit and the interface, simplifying the installation and allowing the full remote control, the advanced programming and the monitoring of the system from any connected device.

The installation of the equipment is greatly simplified thanks to its modular design and optimized connections. The system can be configured during installation for operation with right or left output by means of a simple setting on the electronic board, eliminating the need to keep different models in stock. The unit requires the use of specific dry siphon p-svlsyf-e that allows the safe evacuation of condensation without risk of reflux of odors.

Buy your SVL-150CZPV-E in https://tualmacendelclima.com/en/ with the confidence of the experts

On https://tualmacendelclima.com/en/, Specialists in air conditioning and ventilation with more than 15 years of experience, we offer you:

• ✓Best market price for the SVL-150CZPV-E
• ✓Free shipping on orders over € 300
• ✓Official guarantee of the manufacturer
• ✓Professional installation service throughout EspaNA
• ✓Custom Technical Advice
• ✓Right dimensioning of the system
• ✓Complete technical support post-installation
• ✓Interest funding available

Our team of engineers will help you correctly dimension your ventilation system and provide you with complete technical support to optimize your investment in efficient ventilation.
