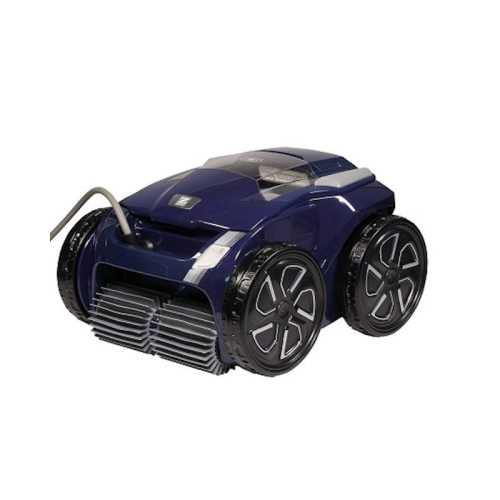

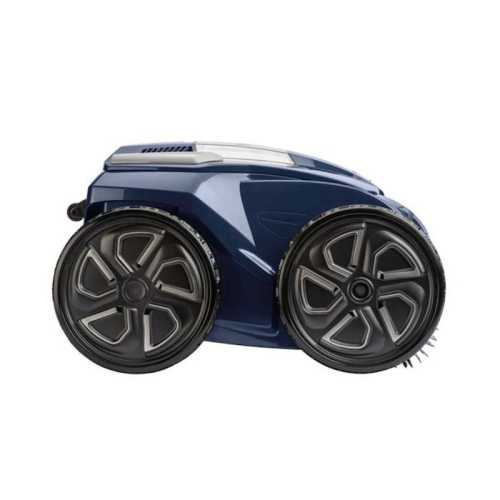

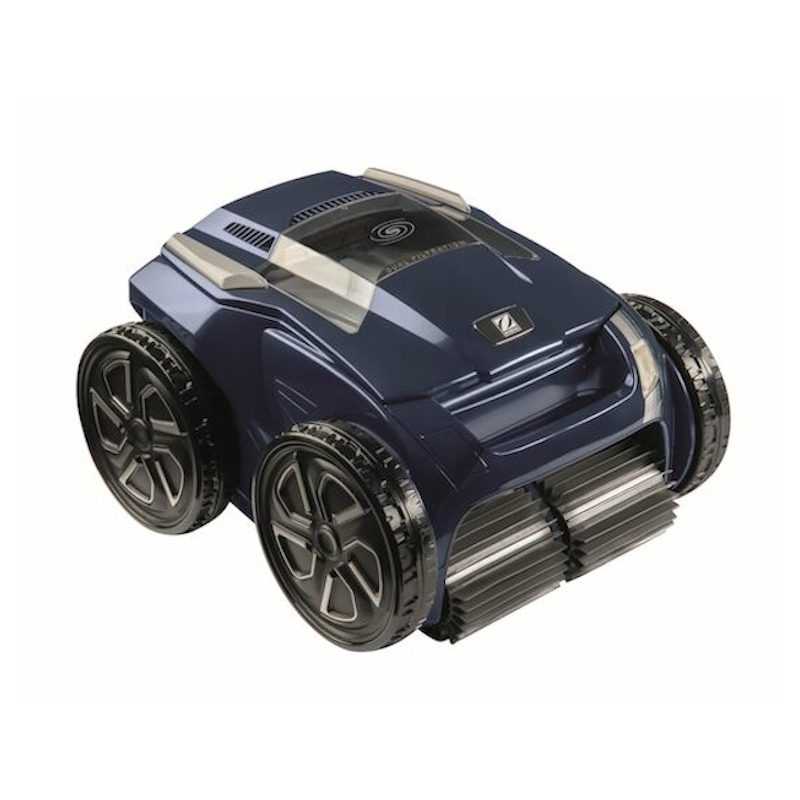

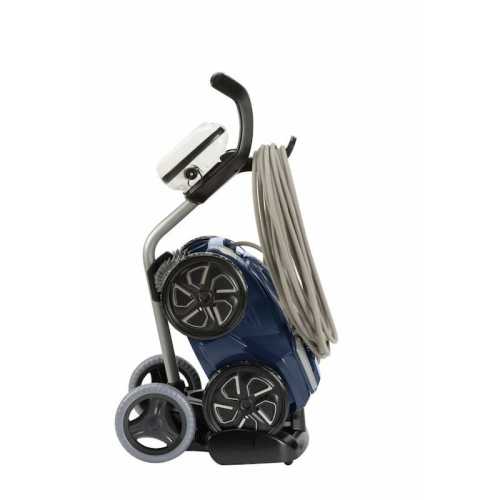

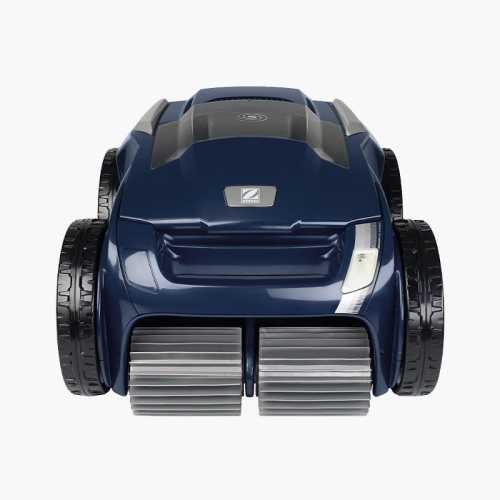

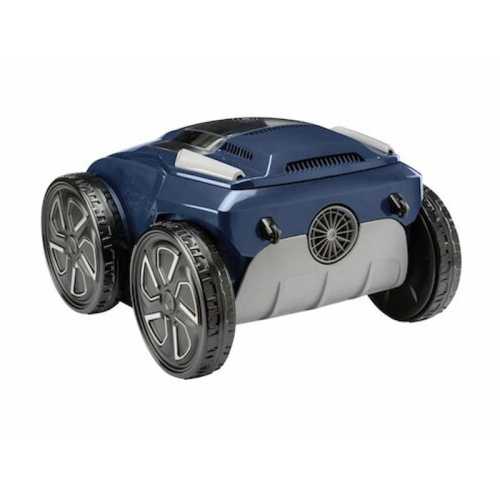

Electric Cleaning Zodiac RA 6900 IQ Alpha Pro

Zodiac RA 6900 IQ ALPHA PRO

Power and capacity without limits for large swimming pools. Industrialized performance with dual filtration on two levels, 4x4 traction, temperature reading and the IAQUALINK ™ intelligent ecosystem.

Technical study and performance on large surfaces

The management of large-scale swimming pools (up to 200 m² of water sheet) requires automatic equipment with a range of extraordinary coverage and systems that do not sature the central filtration of the vessel. The autonomous robot Zodiac RA 6900 IQ answer these technical requirements operating with total independence of the installation scrubber. To guarantee the maximum use of its 25 meters of watertight and schedule the cycles adapted to the specific needs of its coating, our Hydraulic Network Engineering Department exhaustively analyzes each project.

📊 as detailed in the Technical Sheet Cleaning RA 6900 IQ Zodiac.pdf, the equipment is prepared for the most demanding maintenance challenges.

Maximum filtering and intelligent engineering for premium maintenance

Electric cleansing Zodiac RA 6900 IQ Alpha Pro unifies the performance of a SUV chassis with the most robust artificial intelligence software available in the sector. By implementing the patented navigation system NAV System ™ Sensor, the device performs a three-dimensional measurement of the vessel to structure an optimized route. This allows the robot to adapt perfectly to all types of shapes (rectangular, kidney or free) and funds (planes or composite slopes). Thanks to an integrated pressure sensor, the machine millimetrically doses the energy to scale the walls stably, performing a detailed treatment in the water line.

The great advantage of the RA 6900 IQ model lies in its extraordinary system of ** filtration at two combined levels (150 microns and 60 microns) **. This dual arrangement allows the outer filter to retain the most voluminous impurities (leaves, insects or twigs) without colmatar the internal mesh, while the 60 micron inner cartridge captures the fine dust and the smaller sediments. In addition, the equipment offers the versatility of using the 150 micron filter completely independently, ideal for the start of the bath season or after intense storms. All this is enhanced by patented cyclonic aspiration technology, which maintains dirt in suspension and prevents the hydraulic force from its three engines from decreasing.

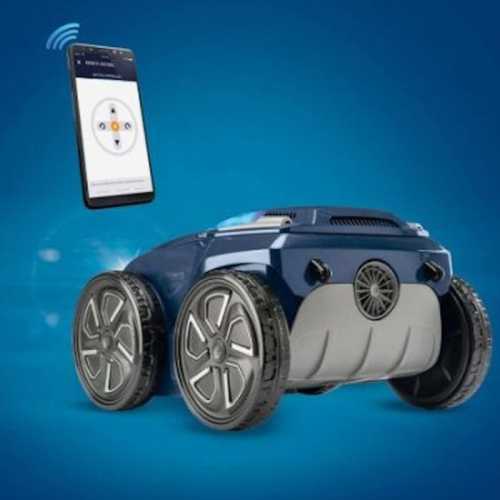

Comfort in daily handling is resolved through the mechanism ** lift system **. When activating the collection, the robot rises to the surface of the selected wall; At the time of lifting it, the system instantly evacuates the stored water, significantly reducing the weight to avoid physical overwhelming. Connectivity is managed impeccably by the application interface ** iAqualink ™ ** (compatible with IOS 10 and Android 5.1 onwards). From the mobile you can sort the start / stop, make cleanings located by zones by remote control, schedule 7-day calendars, measure the water temperature and receive automatic software updates that continuously improve the efficiency of the cleaner.

Frequently Asked Questions and Climate Management

Would you like advice for the sizing of your commercial installation?

On https://tualmacendelclima.com/en/ we are specialist engineers in technical design, control and optimization of air conditioning networks, aerothermia and advanced equipment for residential and collective pools. If you need to solve doubts about complementary filtering accessories, sizing or checking the official performance specifications of the range Zodiac, our engineering department is at your entire disposal.
