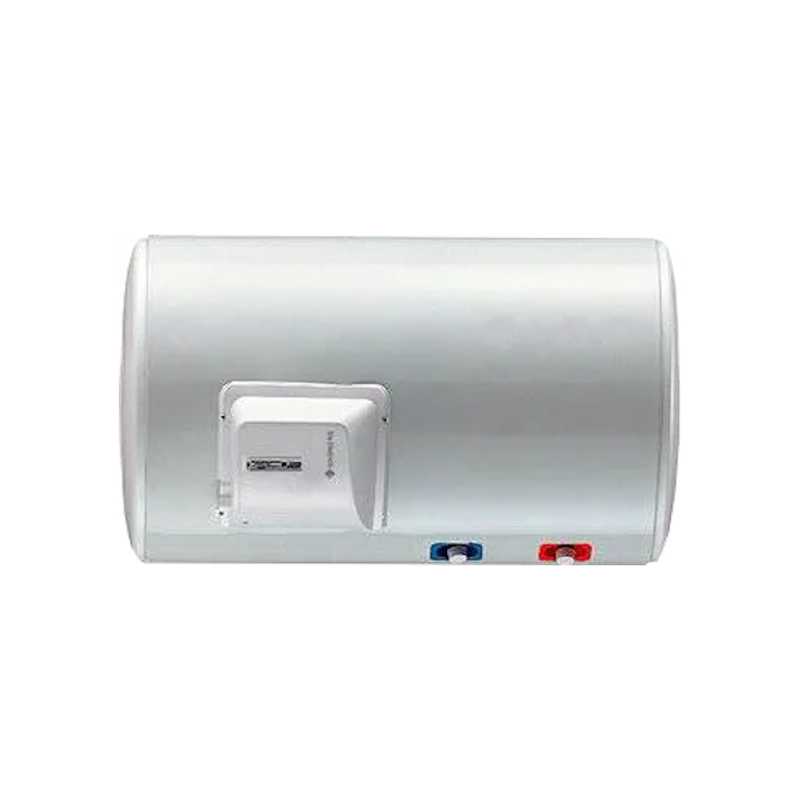

Electric thermo De Dietrich COR-ÉMAIL THS 100L HORIZONTAL - Versatile Installation with Titanhybrid System Technology
The De Dietrich COR-ÉMAIL THS 100L HORIZONTAL It offers maximum installation flexibility for spaces with height limitations. Ideal for installation on ceilings, false ceilings or spaces between forged, maintains all the benefits of technology Titanhybrid System in horizontal configuration.
Built with ENAME STEEL CUBA EUROPEAN With vitrified enamel of high quartz content, guaranteeing quality and resistance. The Anti-corrosion-integral hybrid anode With 500 mA induced current it is specifically optimized for horizontal installation, ensuring total protection in any orientation.
Your Stoatite resistance of 1.800W Mounted on glazed cover provides efficient heating in 3h12 and production capacity of 186 liters at 40 ° C. The dry anti-heating system and horizontal configuration include specific compensations for the different water distribution.
The Adjustable electronic thermostat of 50 to 65 ° C Incorporates optimized ACI function for horizontal installation. Compatible Easytri system for 400V three-phase feeding (2,6a), optimizing electrical installation. The Insulation of rigid polyurethane injected It is specifically designed for horizontal orientation.
With dimensions of 860 x 600mm and weight of 34kg, it allows wall fixing or ceiling with orientable connections to the right, left, but obligatorily down. Your maintenance consumption of 1.28 kWh / 24H and IP Protection Index 25 guarantee optimal performance, supported by the warranty De Dietrich.
Technical specifications
| Feature | Value |
|---|---|
| Capacity | 100 liter |
| Nominal power | 1,800 W |
| Feed | Easytri (Mono / Three-phase) |
| Intensity 230v mono | 7.8 a |
| Three-phase 400V intensity | 2.6 a |
| Weather heating | 3h12 |
| Volume DHW at 40 ° C | 186-liter |
| Consumption | 1,28 kWh / 24h |
| Maximum temperature | 95 ° C. |
| Maximum pressure | 7 bar |
| Protection index | IP 25 |
| Dimensions (A x B) | 860 x 600 mm |
| Net weight | 34 kg |
| Connections | R 3/4 "Entry / Exit |
| Installation | Wall, roof, floor |
7788351
Data sheet
- Brand
- De Dietrich
- Installation
- Horizontal
- Consumption
- L
- Power (W)
- 1.800
- Volume (L)
- 100
- ERP class
- C
- High (mm)
- 505
- Width (mm)
- 860
- Deep (mm)
- 600
- Weight (kg)
- 32
