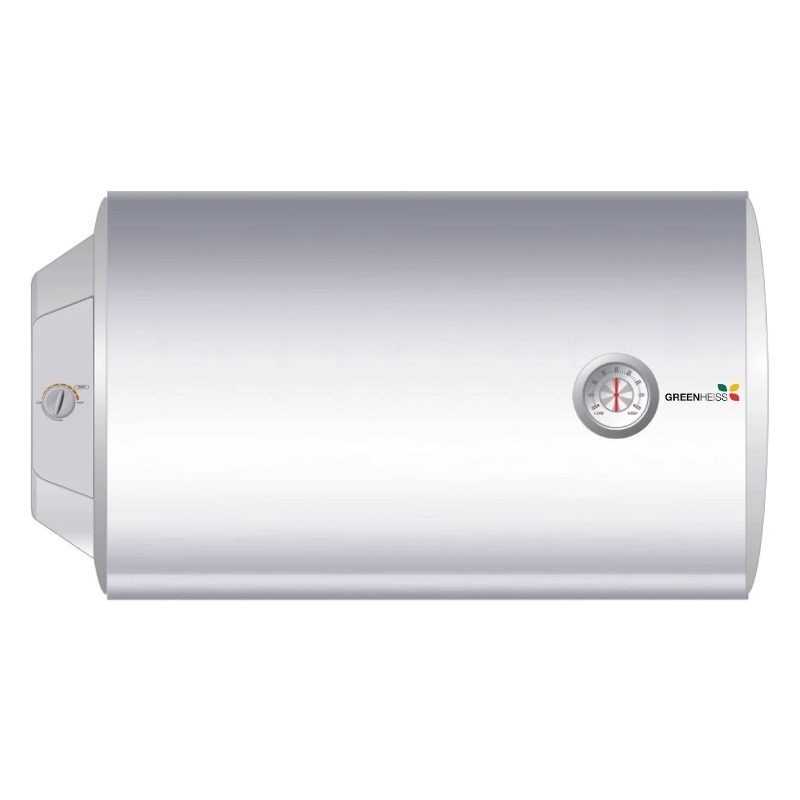

Electric Termil Greenheiss FIVE ERP 100L Horizontal
Horizontal 100 liter thermoCumulator for installations with height limitation. Double Vitrified at 840 ° C according to DIN 4753-3 standard, ideal for 3-4 people with maximum assembly flexibility.
- â Capacity: 100 liters
- â Power: 1,500 W
- â Preparation Time: 2h 43min
- â Dimensions: Ă410 x 1120 mm
- â Energy classification: c
- â Installation: Horizontal
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Electric Thermo Greenheiss Five ERP 100 liters Horizontal Vitrifice
Referencia: 2200025008
âŹ358.79
Tax included
î IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Electric Termil Greenheiss FIVE ERP 100L Horizontal
Horizontal 100 liter thermoCumulator for installations with height limitation. Double Vitrified at 840 ° C according to DIN 4753-3 standard, ideal for 3-4 people with maximum assembly flexibility.
- â Capacity: 100 liters
- â Power: 1,500 W
- â Preparation Time: 2h 43min
- â Dimensions: Ă410 x 1120 mm
- â Energy classification: c
- â Installation: Horizontal
Security policy
Delivery policy
Refund policy
Electric Termo Greenheiss Five is ERP 100L horizontal - great capacity with maximum flexibility
The Greenheiss Five is 100L horizontal represents the high capacity solution for families of 3-4 people who require horizontal installation due to architectural limitations. It combines 100 liters of capacity with horizontal mounting flexibility, maintaining all premium technical performance of the FIVE range is ERP.
Manufactured in Structural steel not alloy S235JR according to in 10025-2 with the badge Double vitrified in oven at 840 ° C according to DIN 4753-3 standard. This specialized high temperature process guarantees the same exceptional anticorrosion protection and water purity that characterizes the entire series, regardless of the installation orientation.
Your 1.500W Electric Resistance of 1.500W with adjustable thermostat It provides efficient heating in 2 hours and 43 minutes, maintaining the same features as the equivalent vertical model. The horizontal configuration incorporates Double anode of magnesium Strategically located to compensate for the horizontal distribution of water and ensure total anti-corrosion protection.
The Insulation of rigid polyurethane injected 20mm with 42 kg / mÂł density and conductivity λ = 0.022 W / MK is specifically optimized for horizontal configuration, minimizing thermal losses. Its dimensions of Ă410 x 1120mm allow installation on low ceilings, false ceilings or technical spaces with limited height.
With Energy Classification C and production capacity of 36.86 l / h, offers abundant supply for multiple simultaneous points of consumption. The electrostatically varnished steel sheet finish guarantees aesthetic durability in any orientation, supported by 5 year warranty that confirms the maximum confidence of the manufacturer in this large capacity configuration.
Technical specifications
| Feature | Value |
|---|---|
| Nominal / real capacity | 100 liter |
| Resistance power | 1,500 W |
| Preparation DHW (ÎT 35 ° C) | 2h 43min |
| Production DHW (ÎT 35 ° C) | 36.86 l / h |
| Dimensions (Ă x length) | Ă410 x 1120 mm |
| Empty weight | 30.9 kg |
| Maximum pressure | 8.0 bar |
| Maximum temperature | + 75 ° C. |
| Thickness isolation | 20 mm |
| Static losses | 65 W |
| Thermal dispersion | 1,56 kWh / day |
| Coefficient losses (UA) | 1.63 W / K |
| Energy classification | C. |
| Load profile | Meters |
| Installation | Horizontal |
| Main advantage | Large capacity + Flexible installation |
| Code | 2200025008 |
2200025008
Data sheet
- Brand
- GreenHeiss
- Installation
- Horizontal
- Consumption
- M
- Power (W)
- 1.500
- Volume (L)
- 100
- ERP class
- C
- High (mm)
- 410
- Width (mm)
- 1.120
- Deep (mm)
- 430
- Weight (kg)
- 30
