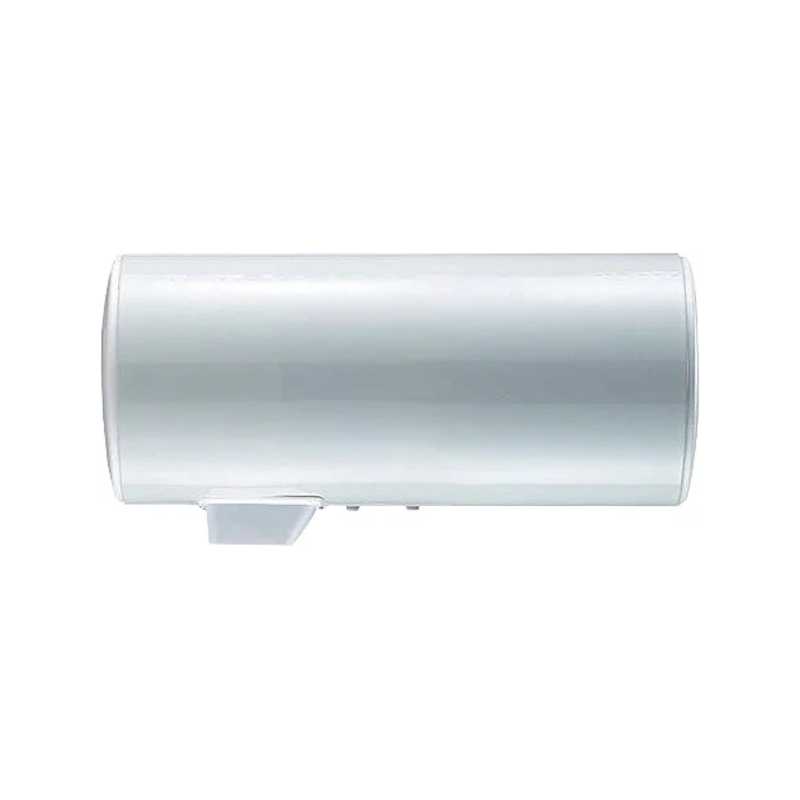

Electric thermo De Dietrich COR-ÉMAIL THS 150L HORIZONTAL
Family horizontal electric thermo with Titanhybrid System technology and Easytri system. Versatile installation for spaces with height limitations, ideal for families of 3-4 people.
- ✅ Capacity: 150 liters
- ✅ Power: 1,800 W
- ✅ Warm up: 4h50
- ✅ Production DHW: 265L at 40 ° C
- ✅ Easytri: Mono / three-phase
- ✅ Installation: Versatile horizontal
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Electric thermo De Dietrich COR-ÉMAIL THS 150 liters Enhall / Vitrified Horizontal
Referencia: 7788352
€901.15
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Electric thermo De Dietrich COR-ÉMAIL THS 150L HORIZONTAL
Family horizontal electric thermo with Titanhybrid System technology and Easytri system. Versatile installation for spaces with height limitations, ideal for families of 3-4 people.
- ✅ Capacity: 150 liters
- ✅ Power: 1,800 W
- ✅ Warm up: 4h50
- ✅ Production DHW: 265L at 40 ° C
- ✅ Easytri: Mono / three-phase
- ✅ Installation: Versatile horizontal
Security policy
Delivery policy
Refund policy
Electric thermo De Dietrich COR-ÉMAIL THS 150L Horizontal - Family Capacity with Versatile Installation
The De Dietrich COR-ÉMAIL THS 150L HORIZONTAL It combines ideal family capacity for 3-4 people with maximum horizontal installation flexibility. Maintains all the benefits of technology Titanhybrid System In horizontal configuration optimized for spaces with height limitations.
Built with ENAME STEEL CUBA EUROPEAN With highly content vitrified enamel. The Anti-corrosion-integral hybrid anode With 500 mA induced current it is specifically optimized for horizontal installation, ensuring total anti-corrosion protection in any orientation.
Your Stoatite resistance of 1.800W Mounted on glazed cover provides efficient heating in 4h50 and production capacity of 265 liters at 40 ° C. The dry anti-heating system is specifically adapted for horizontal operation with compensation for the different water distribution.
The Adjustable electronic thermostat of 50 to 65 ° C Incorporates optimized ACI function for horizontal installation. Compatible Easytri system for 400V three-phase feeding (2,6a), optimizing electrical installation. The Insulation of rigid polyurethane injected without CFC It is specifically designed for horizontal orientation.
With dimensions of 1,180 x 800mm and weight of 43kg, it allows versatile wall, roof or floor installation with orientable connections to the right or left, obligatorily down. Your maintenance consumption of 1.60 kWh / 24H and IP protection index 25 guarantee maximum performance, supported by the warranty De Dietrich.
Technical specifications
| Feature | Value |
|---|---|
| Capacity | 150-liter |
| Nominal power | 1,800 W |
| Feed | Easytri (Mono / Three-phase) |
| Intensity 230v mono | 7.8 a |
| Three-phase 400V intensity | 2.6 a |
| Weather heating | 4h50 |
| Volume DHW at 40 ° C | 265 liters |
| Consumption | 1,60 kWh / 24h |
| Maximum temperature | 95 ° C. |
| Maximum pressure | 7 bar |
| Protection index | IP 25 |
| Dimensions (A x B) | 1180 x 800 mm |
| Net weight | 43 kg |
| Connections | R 3/4 "Entry / Exit |
| Installation | Horizontal versatile |
7788352
Data sheet
- Brand
- De Dietrich
- Installation
- Horizontal
- Consumption
- L
- Power (W)
- 1.800
- Volume (L)
- 150
- ERP class
- C
- High (mm)
- 505
- Width (mm)
- 1.180
- Deep (mm)
- 600
- Weight (kg)
- 41
