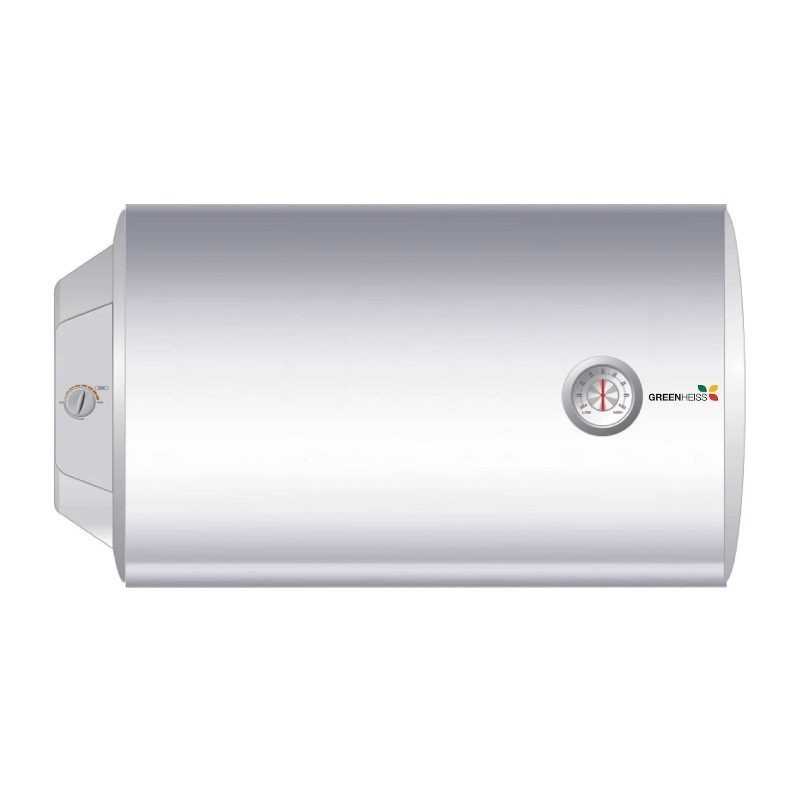

Electric Termo Greenheiss Five ERP 50L Horizontal
Horizontal 50 liter thermoCumulator ideal for installations with height restrictions. Double Vitrified at 840 ° C according to DIN 4753-3 standard, perfect for 1-2 people with maximum assembly flexibility.
- â Capacity: 50 liters
- â Power: 1,500 W
- â Preparation time: 1h 22min
- â Dimensions: Ă410 x 675 mm
- â Energy classification: D
- â Load profile: M
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Electric Termo Greenheiss Five Strong 50 liters Horizontal Vitrifice
Referencia: 2200015008
âŹ271.77
Tax included
î IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Electric Termo Greenheiss Five ERP 50L Horizontal
Horizontal 50 liter thermoCumulator ideal for installations with height restrictions. Double Vitrified at 840 ° C according to DIN 4753-3 standard, perfect for 1-2 people with maximum assembly flexibility.
- â Capacity: 50 liters
- â Power: 1,500 W
- â Preparation time: 1h 22min
- â Dimensions: Ă410 x 675 mm
- â Energy classification: D
- â Load profile: M
Security policy
Delivery policy
Refund policy
Electric Termo Greenheiss FIVE ERP 50L Horizontal - Flexibility of installation without commitments
The Greenheiss Five is ERP 50L horizontal offers the same quality and benefits as your vertical brother but with horizontal installation For spaces with height limitations. Ideal for homes of 1-2 people where architectural restrictions require maximum assembly flexibility without renouncing premium quality.
Manufactured in Structural steel not alloy S235JR according to in 10025-2 with the badge Double vitrified in oven at 840 ° C according to DIN 4753-3 standard. This specialized process guarantees the same exceptional anticorrosion protection and purity of water that characterizes the entire FIVE range is independently of the installation orientation.
Your 1.500W Electric Resistance of 1.500W with adjustable thermostat It provides efficient heating in 1 hour and 22 minutes, maintaining the same technical benefits as the vertical model. The horizontal installation does not affect the thermal performance or the energy efficiency of the system.
The Insulation of rigid polyurethane injected 20mm with 42 kg / mÂł density and conductivity λ = 0.022 w / mk is optimized for horizontal configuration, minimizing thermal losses. Its dimensions of Ă410 x 675mm allow installation in spaces with low-roofed or between forged.
With Load profile M and Energy Classification D, it maintains all the benefits of the vertical model. The electrostatically varnished steel sheet finish guarantees aesthetic durability in any orientation, supported by 5 year warranty that confirms the confidence of the manufacturer in this specialized configuration.
Technical specifications
| Feature | Value |
|---|---|
| Nominal / real capacity | 50 liter |
| Resistance power | 1,500 W |
| Preparation DHW (ÎT 35 ° C) | 1h 22min |
| Production DHW (ÎT 35 ° C) | 36.86 l / h |
| Dimensions (Ă x length) | Ă410 x 675 mm |
| Empty weight | 17.8 kg |
| Maximum pressure | 8.0 bar |
| Maximum temperature | + 75 ° C. |
| Thickness isolation | 20 mm |
| Static losses | 61 W |
| Thermal dispersion | 1,46 kWh / day |
| Coefficient losses (UA) | 1,53 W / K |
| Energy classification | D |
| Load profile | Meters |
| Installation | Horizontal |
| Code | 2200015008 |
2200015008
Data sheet
- Brand
- GreenHeiss
- Installation
- Horizontal
- Consumption
- M
- Power (W)
- 1.500
- Volume (L)
- 50
- ERP class
- C
- High (mm)
- 410
- Width (mm)
- 675
- Deep (mm)
- 430
- Weight (kg)
- 18
