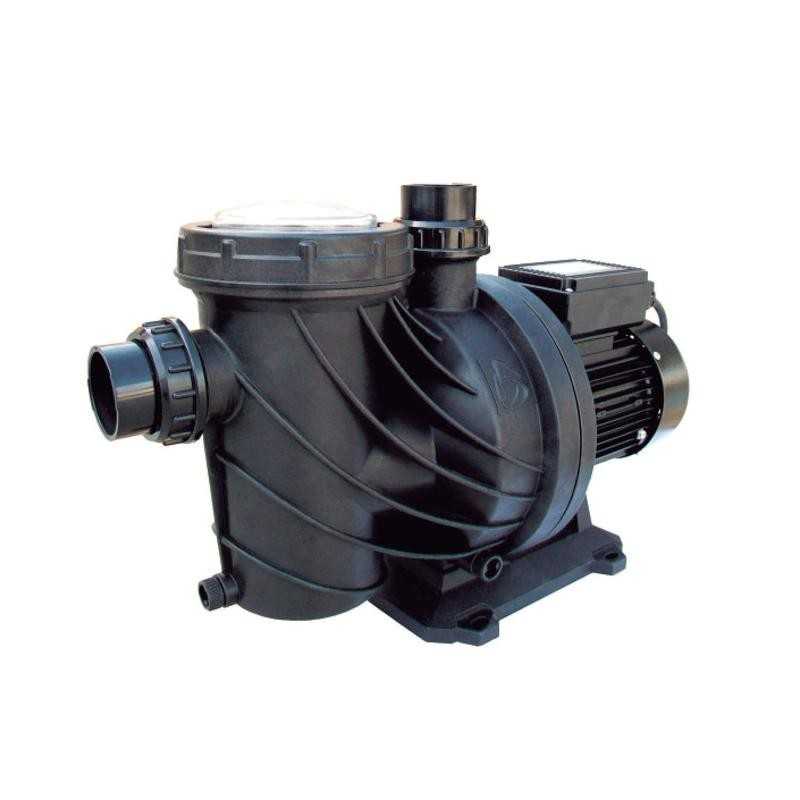

Filtration pump DBM Dolfi 50M

DOLFI 50M Filter Pump

Power: 0.5 CV Δ Caudal: 8,0 m3/h at 10mca Δ Ideal for 36m3 volume pools

Product Description

La DOLFI 50M Filter Pump is an ideal centrifugal pump for filtering medium pools. With a filtering capacity of up to 11,2 m3/h and a power of 0.68 kW, this pump ensures efficient operation and low energy consumption.

Manufactured with a robust body of technopolymers reinforced with fiberglass, DOLFI 50M is able to support the most demanding working conditions. In addition, its components, such as impeller, seal support and diffuser, are made of thermoplastic polymers for greater durability and resistance.

The special mechanical closure in AISI 316, with graphite and alluminum oxide faces, together with NBR joints, ensure optimal performance over time. The engine shaft is stainless steel AISI 420, and the engine housing is built in aluminum, providing additional protection against corrosion.

With a maximum working pressure of 3 bar and a maximum temperature of 45oC pumped liquid, the DOLFI 50M pump is ideal for swimming pools up to 50 m3. Its two-pole asynchronous engine, IP55 protection and class F isolation provide reliability and safety in its continuous operation.

This pump includes a heat protector and a 1.5 meter cable with Schuko plug in the monophase version. The vacuum and impulsion springs of 50 mm with internal thread of 11⁄2” facilitate installation and maintenance, and the integrated prefilter ensures efficient operation.
