The ceiling LG Comfort + 42 three2
Great power three-phase commercial solution For suspended installation under ceiling, optimal for climate to large surfaces. This 12.1 kW system uses ecological refrigerant A-32 and distributes the current load in a balanced manner. It has a seasonal rating To ++ In cold, an air flow of 28.0 m³ / min and total professional durability.
• Refrigerator power: 12,10 kW
• Feeding: Three-phase
• Indoor Unit: UV42F.N20
• Ecological gas R32
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

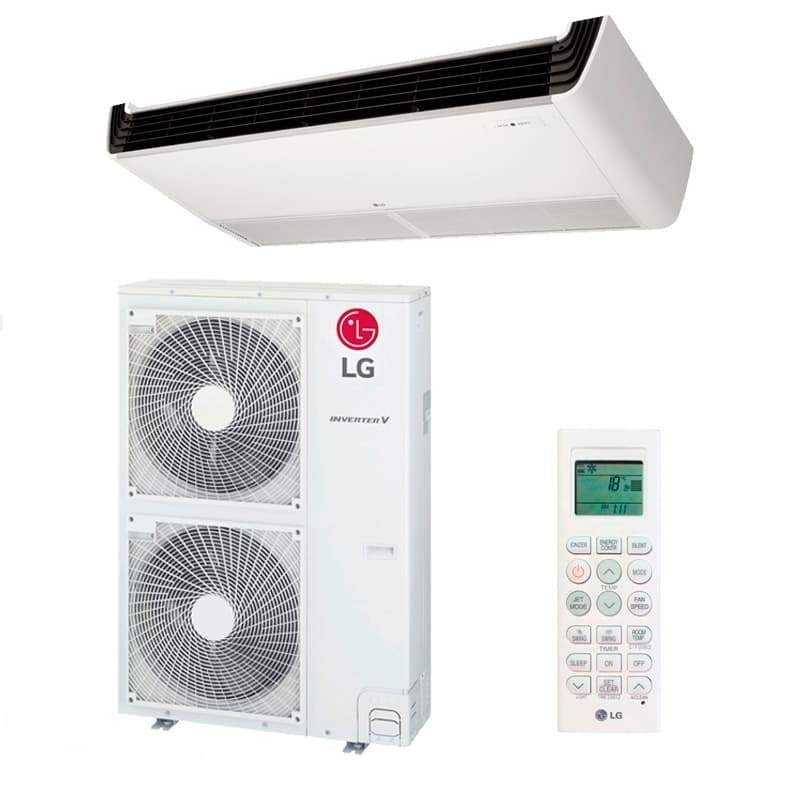

Air conditioning ceiling LG Comfort + 42 trif.
Referencia: TECCONFORT+ 42T
€2,947.49
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The ceiling LG Comfort + 42 three2
Great power three-phase commercial solution For suspended installation under ceiling, optimal for climate to large surfaces. This 12.1 kW system uses ecological refrigerant A-32 and distributes the current load in a balanced manner. It has a seasonal rating To ++ In cold, an air flow of 28.0 m³ / min and total professional durability.
• Refrigerator power: 12,10 kW
• Feeding: Three-phase
• Indoor Unit: UV42F.N20
• Ecological gas R32
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning ceiling LG model 42 three-phase (UV42F.N20) represents the high-power solution for industrial installations with three-phase feed 380-415V. With a refrigeration capacity of 12.10 kW and 13.50 kW heating, this System of the Free Combination Comfort + range incorporates indoor Unit of industrial format with robust dimensions 1.600 x 235 x 690 mm and high capacity inverter technology specifically optimized for industrial three-phase electrical infrastructures and intensive use 24/7.
Composed of the indoor Unit UV42F.N20 high capacity and outdoor Unit UUD3.U30 Specific for three-phase configuration, this system stands out for its industrial modulation capacity ranging from 4.80 to 14.16 kW in refrigeration and from 5.40 to 17.52 kW in heating. With a massive treated air volume of up to 28.0 m³ / min and sound levels controlled from 40 dB (A), it provides powerful air distribution by covering spaces of up to 140 m² with homogeneous comfort and maximum electrical stability.
The unit incorporates ecological R32 coolant with a preload of 3.0 kg, industrial refrigeration connections system 9.52 / 15.88 mm and flexible installation capability with maximum pipe length of 85 meters. Designed for intensive industrial use with three-phase feed 380-415V / 50 / 60Hz, It offers maximum reliability and electric stability for complex commercial facilities in industrial buildings, distribution centers, large commercial complexes and professional spaces demanding high capacity and stable three-phase feeding.
Main features
🏭
8.1kw industrial power 12.1kw
Industrial capacity of 12,10 kW refrigeration / 13.50 kW Heating with three-phase feeding 380V for demanding applications.
⚡
Broad modulation 4.8-17.5kW
Range of industrial modulation from 4.80 to 17.52 kW to adapt to extreme variable demands.
🔌
Three-phase stability 380V
Three-phase feeding 380-415V that guarantees maximum electric stability and balanced distribution of loads.
🌊
Industrial distribution 28 m³ / min
Massive air flow of 28.0 m³ / min for uniform distribution on large industrial surfaces.
🔄
Intensive use 24/7 three-phase
Designed for continuous and intensive operation in more demanding three-phase industrial applications.
🎯
COP 3.60 Efficient
Optimized performance coefficient for high three-phase power with controlled energy efficiency.
Three-phase technical specifications
| Feature | Three-phase specification |
|---|---|
| Pattern | UV42F.N20 + UUD3.U30 |
| Electrical supply | 3 / 380-415v / 50 / 60hz |
| Cold power (min-nom-max) | 4,80 - 12,10 - 14,16 kW |
| Power heat (min-nom-max) | 5,40 - 13,50 - 17,52 kW |
| Cold consumption (min-nom-max) | 0.80 - 3,90 - 5.07 kW |
| Heat consumption (min-nom-max) | 0.80 - 3,75 - 4,88 kW |
| Eer / seer | 3,10 / 6,30 |
| COP / SCOP | 3.60 / 4,10 |
| Energy label (cold / heat) | - / - |
| Dimensions Indoor Unit (Anxalxpr) | 1.600 x 235 x 690 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 950 x 1.380 x 330 mm |
| Air flow (high / medium / low) | 28.0 / 24.0 / 20.0 m³ / min |
| Internal sound pressure (high / medium / low) | 46/43/40 dB (A) |
| Exterior sound pressure | 51 dB (A) Cold / 52 dB (A) Heat |
| Weight Indoor Unit Outdoor | 36.7 kg / 89.0 kg |
| Refrigerant Gas / Preload | R32 / 3.0 kg |
| Liquid connections / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") |
| Maximum length pipe | 85 meters |
| Maximum | 30 meters |
| Range Running cold / heat | 52 ° C / -20 ° C / 18 ° C / -25 ° C |
| Flow outer air | 55 x 2 m³ / min (double fan) |
Benefits LG UV42F.N20 three-phase
✓
Three-phase industrial power for extreme applications
With 12,1kw three-phase, ideal for industrial buildings, large distribution centers and spaces of 120-140 m² with high demand.
✓
Upper electric stability in high power
Three-phase feeding 380V that guarantees balanced distribution of loads and lower electrical stress per phase.
✓
Exceptional industrial modulation up to 17.5kw
Three-phase modulation range from 4.8 to 17.5 kW that guarantees perfect adaptation to extreme variable demands.
✓
24/7 industrial reliability optimized
Three-phase configuration that reduces stress in components and improves durability for continuous intensive use.
Main applications
🏭
Three-phase Industrial Ships
Industrial ships, large workshops, production plants with existing three-phase 380V infrastructure.
📦
Distribution centers
Large logistics stores, distribution centers, deposits with high energy demand and three-phase supply.
🏪
Commercial megasuperficies
Large commercial, hypermarketed, broad shopping centers with three-phase infrastructure.
Why choose the LG UV42F.N20 three-phase?
Three-phase industrial power for extreme applications!
The LG UV42F.N20 Three-phase combined 12.1kw industrial power, exceptional modulation up to 17,5KW, 380V three-phase feeding and 24/7 reliability to provide superior air conditioning, distribution centers and spaces up to 140 m² that demand continuous performance and electrical stability.
Request advice for three-phase industrial installations!
08); ">
Three-phase industrial power
12.1KW with modulation up to 17.5KW in three-phase 380V configuration for industrial applications without commitments.
TECCONFORT+ 42T
Data sheet
- Brand
- LG
- Indoor Unit
- UV42F.N20
- Outdoor Unit
- UUD3.U30
- I send

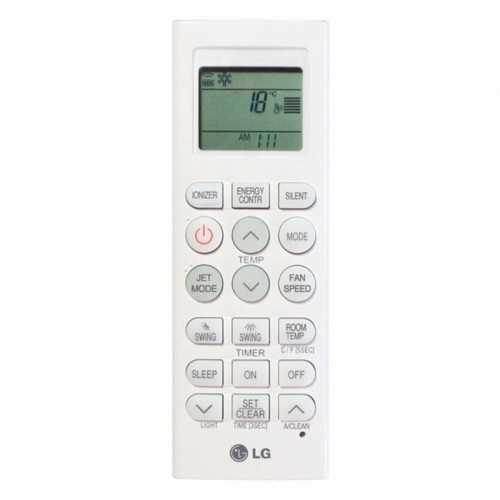

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- 3.900
- SEER
- 6,30
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.750
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1600 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 36,7
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 125,7
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
