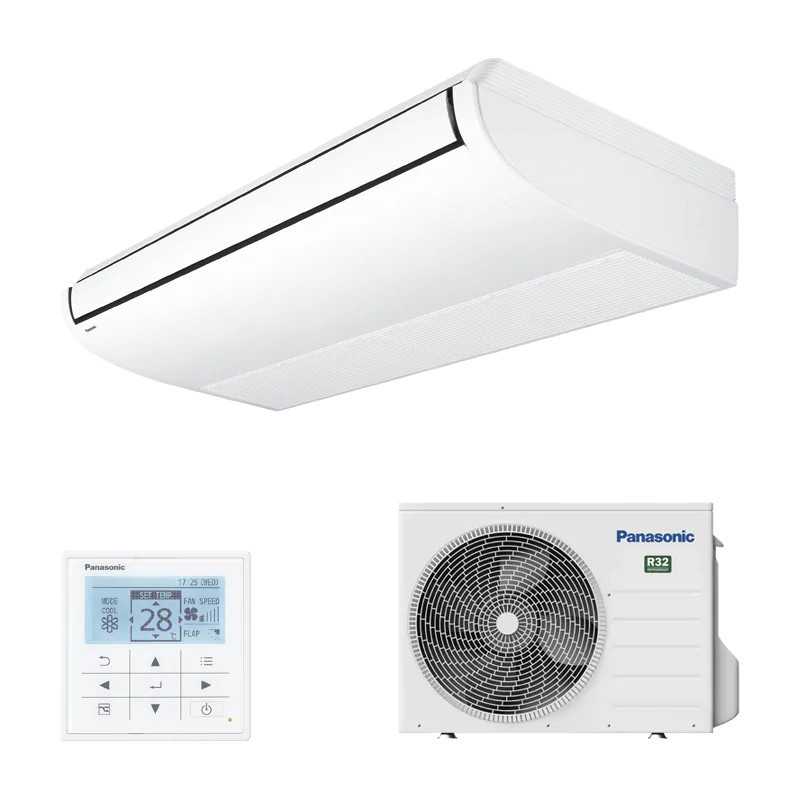

Panasonic PACi NX KIT-140PT3Z8 Trifásico
Sistema comercial trifásico de techo de máxima potencia perteneciente a la gama PACi NX Standard, optimizado con refrigerante ecológico R-32. Esta imponente solución de 13,4 kW distribuye la carga de manera perfectamente equilibrada entre sus tres fases (400V), siendo idónea para salas de gran volumen o locales comerciales de gran superficie. Cuenta con un diseño elegante de solo 235 mm de altura y la tecnología de protección activa nanoe™ X (Generador Mark 2) incorporada de serie.
• Potencia Frigorífica Nominal: 13,40 kW
• Alimentación Eléctrica: Trifásica (400V)
• Generador de Calidad de Aire: nanoe™ X Mark 2

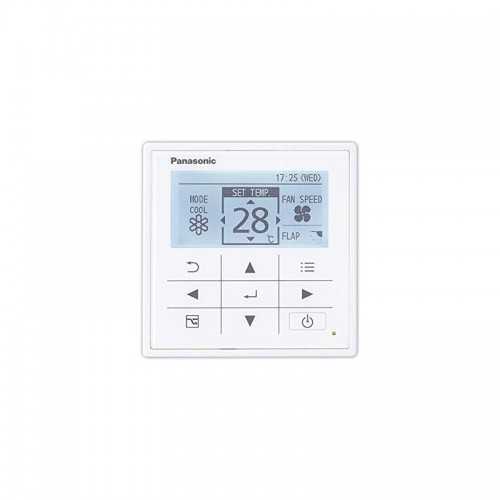

• Kit de Control Incluido: Mando CZ-RTC5B
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Panasonic PACi NX KIT-140PT3Z8 Trif.
Referencia: KIT-140PT3Z8
€4,376.19
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Panasonic PACi NX KIT-140PT3Z8 Trifásico
Sistema comercial trifásico de techo de máxima potencia perteneciente a la gama PACi NX Standard, optimizado con refrigerante ecológico R-32. Esta imponente solución de 13,4 kW distribuye la carga de manera perfectamente equilibrada entre sus tres fases (400V), siendo idónea para salas de gran volumen o locales comerciales de gran superficie. Cuenta con un diseño elegante de solo 235 mm de altura y la tecnología de protección activa nanoe™ X (Generador Mark 2) incorporada de serie.
• Potencia Frigorífica Nominal: 13,40 kW
• Alimentación Eléctrica: Trifásica (400V)
• Generador de Calidad de Aire: nanoe™ X Mark 2
• Kit de Control Incluido: Mando CZ-RTC5B
Security policy
Delivery policy
Refund policy
The Panasonic PACi NX KIT-140PT3Z8 represents the absolute cusp of the extreme industrial air conditioning of ceiling for commercial and industrial spaces of maximum demand. With extreme power 14.0kW cold and 14.0kW in heat with 400V triphase power, this sophisticated roof system represents the culmination of Japanese technology Panasonic eco-friendly R-32 coolant and nanoeTM technology X series, ideal for industrial megacomplete, large logistic centers, corporate auditoriums and industrial spaces up to 140 square meters.
Stressing for its exceptional efficiency of 145.3% and an outstanding EER of 2.98, this model offers maximum professional performance with three-phase power. Its silent professional functioning 36dB at minimum speed and the nanoeTM X technology series guarantee maximum comfort and quality of the interior air in industrial spaces where three-phase and extreme air conditioning of absolute elite are required.

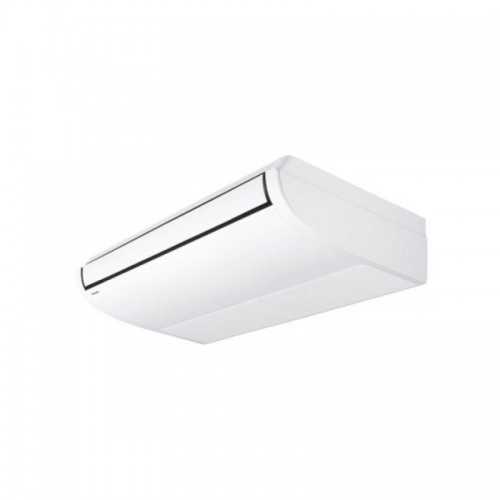

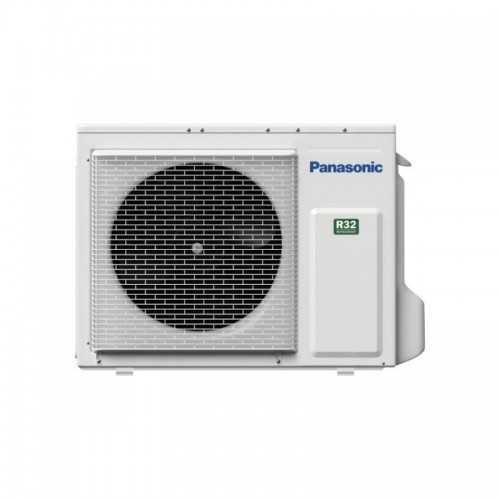

La indoor Unit S-1014PT3E is discreetly integrated into the false ceiling with industrial format 235 x 1590 x 690 mm while the outdoor Unit U-140PZ3E8 ensures robust three-phase and maximum performance. Its advanced features include latest generation Inverter+ technology, , horizontal air flow to 9.5m, , cZ-RTC6BL wall control with Bluetooth and optional WiFi connection for intelligent control with recognized japanese reliability and 5-year warranty.
Main features
▪ Extreme Power 14.0kW
14.0kW cold / 14.0kW heat with three phase feeding up to 140m2
🏆 Efficiency 145.3%
EER 2.98 and COP 3.70 for maximum energy efficiency
🔌 Tripha
400V 3F for extreme industrial installations
🌟 nanoeTM X Series
9.6 billion hydroxyl/sec radicals for better air quality
💨 Distribution 9.5m
Maximum horizontal air flow rate 9.5m for large rooms
🔇 Professional Silence 36dB
Silent professional operation for extreme applications
Technical Specifications
Included Advanced Technologies
✓ nanoeTM X Series
9.6 billion hydroxyl/sec radicals to purify the air
✓ Technology Inverter+
Ultra precise control for maximum energy efficiency
✓ Extreme three-phase feeding
400V 3F for maximum demand industrial installations
✓ Refrigerant Gas R-32 Ecological
Ecological gas with less environmental impact
Main applications
🏭 Megacomplete
Up to 140m2 with extreme triphase feeding
📦 Great Logistics
Macroalmacenes and distribution centers
🎭 Auditors XL
Conventional and mega-event centres
🏪 Hypermarkets
Megastores and large surfaces
Why choose the Panasonic PACi NX KIT-140PT3Z8?
The KIT-140PT3Z8 combines the legendary japanese quality Panasonic with cutting edge technology ideal for three-phase industrial megaprojects. With 14.0kW of power, efficiency of 145.3%, EER 2.98 and operation of 36dB professional silent, is the absolute for spaces that require extreme industrial air conditioning triphase, efficient and with exceptional air quality with japanese reliability and 5 year warranty.
14.0kW
Extreme Power400V
Extreme Triphasic140m2
Extreme CoverageGet yours Panasonic PACi NX KIT-140PT3Z8!
Japanese quality with extreme industrial ceiling air conditioning and nanoeTM X. Perfect for industrial mega-complete, large logistic centers and auditoriums up to 140m2 that require triphase power and maximum extreme comfort.
✓ Power 14.0kw three-phase extreme
✓ nanoeTM X series
✓ Japanese quality
KIT-140PT3Z8
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PT3E
- Outdoor Unit
- U-140PZ3E8
- I send
- Mando cable CZ-RTC5B
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 14.000
- Refrigerator capacity (kcal / h)
- 12.040
- Nominal consumption Cold (W)
- Energy class (cold)
- A++
- Heat capacity (W)
- 14.000
- Heat capacity (Kcal / h)
- 12.040
- Nominal heat consumption (W)
- 3.780
- Energy class (heat)
- A+
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1590 x 690 x 235
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- 127,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
