Samsung EHS Mono R290 AE050CXYDEK / EU + AE200DNWMPK / EU Allinone
5 KW Heating | COP 5,10 | SCOP A +++ | 200L deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Monkey R290 Allinone of 5 kW of heat power reaches a COP of 5.10 and Energy rating A +++. System reversible with 5 KW refrigerators (EER 3,91). All-in-one format with core charge DHW of integrated 200L. Used Natural coolant R290 (0.63 kg / 1,99 CO2EQ) of minimum environmental impact. Reaches Temperatures up to 75 ° C For maximum comfort. Twin Rotary Compressor High efficiency. Single-phase feed 1φ, 220-240V, 50 Hz. Nominal consumption Heating 1.000w. Outdoor Unit compact 798 × 1025 × 310 mm (86 kg) interior 1795 × 598 × 317 mm (132-142 kg). Incorporates Support resistance 2 (4) KW, circulator pump, 10L expansion vessel, magnetic filter. Hydraulic connection, integrated wifi control, silent mode 3 steps, control 2 zones. Load profile L, efficiency DHW 263% (A +). Ideal for single-family homes seeking maximum efficiency with ecological refrigerant.
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Samsung EHS Mono R290 AE050CXYDEK / EU + AE200DNWMPK / EU Heat Pump Allinone
Referencia: AE050CXYDEK_AE200DNWMPK
€8,076.27
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Samsung EHS Mono R290 AE050CXYDEK / EU + AE200DNWMPK / EU Allinone
5 KW Heating | COP 5,10 | SCOP A +++ | 200L deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Monkey R290 Allinone of 5 kW of heat power reaches a COP of 5.10 and Energy rating A +++. System reversible with 5 KW refrigerators (EER 3,91). All-in-one format with core charge DHW of integrated 200L. Used Natural coolant R290 (0.63 kg / 1,99 CO2EQ) of minimum environmental impact. Reaches Temperatures up to 75 ° C For maximum comfort. Twin Rotary Compressor High efficiency. Single-phase feed 1φ, 220-240V, 50 Hz. Nominal consumption Heating 1.000w. Outdoor Unit compact 798 × 1025 × 310 mm (86 kg) interior 1795 × 598 × 317 mm (132-142 kg). Incorporates Support resistance 2 (4) KW, circulator pump, 10L expansion vessel, magnetic filter. Hydraulic connection, integrated wifi control, silent mode 3 steps, control 2 zones. Load profile L, efficiency DHW 263% (A +). Ideal for single-family homes seeking maximum efficiency with ecological refrigerant.
Security policy
Delivery policy
Refund policy

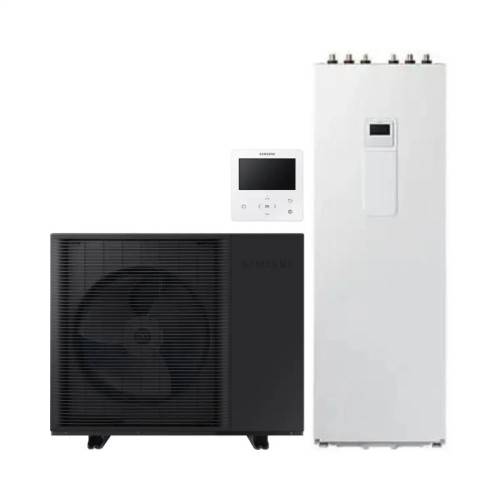

The Samsung EHS Mono R290 5KW Allinone (AE050CXYDEK/EU + AE200DNWMPK/EU) represents the most advanced and ecological solution for heating, cooling and hot water in homes up to 80m2. This monoblock system without bomb integrates direct hydraulic connection with the indoor Unit ClimateHub including deposit 200 litres DHW.
Highlights for its exceptional energy rating A+++/A+ with a SCOP of 5.00 and one COP 5.10, guaranteeing superior energy savings. Uses innovative coolant R290 Natural (propane) with a GWP of just 3, converting this equipment into the most respectful option with the market environment. The climatehub incorporates 10L expansion cup, electrical resistance, circulating pumps, magnetic filter and safety valves.

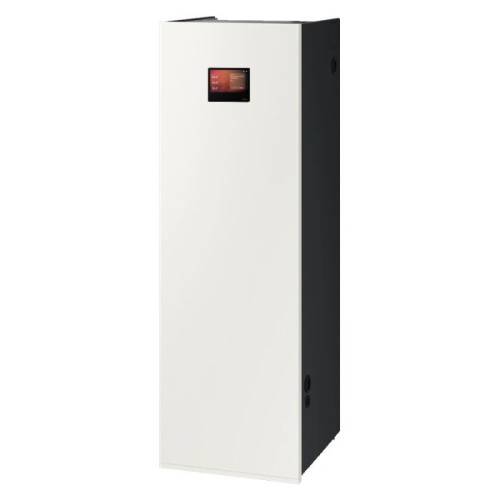

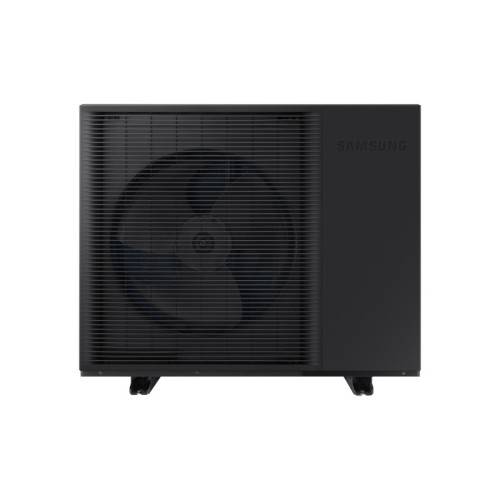

The outdoor Unit Ae050cxydek / EU measures 998 x 850 x 500 mm and weighs 86 kg, while the indoor Unit Climatehub Ae200dnwmpk / EU measures 598 x 1850 x 600 mm with a weight of 132-142 kg. Operates at extreme temperatures from -25 ° C up to + 35 ° C in heating and of 10 ° C A + 46 ° C in refrigeration, producing hot water up 75 ° C.
Main features
⚡ Allinone system complete
5KW Heating / cooling with ClimateHub and deposit DHW 200L integrated
🏆 Efficiency A +++ / A ++
SCOP 5.00 and COP 5.10 - Maximum certified energy savings
🌿 Refrigerant Gas R290 natural
Natural propane with GWP 3 - zero environmental impact
🔧 ClimateHub Integrated
Expansion glass, valves, pumps and filter included - Installation in a day
🌡️ DHW up to 75 ° C
High temperature sanitary hot water in 200L deposit
❄️ Extreme range -25 ° C
Funcionamiento garantizado en condiciones extremas
Technical specifications
Main benefits
✓ Full Allinone system
ClimateHub with expansion cup, pumps, valves and integrated 200L deposit
✓ Simplified installation
Hydraulic components pre-installed in ClimateHub - Mounting in a day
✓ Maximum efficiency at +++
SCOP 5.00 for minimum consumption and maximum savings
✓ Ecological R290
Refrigerant Gas natural GWP 3 - Environmental Engagement
Main applications
🏠 Small housing
Up to 80m² - complete solution
🏢 Apartments
All-in-one compact installation
🏡 Reforms
Substitution Ancient Boilers
🌱 Eco Projects
Sustainable Constructions
Why choose the Samsung EHS Mono R290 5KW?
This system represents the definitive evolution in domestic airplane for small housing. The climatehub integrates all the necessary hydraulic components, simplifying the installation until it can be carried out in a single day. Its natural R290 technology makes it the most ecological option on the market, with a practically nil environmental impact.
5.00
SCOPGWP 3
Ecological200l
DHW5kw
PowerWhy choose Samsung EHS Mono R290 5KW Allinone?
- ✓ Refrigerant Gas natural R290 with GWP of Solo 3 (the most ecological)
- ✓ Maximum efficiency at +++ with COP 5.10 (80% savings)
- ✓ Allinone format with integrated 200L deposit
- ✓ Temperatures up to 75 ° C (compatible with traditional radiators)
- ✓ Reversible system heating + Refrigeration
- ✓ Ultra silent 26/28 dB (A)
- ✓ Wifi control with App SmartThings
- ✓ Compatible with photovoltaic Smart grid
- ✓ Simplified installation - all in one
- ✓ Warranty Samsung - 5 years compressor
Get your Samsung EHS Mono R290 5KW!
The most efficient and ecological allinone solution of the market for small housing. Climatehub with integrated components and 200L deposit. Natural R290 technology for maximum environmental respect.
✓ SCOP 5.00 Certificate
✓ R290 GWP 3
✓ DHW 200L Included
✓ Official guarantee Samsung
AE050CXYDEK_AE200DNWMPK
Data sheet
- Brand
- Samsung
- Indoor Unit
- Ae200dnwmpk / EU
- Outdoor Unit
- Ae050cxydek / EU
- Accumulator DHW
- Incluido Formato AllInOne (200L)
- Refrigerant Gas
- R290
- Electrical supply
- Monofásica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 5.000
- Nominal consumption Cold (W)
- 1.280
- Heat capacity (W)
- 5.000
- Nominal heat consumption (W)
- 1.000
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 5,10
- EER
- 3,91
- Interconnection type
- Conexión Hidraulica
- Energy rating
- To +++
- Maximum heating (ºC)
- 75
- WiFi
- Opcional
- High Ud. Interior (mm)
- 1.850
- Width UD Interior (mm)
- 598
- Ud interior background (mm)
- 600
- Weight (kg)
- 142
- High Ud Exterior (mm)
- 850
- Width UD Exterior (mm)
- 998
- Outdoor background (mm)
- 500
- Weight Outside (kg)
- 86
