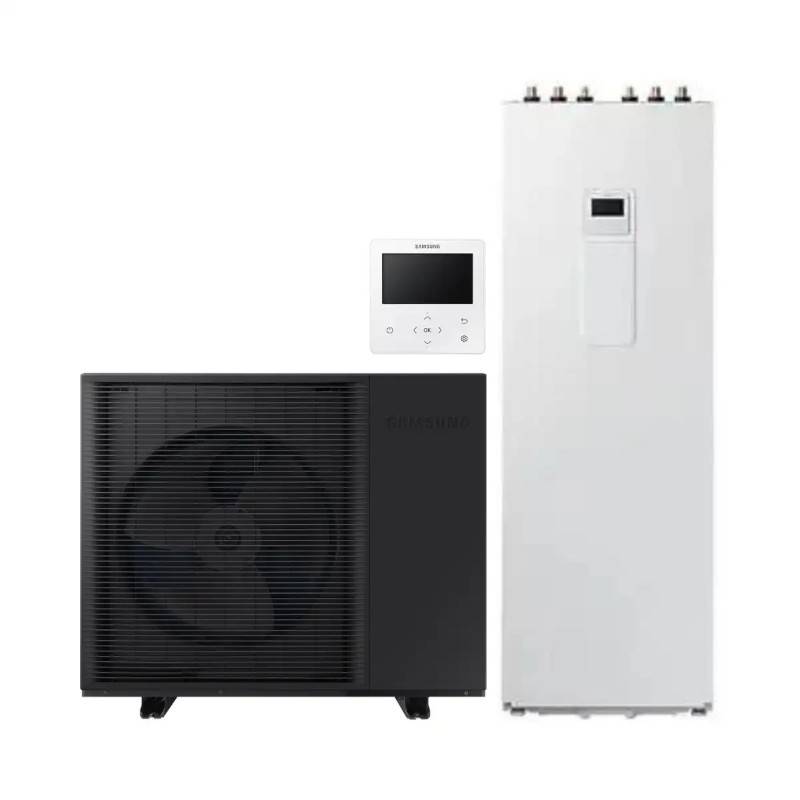

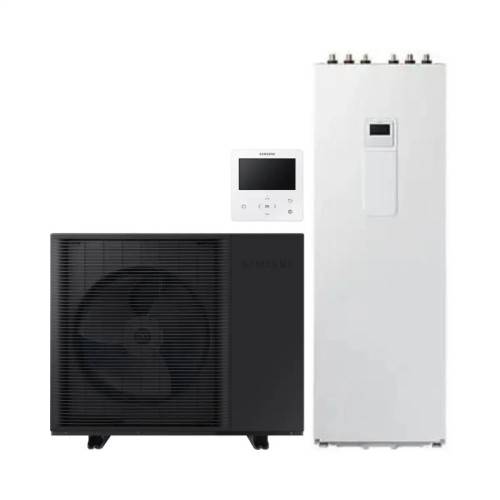

Samsung EHS Mono R290 AE080CXYDGK / EU + AE200DNWMPK / EU Three-phase Allinone
8 kW Heating | COP 4.91 | SCOP A +++ | 200L deposit | R290 Ecological | Three-phase 380-415V | 75 ° C.
The Samsung EHS Mono R290 Allinone three-phase 8 kW offers COP 4.91 and Energy rating A +++. System reversible with 8 KW Refrigerators (EER 3.90). All-in-one format with core charge DHW 200l. Used Natural coolant R290 (1.6 kg / 4,8t co2eq). Reaches Temperatures up to 75 ° C. Twin compressor three-phase Rotary of maximum efficiency. Three-phase feed 3Ï, 380-415V, 50 Hz For professional facilities. Nominal consumption 1.630w. Outdoor Unit 798 Ă 1025 Ă 310 mm (98 kg) interior 1795 Ă 598 Ă 317 mm (132-142 kg). Incorporates Resistance 6 kW, 10L expansion vessel, circulating pump, magnetic filter. WIFI MIM-E03FN control, silent mode, Set Smart Grid, Control 2 zones. Profile L, Efficiency DHW 263% (A +). Sound pressure 26/28 dB (A). Perfect for commercial applications, hotels or buildings with three-phase feeding that seek efficiency with ecological refrigerant.
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Samsung EHS Mono R290 AE080CXYDGK / EU + AE200DNWMPK / EU Heat Pump Three-phase allinone
Referencia: AE080CXYDGK_AE200DNWMPK
âŹ9,039.79
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Samsung EHS Mono R290 AE080CXYDGK / EU + AE200DNWMPK / EU Three-phase Allinone
8 kW Heating | COP 4.91 | SCOP A +++ | 200L deposit | R290 Ecological | Three-phase 380-415V | 75 ° C.
The Samsung EHS Mono R290 Allinone three-phase 8 kW offers COP 4.91 and Energy rating A +++. System reversible with 8 KW Refrigerators (EER 3.90). All-in-one format with core charge DHW 200l. Used Natural coolant R290 (1.6 kg / 4,8t co2eq). Reaches Temperatures up to 75 ° C. Twin compressor three-phase Rotary of maximum efficiency. Three-phase feed 3Ï, 380-415V, 50 Hz For professional facilities. Nominal consumption 1.630w. Outdoor Unit 798 Ă 1025 Ă 310 mm (98 kg) interior 1795 Ă 598 Ă 317 mm (132-142 kg). Incorporates Resistance 6 kW, 10L expansion vessel, circulating pump, magnetic filter. WIFI MIM-E03FN control, silent mode, Set Smart Grid, Control 2 zones. Profile L, Efficiency DHW 263% (A +). Sound pressure 26/28 dB (A). Perfect for commercial applications, hotels or buildings with three-phase feeding that seek efficiency with ecological refrigerant.
Security policy
Delivery policy
Refund policy
The Samsung EHS Mono R290 8kw Three-phase Allinone (AE080CXYDGK / EU + AE200DNWMPK / EU) is an efficient solution for heating, refrigeration and sanitary hot water (DHW) In medium-sized housing. This monoblock system three-phase integrates direct hydraulic connection with the indoor Unit Climatehub that includes a deposit of 200 litres DHW.
This model stands out for its energy rating A+++/A++ and his 4.60 scop, which allows optimal performance and considerable savings in energy. Use the refrigerant R290 Natural (propane), with a GWP of only 3, which makes it a high efficiency ecological system. The climatehub also includes 10L expansion cup, electrical resistance, circulating pumps, magnetic filter and safety valves.

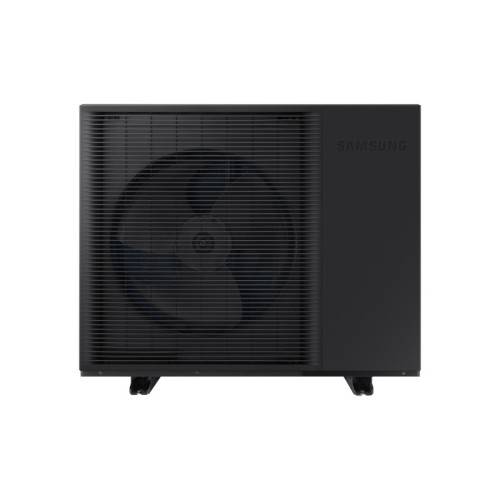

The outdoor Unit Ae080cxydgk / EU has some dimensions 998 x 850 x 500 mm and a weight of 86 kg, while the indoor Unit Ae200dnwmpk / EU measures 598 x 1850 x 600 mm and weigh between 132 and 142 kg. This equipment can operate at heating temperatures -25°C to +35°C and cooling 10°C to +46°C, ensuring its effectiveness in extreme conditions.
Main features
⥠Allinone system complete
8KW Heating / cooling with ClimateHub and deposit DHW 200L integrated
đ Efficiency A +++ / A ++
SCOP 4.60 - Guaranteed energy savings
đż Refrigerant Gas R290 natural
Natural propane with GWP 3 - zero environmental impact
đ§ ClimateHub Integrated
Expansion Glass, Valves, Pumps and Filter Included - Quick Installation
đĄïž DHW up to 75 ° C
High temperature sanitary hot water, ideal for any use
âïž Extreme range -25 ° C
Funcionamiento garantizado en condiciones extremas
Technical specifications
Main benefits
â Full Allinone system
ClimateHub with expansion cup, pumps, valves and integrated 200L deposit
â Simplified installation
Hydraulic components pre-installed in ClimateHub - Mounting in a day
â Maximum efficiency at +++
SCOP 4.60 for minimum consumption and maximum savings
â Ecological R290
Refrigerant Gas natural GWP 3 - Environmental Engagement
Get your Samsung EHS Mono R290 8kw Three-phase Allinone!
The most efficient and ecological Allinone solution of the market for large housing. Climatehub with integrated components and 200L deposit. Natural R290 technology for maximum environmental respect.
â Scop 4.60 Certificate
â R290 GWP 3
â DHW 200L Included
â Official guarantee Samsung
AE080CXYDGK_AE200DNWMPK
Data sheet
- Brand
- Samsung
- Indoor Unit
- Ae200dnwmpk / EU
- Outdoor Unit
- Ae080cxydgk / EU
- Accumulator DHW
- Incluido Formato AllInOne (200L)
- Refrigerant Gas
- R290
- Electrical supply
- TrifĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 8.000
- Nominal consumption Cold (W)
- 2.050
- Heat capacity (W)
- 8.000
- Nominal heat consumption (W)
- 1.630
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 4,91
- EER
- 3,90
- Interconnection type
- ConexiĂłn Hidraulica
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 75
- WiFi
- Opcional
- High Ud. Interior (mm)
- 1.850
- Width UD Interior (mm)
- 598
- Ud interior background (mm)
- 600
- Weight (kg)
- 142
- High Ud Exterior (mm)
- 850
- Width UD Exterior (mm)
- 998
- Outdoor background (mm)
- 500
- Weight Outside (kg)
- 98
