Samsung EHS Mono R290 AE120CXYDEK / EU + AE200DNWMPK / EU Allinone
12 kW Heating | COP 4.80 | SCOP A +++ | 200L deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Mono R290 Allinone of 12 kW develops COP 4,80 with Energy rating A +++ and Scop 4.90. System reversible with 12 kW of refrigeration capacity (EER 4.00). All-in-one format with core charge DHW of integrated 200L. Used Ecological refrigerant R290 (1.25 kg / 3,75t co2eq). Reaches Temperatures up to 75 ° C For the highest drive temperature. High power scroll compressor. Single-phase feed 1Ï, 220-240V, 50 Hz. Nominal consumption Heating 2.500w. Outdoor Unit 1248 Ă 950 Ă 460 mm (140 kg) interior 1795 Ă 598 Ă 317 mm (132-142 kg). Incorporates Support resistance 2 (4) KW, 10L expansion glass, circulating pump, safety valve. WIFI MIM-E03FN control, silent mode, Set Smart Grid, Control 2 zones. Profile L, Efficiency DHW 263% (A +). Sound pressure 28/30 dB (A). Ideal for large homes or small shops with high energy demand.
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts

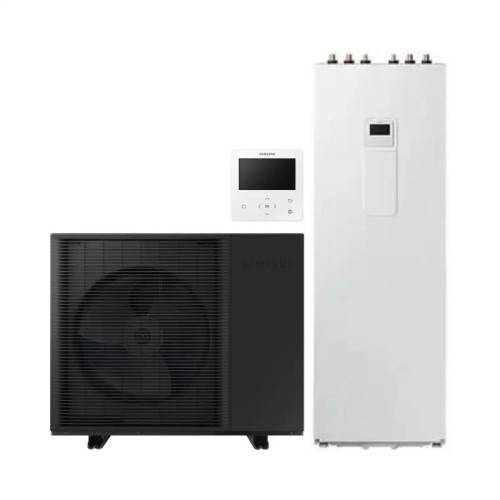

Aerotermia Samsung EHS Mono R290 AE120CXYDEK / EU + AE200DNWMPK / EU Heat Pump Allinone
Referencia: AE120CXYDEK_AE200DNWMPK
âŹ9,388.70
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Samsung EHS Mono R290 AE120CXYDEK / EU + AE200DNWMPK / EU Allinone
12 kW Heating | COP 4.80 | SCOP A +++ | 200L deposit | R290 Ecological | Single-phase | 75 ° C.
The Samsung EHS Mono R290 Allinone of 12 kW develops COP 4,80 with Energy rating A +++ and Scop 4.90. System reversible with 12 kW of refrigeration capacity (EER 4.00). All-in-one format with core charge DHW of integrated 200L. Used Ecological refrigerant R290 (1.25 kg / 3,75t co2eq). Reaches Temperatures up to 75 ° C For the highest drive temperature. High power scroll compressor. Single-phase feed 1Ï, 220-240V, 50 Hz. Nominal consumption Heating 2.500w. Outdoor Unit 1248 Ă 950 Ă 460 mm (140 kg) interior 1795 Ă 598 Ă 317 mm (132-142 kg). Incorporates Support resistance 2 (4) KW, 10L expansion glass, circulating pump, safety valve. WIFI MIM-E03FN control, silent mode, Set Smart Grid, Control 2 zones. Profile L, Efficiency DHW 263% (A +). Sound pressure 28/30 dB (A). Ideal for large homes or small shops with high energy demand.
Security policy
Delivery policy
Refund policy
The Samsung EHS R290 12kW AllInOne (AE120CXYDEK/EU + AE200DNWMPK/EU) is an advanced solution for heating, refrigeration and hot water (AE120CXYDEK/EU)DHW) in large houses. This monoblock system without bomb integrates direct hydraulic connection with the indoor Unit ClimateHub including deposit 200 litres DHW.
Highlights for its exceptional energy rating A+++/A+ with a SCOP of 4.70, guaranteeing superior energy savings. Uses innovative coolant R290 Natural (propane) with a GWP of just 3, converting this equipment into the most respectful option with the market environment. The climatehub incorporates 10L expansion cup, electrical resistance, circulating pumps, magnetic filter and safety valves.

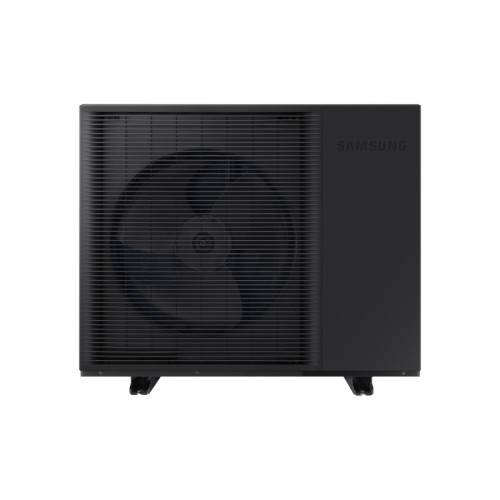

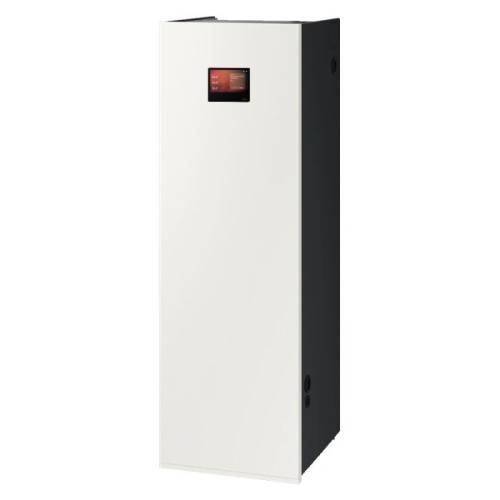

The outdoor Unit AE120CXYDEK/EU has some dimensions 998 x 850 x 500 mm and a weight of 86 kg. La indoor Unit Ae200dnwmpk / EU measures 598 x 1850 x 600 mm and weighs between 132 and 142 kg. This system is able to operate in a temperature range of heating -25°C to +35°C and cooling 10°C to +46°C, ensuring its performance even in extreme conditions.
Main features
⥠Allinone system complete
12KW Heating / cooling with ClimateHub and deposit DHW 200L integrated
đ Efficiency A +++ / A ++
SCOP 4.70 - Maximum certified energy savings
đż Refrigerant Gas R290 natural
Natural propane with GWP 3 - zero environmental impact
đ§ ClimateHub Integrated
Expansion glass, valves, pumps and filter included - Installation in a day
đĄïž DHW up to 75 ° C
High temperature sanitary hot water in 200L deposit
âïž Extreme range -25 ° C
Funcionamiento garantizado en condiciones extremas
Technical specifications
Main benefits
â Full Allinone system
ClimateHub with expansion cup, pumps, valves and integrated 200L deposit
â Simplified installation
Hydraulic components pre-installed in ClimateHub - Mounting in a day
â Maximum efficiency at +++
SCOP 4.70 for minimum consumption and maximum savings
â Ecological R290
Refrigerant Gas natural GWP 3 - Environmental Engagement
Get your Samsung EHS Mono R290 12KW Allinone!
The most efficient and ecological Allinone solution of the market for large housing. Climatehub with integrated components and 200L deposit. Natural R290 technology for maximum environmental respect.
â Scop 4.70 Certificate
â R290 GWP 3
â DHW 200L Included
â Official guarantee Samsung
AE120CXYDEK_AE200DNWMPK
Data sheet
- Brand
- Samsung
- Indoor Unit
- Ae200dnwmpk / EU
- Outdoor Unit
- Ae120cxydek / EU
- Accumulator DHW
- Incluido Formato AllInOne (200L)
- Refrigerant Gas
- R290
- Electrical supply
- MonofĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 12.000
- Nominal consumption Cold (W)
- 3.000
- Heat capacity (W)
- 12.000
- Nominal heat consumption (W)
- 2.500
- Diameter Liquid pipe
- Hydraulic connection
- Diameter Gas Pipe
- Hydraulic connection
- COP
- 4,80
- EER
- 4,00
- Interconnection type
- ConexiĂłn Hidraulica
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 75
- WiFi
- Opcional
- High Ud. Interior (mm)
- 1.850
- Width UD Interior (mm)
- 598
- Ud interior background (mm)
- 600
- Weight (kg)
- 142
- High Ud Exterior (mm)
- 1.018
- Width UD Exterior (mm)
- 1.270
- Outdoor background (mm)
- 530
- Weight Outside (kg)
- 140
