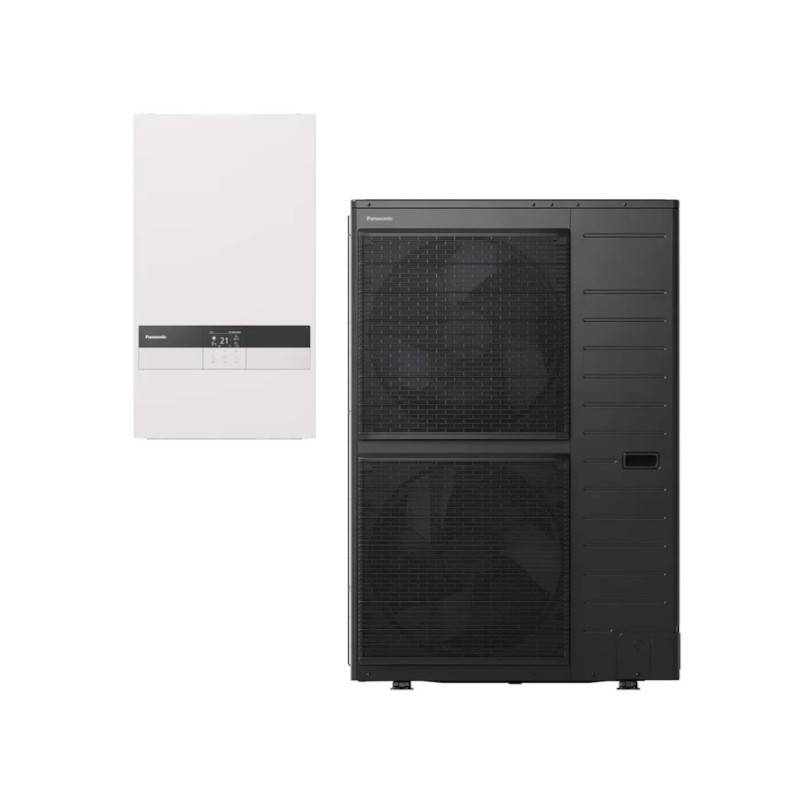

Panasonic Aquarea T-Cap R32 9 KW Kit-WXC09K3E8 Three-phase
R32 | 9 kW | A +++ | Three-phase 400 V | Without DHW
Constant power at -20 ° C in three-phase configuration. R32 and high efficiency for large residential or commercial residential applications.
Outdoor Unit: WH-UXZ09KE8 | Indoor Unit: Wh-sxc09k3e8
DHW: Not included (optional)
WiFi module included
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Panasonic Kit-WXC09K3E8 Aquarea Bible T-Cap R32 Three-phase Generation K
Referencia: KIT-WXC09K3E8
âŹ6,662.79
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
ÂĄÂĄMĂDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Panasonic Aquarea T-Cap R32 9 KW Kit-WXC09K3E8 Three-phase
R32 | 9 kW | A +++ | Three-phase 400 V | Without DHW
Constant power at -20 ° C in three-phase configuration. R32 and high efficiency for large residential or commercial residential applications.

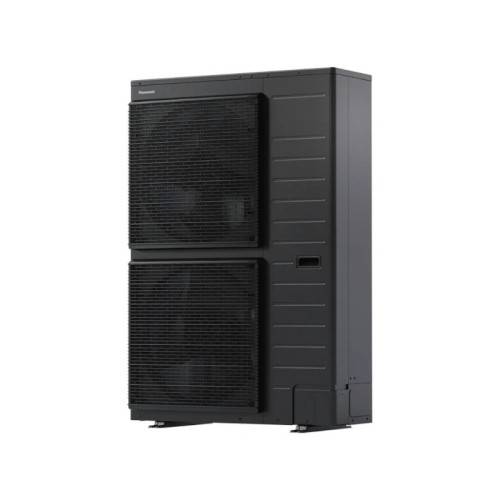

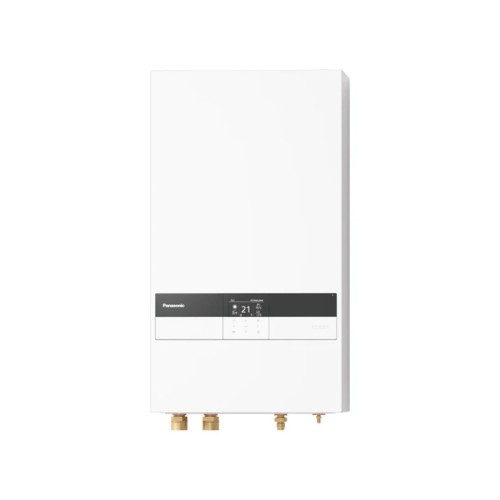

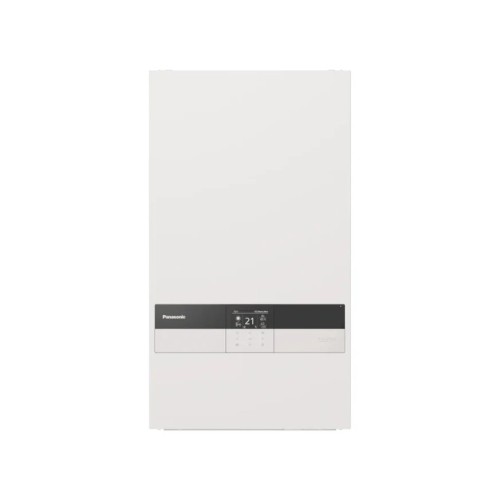

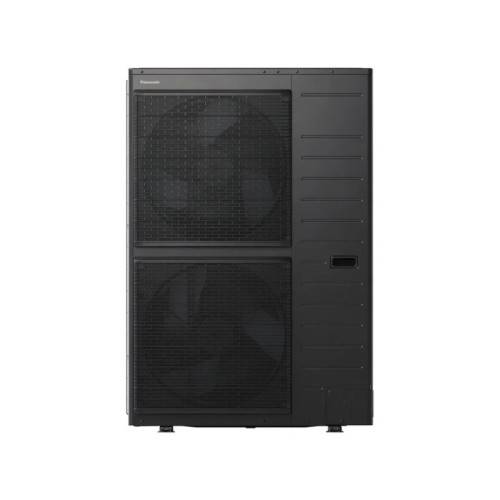

Outdoor Unit: WH-UXZ09KE8 | Indoor Unit: Wh-sxc09k3e8
DHW: Not included (optional)
WiFi module included
Security policy
Delivery policy
Refund policy
Panasonic Aquarea T-Cap R32 9 KW Three-phase (Kit-WXC09K3E8)
Bible System Generation K T-Cap - No accumulator DHW integrated
9 kW power Ecological R32 A +++ / A ++ SCOP 4.84 Three-phase 400 V
The Panasonic Aquarea Kit-WXC09K3E8 is part of the range T-cap generation k r32, recognized by his constant performance Even in extreme weather conditions. Thanks to technology T-Cap (Total Capacity), maintains its nominal power without additional electrical support, guaranteeing comfort and efficiency even -20 ° C Outside.
Is composed of the outdoor Unit Wh-uxz09ke8 and the indoor Unit Wh-sxc09k3e8, configuring a system three-phase Ideal for large homes and commercial buildings. Used R32 coolant (GWP 675), with an excellent balance between thermal efficiency and environmental sustainability.
This model offers Up to 60 ° C of output temperature in heating and reaches a SCOP of 4.84 under conditions A7 / W35. It is compatible with intelligent remote control Panasonic Smart cloud and integration systems Modbus or BMS.
Main features
âïž T-CAP technology
It maintains total power without resistance up to -20 ° C exterior.
đż Refrigerant Gas R32
Under GWP (675) and greater efficiency in thermal exchange.
đ„ High output temperature
Up to 60 ° C of driven water, suitable for radiators.
đ§ Flexibility DHW
Compatible with external deposits Panasonic of 200-300 L.
đ¶ Intelligent Control
Wi-fi integrated with SMART Cloud App and optional Modbus connection.
Technical specifications
| Parameter | Value |
|---|---|
| Model Outdoor Unit | Wh-uxz09ke8 |
| Model Indoor Unit | Wh-sxc09k3e8 |
| Type of system | Bibloc - Sin DHW integrated |
| Refrigerant Gas | R32 (1.95 kg) - GWP 675 |
| Power heating | 9.00 kW (A7 / W35) / 8.50 kW (A7 / W55) |
| Refrigeration Power | 8.00 kW (A35 / W18) |
| Nominal electrical consumption | 1.90 kW (A7 / W35) |
| COP / SCOP | 4.70 / 4.84 |
| Energy efficiency | A +++ (A7 / W35) / A ++ (A7 / W55) |
| Maximum water exit | 60 ° C |
| Minimum exterior temperature | -28 ° C Heating / +43 ° C cooling |
| Sound level outdoor Unit | 51 dB (a) Power / 37 dB (a) Pressure |
| Sound level indoor Unit | 27 dB (A) |
| Dimensions Outdoor Unit | 1410 Ă 1283 Ă 320 mm (107 kg) |
| Dimensions Indoor Unit | 890 Ă 340 Ă 500 mm (47 kg) |
| Power supply | 400 V / 3 pH / 50 Hz |
| Maximum current (MCA) | 11.5 |
| Compatibility DHW | External deposit Panasonic 200-300 L |
| Control and Management | Integrated Wi-Fi / Smart Cloud / Modbus Optional |
| Compressor guarantee | 5 years (Panasonic official) |
Total yield without resistance with Aquarea T-Cap 9 KW!
Ideal for spacious homes or buildings. Constant power up -20 ° C, Efficiency A +++, and remote control Smart Cloud.
â Technology T-CAP
â Ecological R32
â Three-phase 400 V
â Smart Cloud integrated
KIT-WXC09K3E8
Data sheet
- Brand
- Panasonic
- Indoor Unit
- Wh-sxc09k3e8
- Outdoor Unit
- Wh-uxz09ke8
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R32
- Electrical supply
- TrifĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 8.800
- Nominal consumption Cold (W)
- 2.830
- Heat capacity (W)
- 9.000
- Nominal heat consumption (W)
- 1.789
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- COP
- 5,03
- Scop (warm weather)
- 6,47
- EER
- 3,11
- Interconnection type
- Gas Refrigerante
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 60
- WiFi
- Incluido
- High Ud. Interior (mm)
- 892
- Width UD Interior (mm)
- 500
- Ud interior background (mm)
- 348
- Weight (kg)
- 38
- High Ud Exterior (mm)
- 1.340
- Width UD Exterior (mm)
- 900
- Outdoor background (mm)
- 320
- Weight Outside (kg)
- 88
