Daikin Altherma 4 SKBX1230AW

Aerotermia R-290 Three-phase Mural Design with External Accumulator 300L

Main features

New generation air stopermia system

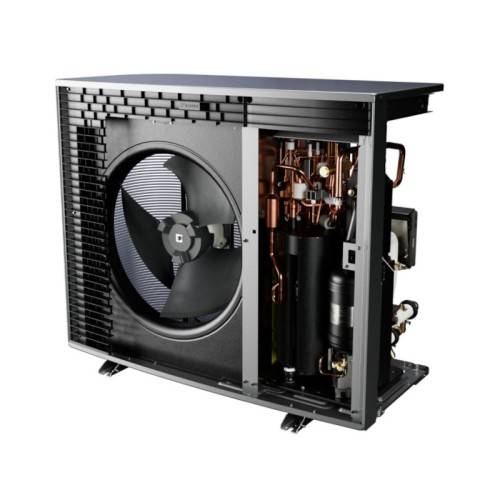

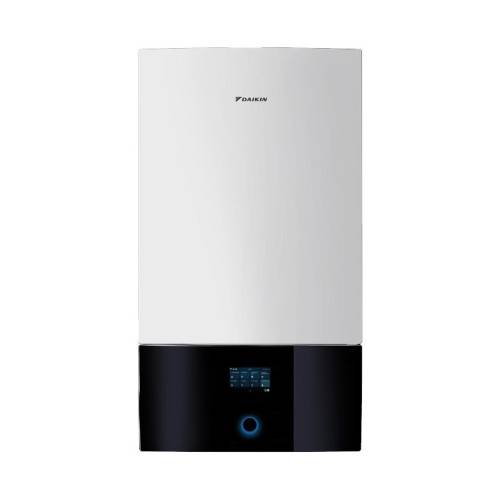

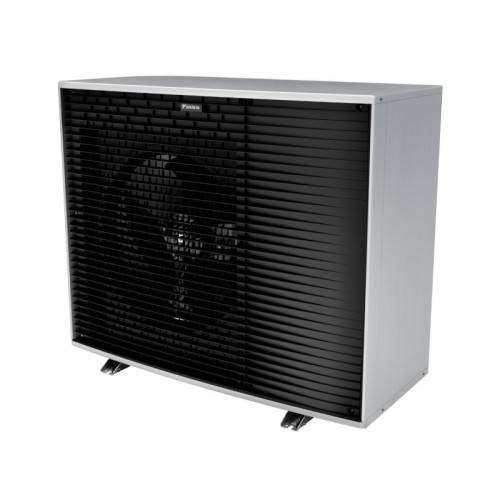

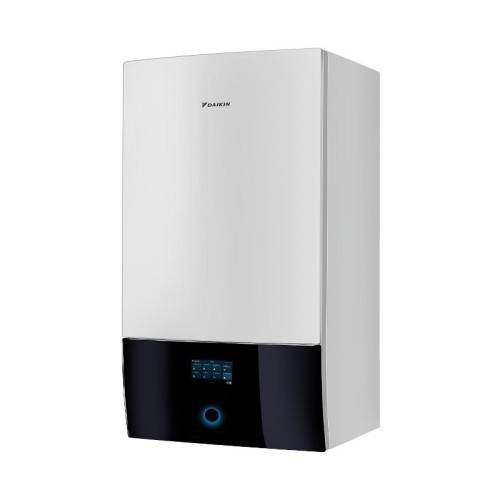

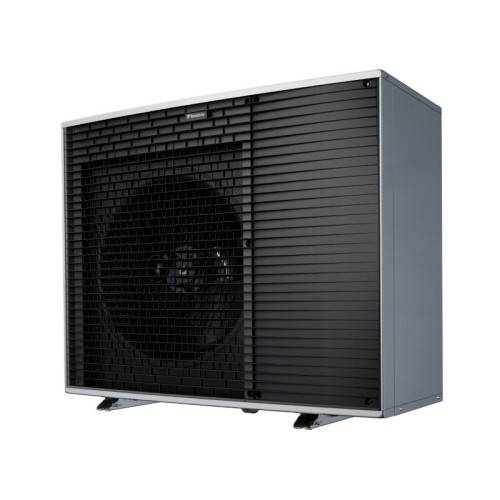

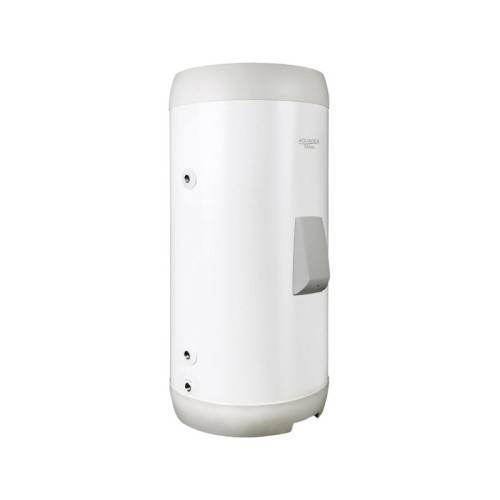

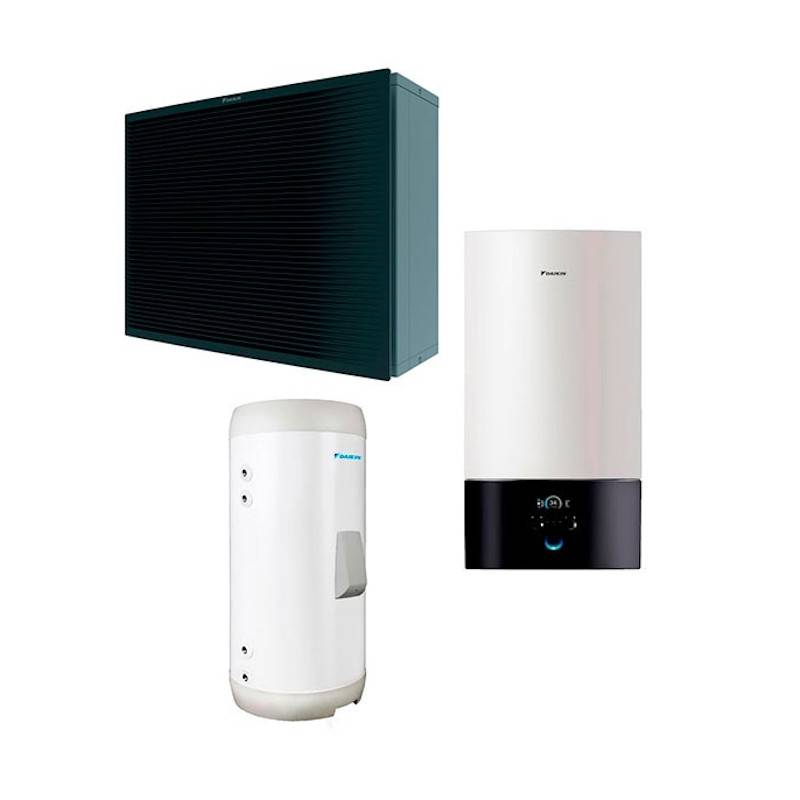

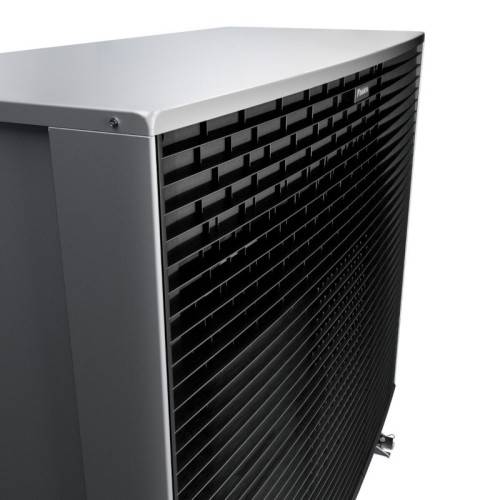

The Daikin Altherma 4 SKBX1230AW it represents the new generation of high-power residential airplane, designed to offer heating, refrigeration and sanitary hot water with maximum sustainability and efficiency. This complete system integrates the outdoor Unit three-phase Epsk12aw1, the High Power Wall Hydrokit Epbx14a4v and the accumulator of DHW external EKHWS300D3V3 of 300 liters.

Delivery 12 KW of heat power to -7 ° C with exceptional energy efficiency To +++. Its HIDROSPLIT technology confines the natural refrigerant R-290 (with a PCA of only 3) exclusively in the outdoor Unit, guaranteeing maximum security and a minimum environmental impact, significantly contributing to the reduction of the carbon footprint.

Innovative technologies and advantages

• Refrigerant Gas Ecological R-290: PCA of only 3, compared to 675 of the R-32. Maximum respect for the environment.
• Drive temperature 75 ° C: Ideal for boiler replacement, capable of boosting water at 75 ° C even with -15 ° C exterior.
• Extreme performance: It maintains its operation under conditions of up to -25 ° C exterior.
• Ultra Silent: Only 52 DBA in the outdoor Unit and 30 DBA in the interior hydrokit, imperceptible in operation.
• Three-phase modulating support resistance: 9 KW modulating in steps of 500W for energy efficiency optimization.
• MMI Touch Screen: Intuitive interface with a quick start-up and total system control.
• Connectivity WiFi Onecta: Full remote control through the app Daikin Onecta. Monitoring and programming from anywhere.
• Photovoltaic optimization: Compatible with photovoltaic installations to maximize energy self-consumption.
• Greater installation distance: Up to 50 meters maximum tubing length.
• Remote configuration for installers: Monitoring and remote configuration, facilitating preventive maintenance.

Ideal applications

• Replacement of media / high power boilers: Drive temperature of 75 ° C, compatible with existing conventional radiators.
• Single-sided single-family homes: Complete air conditioning solution and DHW with maximum efficiency for high demands.
• Rehabilitations of greater magnitude: Compact mural design ideal for limited spaces with high demand.
• Frías Climatic Zones: GUARANTEED OPERATION Up to -25 ° C exteriors.
• Facilities with photovoltaics: Optimization of solar self-consumption with greater capacity.
• Sustainable projects: Refrigerant Gas natural R-290 with PCA of only 3.
• Small Business Facilities: Offices, small shops or premises with climate needs.

Advantages and benefits

• Maximum energy efficiency: Classification A +++ in heating, drastic reduction of energy consumption.
• Maximum sustainability: Refrigerant Gas R-290 with PCA of 3, 99.6% less impact than R-32.
• Silent performance: 52 dBA exterior and 30 dBA interior, total acoustic comfort.
• High drive temperature: 75°C to -15°C exterior, ideal for conventional radiators and high demands.
• Great capacity of DHW: 300L accumulator with A+ rating, abundant hot water for large families.
• Compact wall design: Space optimization with wall installation.
• Greater Triphasic Power: 12 kW of heat power with 9 kW support resistance modulant.
• Intelligent control: APP Onecta with integrated WiFi for full remote management.
• Installation versatility: Compatible with radiant soil, radiators and fan-coils. Higher pipe length (50m).
• Ease of start-up: MMI touch screen with intelligent assistant.
• Prepared for the future: Photovoltaic optimization and compatible with third-party systems.

Technical specifications of the complete system
