Panasonic Aquarea Bible R32 9 kW three-phase K series
R32 | 9 kW | A +++ | Three-phase 400 V | Without DHW
Three-phase version of 9 kW for high demand. R32, Efficiency A +++ and compatibility with deposits of DHW External and intelligent control.

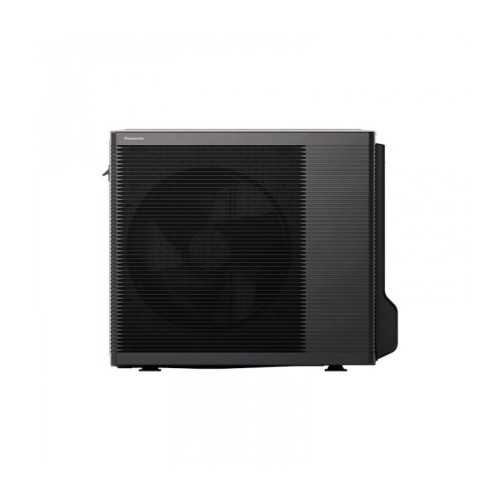

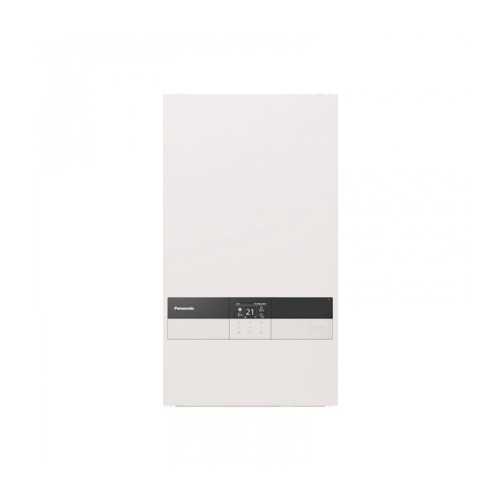

Outdoor Unit: WH-UDZ09KE8 | Indoor Unit: Wh-sdc09k3e8
DHW: Not included (optional)
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

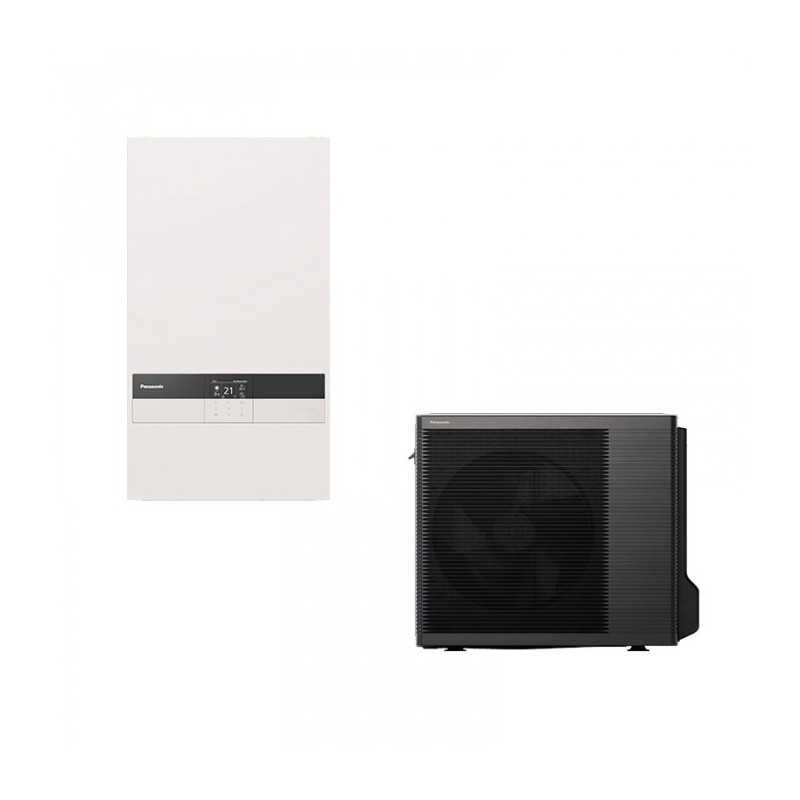

Aerotermia Panasonic Kit-WC09K3E8 Aquarea Bible Generation K R32 Three-phase
Referencia: KIT-WC09K3E8
€5,398.34
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
¡¡MÓDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Panasonic Aquarea Bible R32 9 kW three-phase K series
R32 | 9 kW | A +++ | Three-phase 400 V | Without DHW
Three-phase version of 9 kW for high demand. R32, Efficiency A +++ and compatibility with deposits of DHW External and intelligent control.
Outdoor Unit: WH-UDZ09KE8 | Indoor Unit: Wh-sdc09k3e8
DHW: Not included (optional)
Security policy
Delivery policy
Refund policy
Panasonic Aquarea R32 9 KW three-phase (kit-wc09k3e8)
Bible System Generation K R32 - No accumulator DHW integrated
9 kW power Ecological R32 A +++ / A ++ SCOP 4.84 Three-phase 400 V
The Panasonic Aquarea Kit-WC09K3E8 It is a heat pump Three-phase Generation Bible K R32, designed to offer maximum performance in medium-sized homes and small commercial facilities. Your Inverter Compressor Panasonic It maintains high energy efficiency even with outer temperatures up to -25 ° C, offering a stable heating and refrigeration solution throughout the year.
The team is formed by the outdoor Unit Wh-udz09ke8 and the indoor Unit Wh-sdc09k3e8, both optimized to work with R32 coolant Low GWP (675). Your energy rating A +++ (A7 / W35) Ensures a reduced consumption and a long service life of the system. Serial control allows connection to Panasonic Smart cloud and BMS systems for centralized management.
The heat pump offers a maximum drive temperature of 60 ° C, so it is compatible with both traditional radiators and radiant soil. Its reduced sound level guarantees silent and comfortable operation.
Main features
⚙️ Three-phase Bible System
Hydraulic separation for greater efficiency and reliability in professional facilities.
🌿 Refrigerant Gas R32
Under GWP (675) and high thermal capacity for better performance.
🔥 High drive temperature
Up to 60 ° C, compatible with radiators and underfloor heating.
💧 Flexibility DHW
Compatible with accumulators Panasonic from 200 to 300 l (optional).
📶 Intelligent Control
Wi-fi integrated with SMART Cloud and Connectivity Modbus / BMS.
Technical specifications
| Parameter | Value |
|---|---|
| Model Outdoor Unit | Wh-udz09ke8 |
| Model Indoor Unit | Wh-sdc09k3e8 |
| Type of system | Bibloc - Sin DHW integrated |
| Refrigerant Gas | R32 (1.95 kg) - GWP 675 |
| Power heating | 9.00 kW (A7 / W35) / 8.60 kW (A7 / W55) |
| Refrigeration Power | 8.00 kW (A35 / W18) |
| Nominal electrical consumption | 1.95 kW (A7 / W35) |
| COP / SCOP | 4.61 / 4.84 |
| Energy efficiency | A +++ (A7 / W35) / A ++ (A7 / W55) |
| Max. leak | 60 ° C |
| Outside temperature range | -25 ° C to +43 ° C |
| Sound level outdoor Unit | 52 dB (a) Power / 38 dB (a) Pressure |
| Sound level indoor Unit | 27 dB (A) |
| Dimensions Outdoor Unit | 1110 × 1100 × 420 mm (91 kg) |
| Dimensions Indoor Unit | 890 × 340 × 500 mm (47 kg) |
| Power supply | 400 V / 3 pH / 50 Hz |
| Maximum current (MCA) | 10.8 a |
| Compatibility DHW | External deposits Panasonic 200-300 L |
| Control and Management | Integrated Wi-Fi / Smart Cloud / BMS / Modbus |
| Compressor guarantee | 5 years (Panasonic official) |
Three-phase efficiency with Panasonic Aquarea 9 kW R32 Generation K!
Maximum performance in cold climates with Inverter technology Panasonic and smart control Smart Cloud. Designed for efficiency and silence.
✓ 9 kW of power
✓ Ecological R32
✓ Three-phase 400 V
✓ Smart Cloud integrated
KIT-WC09K3E8
Data sheet
- Brand
- Panasonic
- Indoor Unit
- Wh-sdc09k3e8
- Outdoor Unit
- Wh-udz09ke8
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 8.200
- Nominal consumption Cold (W)
- 3.015
- Heat capacity (W)
- 9.000
- Nominal heat consumption (W)
- 1.978
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 5/8
- COP
- 4,55
- Scop (warm weather)
- 4,44
- EER
- 2,71
- Interconnection type
- Gas Refrigerante
- Energy rating
- To +++
- Maximum heating (ºC)
- 60
- WiFi
- Incluido
- High Ud. Interior (mm)
- 892
- Width UD Interior (mm)
- 500
- Ud interior background (mm)
- 348
- Weight (kg)
- 38
- High Ud Exterior (mm)
- 795
- Width UD Exterior (mm)
- 875
- Outdoor background (mm)
- 320
- Weight Outside (kg)
- 55
