Panasonic Aquarea Bible R32 16 kW three-phase K series
R32 | 16 kW | A +++ | Three-phase 400 V | Without DHW
Maximum three-phase bibloc power with R32 and +++ efficiency. Professional or large-scale residential focus, ready for DHW External and advanced management.

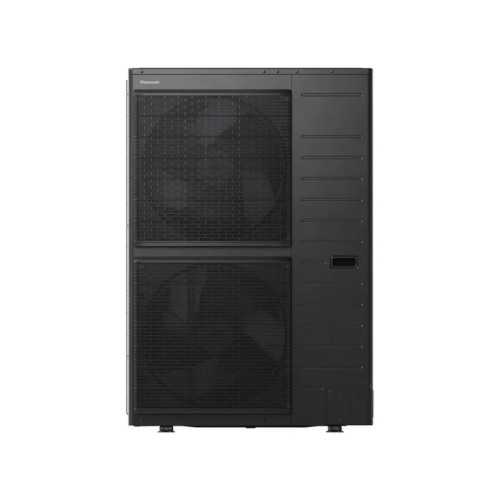

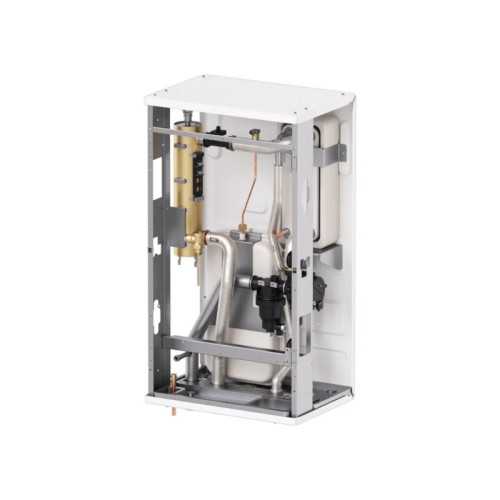

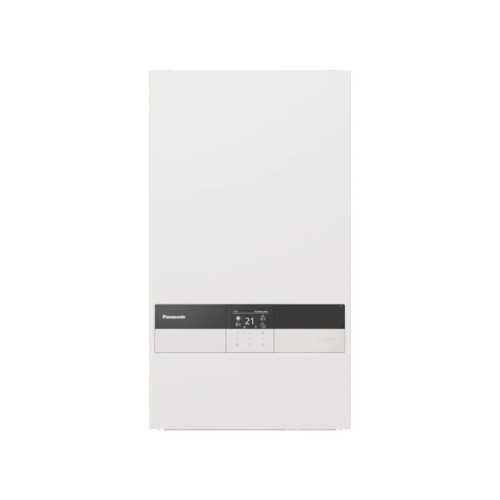

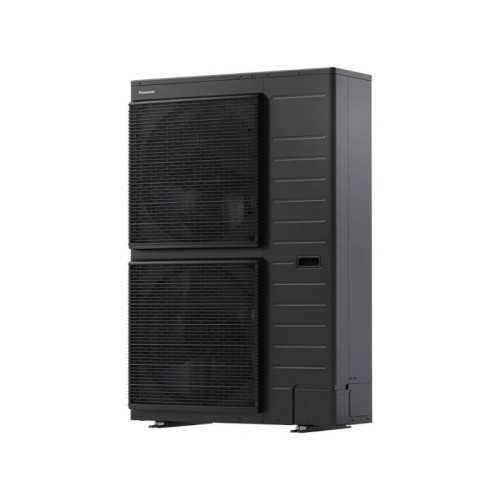

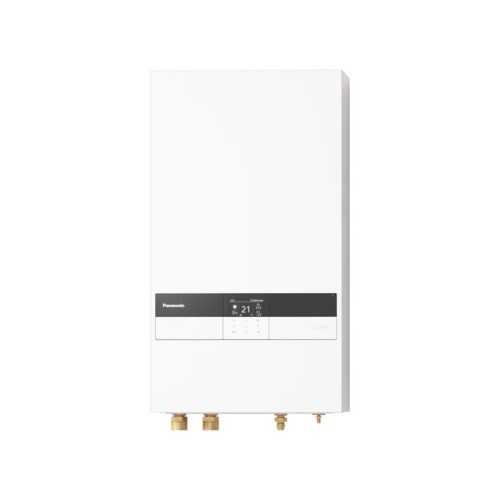

Outdoor Unit: WH-UDZ16KE8 | Indoor Unit: Wh-sdc16k9e8
DHW: Not included (optional)
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts
Aerotermia Panasonic Kit-WC16K9E8 Aquarea Bible Generation K R32 Three-phase
Referencia: KIT-WC16K9E8
âŹ7,515.90
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
ÂĄÂĄMĂDULO WI-FI INCLUIDO EN EL PRECIO!!
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
Panasonic Aquarea Bible R32 16 kW three-phase K series
R32 | 16 kW | A +++ | Three-phase 400 V | Without DHW
Maximum three-phase bibloc power with R32 and +++ efficiency. Professional or large-scale residential focus, ready for DHW External and advanced management.
Outdoor Unit: WH-UDZ16KE8 | Indoor Unit: Wh-sdc16k9e8
DHW: Not included (optional)
Security policy
Delivery policy
Refund policy

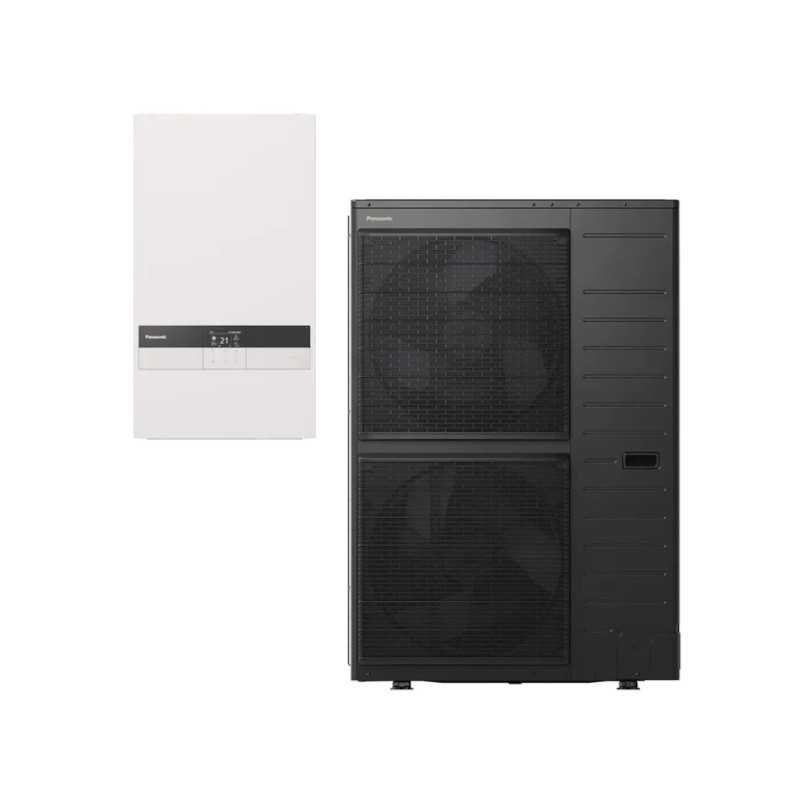

Panasonic Aquarea R32 16 KW three-phase (kit-wc16k9e8)
Bible System Generation K R32 - No accumulator DHW integrated
16 kW power Ecological R32 A +++ / A ++ SCOP 4.84 Three-phase 400 V
The Panasonic Aquarea Kit-WC16K9E8 Represents the maximum power of the range Generation K R32, ideal for Large housing, buildings or commercial applications. Your Bible system offers heating, refrigeration and production of DHW (optional) with Stable performance even at low exterior temperatures.
Composed of the outdoor Unit Wh-udz16ke8 and the indoor Unit Wh-sdc16k9e8, use R32 coolant With a low GWP of 675, which makes it a more sustainable option against R410a. Reaches a SCOP of 4.84 (A7 / W35) and Energy Classification A +++ / A ++.
Your High drive temperature of 60 ° C It allows you to combine it with conventional radiators or underfloor soil. Includes remote control with intuitive LCD screen and is fully compatible with the app Panasonic Smart cloud and management systems BMS / Modbus.
Main features
âïž High power for large spaces
16 kW of power for buildings and large housing.
đż Refrigerant Gas R32
GWP 675 - High energy efficiency and lower load.
đ„ High output temperature
Up to 60 ° C of driven water, ideal for radiators.
đ§ Flexible system DHW
Compatible with external deposits of 200-500 L.
đ¶ Advanced remote control
Wi-fi integrated, App Smart Cloud and voice control.
Technical specifications
| Parameter | Value |
|---|---|
| Model Outdoor Unit | Wh-udz16ke8 |
| Model Indoor Unit | Wh-sdc16k9e8 |
| Type of system | Bibloc - Sin DHW integrated |
| Refrigerant Gas | R32 (2.35 kg) - GWP 675 |
| Power heating | 16.00 kW (A7 / W35) / 15.60 kW (A7 / W55) |
| Refrigeration Power | 14.00 kW (A35 / W18) |
| Nominal electrical consumption | 3.80 kW (A7 / W35) |
| COP / SCOP | 4.20 / 4.84 |
| Energy efficiency | A +++ (A7 / W35) / A ++ (A7 / W55) |
| Max. leak | 60 ° C |
| Outside temperature range | -25 ° C to +43 ° C |
| Sound level outdoor Unit | 55 dB (a) Power / 39 dB (a) Pressure |
| Sound level indoor Unit | 27 dB (A) |
| Dimensions Outdoor Unit | 1410 Ă 1283 Ă 320 mm (112 kg) |
| Dimensions Indoor Unit | 890 Ă 340 Ă 500 mm (47 kg) |
| Power supply | 400 V / 3 pH / 50 Hz |
| Maximum current (MCA) | 14.5 |
| Compatibility DHW | External deposit Panasonic 200-500 L |
| Control and Management | Integrated Wi-Fi / Smart Cloud / Modbus / BMS |
| Compressor guarantee | 5 years (Panasonic official) |
Maximum power and efficiency with Panasonic Aquarea 16 kW R32!
The most powerful generation system K. Ideal solution for large homes or commercial projects with constant thermal requirement.
â 16 KW of power
â Ecological R32
â Three-phase 400 V
â Smart Cloud Control
KIT-WC16K9E8
Data sheet
- Brand
- Panasonic
- Indoor Unit
- Wh-sdc16k9e8
- Outdoor Unit
- Wh-udz16ke8
- Accumulator DHW
- No incluido
- Refrigerant Gas
- R32
- Electrical supply
- TrifĂĄsica
- Reversible or only heat
- Reversible
- Refrigerator capacity (W)
- 15.500
- Nominal consumption Cold (W)
- 4.306
- Heat capacity (W)
- 16.000
- Nominal heat consumption (W)
- 3.712
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- COP
- 4,31
- Scop (warm weather)
- 4,46
- EER
- 3,60
- Interconnection type
- Gas Refrigerante
- Energy rating
- To +++
- Maximum heating (ÂșC)
- 60
- WiFi
- Incluido
- High Ud. Interior (mm)
- 892
- Width UD Interior (mm)
- 500
- Ud interior background (mm)
- 348
- Weight (kg)
- 38
- High Ud Exterior (mm)
- 1.340
- Width UD Exterior (mm)
- 900
- Outdoor background (mm)
- 320
- Weight Outside (kg)
- 103
