High temperature, absolute comfort and exceptional silence
The air pump airplane Samsung EHS Monkey HT Quiet AE080BXYDEG / EU of 8 kW represents excellence in sustainable air conditioning for reform projects, replacement of boilers and new work. This advanced monophastic monobloc system is able to promote Water at 75 ° C (or operate in a stable way at 70 ° C continuous) directly through the refrigerator cycle with refrigerant R32. Thanks to its Scroll compressor with Flash injection, it guarantees an uninterrupted heating even with extreme outer temperatures up to -30 ° C. Its sophisticated premium design reduces sound emissions at only 35 dB (A) in night mode.
Includes MIM-E03CN controller
8,00 kW heating High Temperature A +++
Discover the efficient air conditioning of the future in https://tualmacendelclima.com/en/
ÂżAny doubt about the product?
Talk to us and consult us. We will solve all your doubts

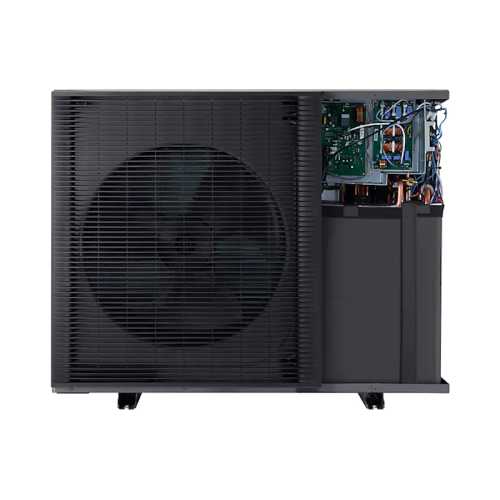

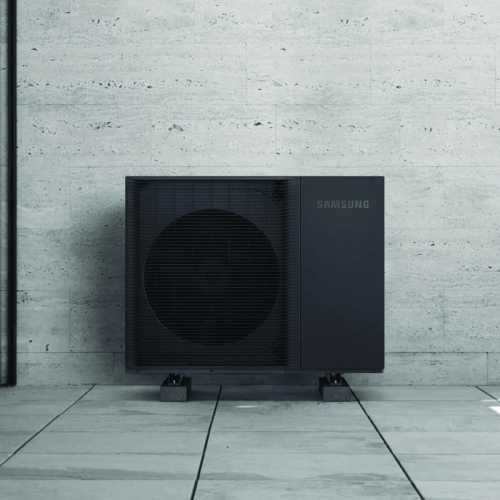

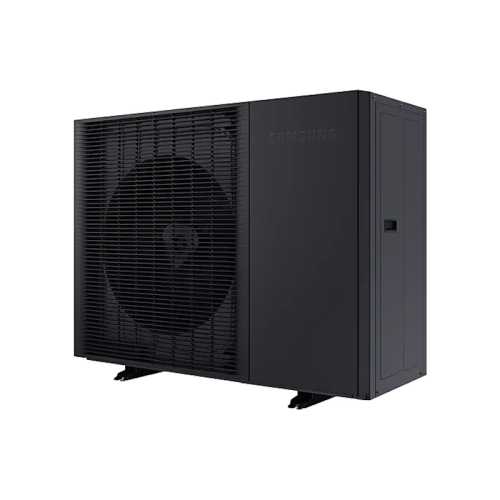

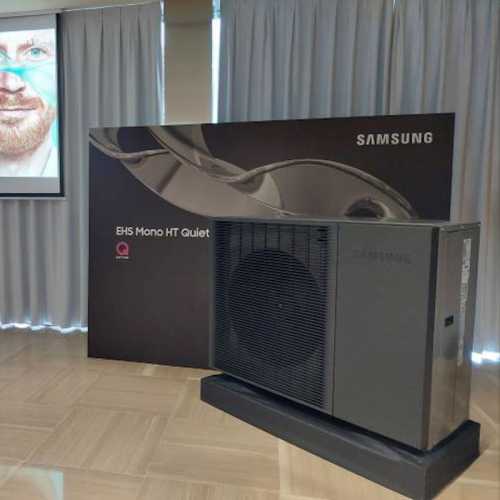

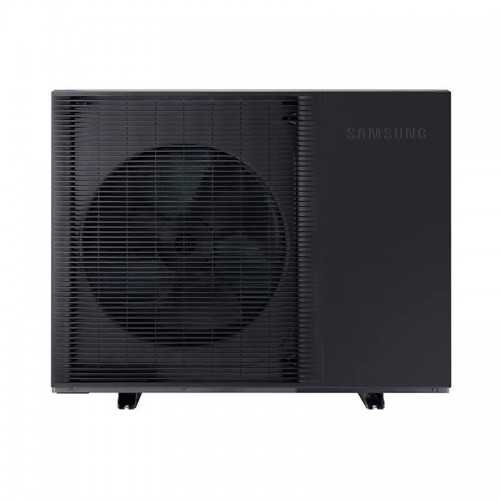

Aerotermia Monobloc EHS Monkey Ht LN AE080BXYDEG / EU R32 8KW Samsung
Referencia: AE080BXYDEG/EU
âŹ6,056.44
Tax included
î We are currently out of stock.
Ask us about availability!!
EnvĂo GRATIS en España (PenĂnsula) a partir de 300⏠+ info
Email has been sent successfully.
Incluye Controlador MIM-E03EN
Calcular Gastos de EnvĂo
đĄïž Pago Seguro â
GarantĂa Oficial
High temperature, absolute comfort and exceptional silence
The air pump airplane Samsung EHS Monkey HT Quiet AE080BXYDEG / EU of 8 kW represents excellence in sustainable air conditioning for reform projects, replacement of boilers and new work. This advanced monophastic monobloc system is able to promote Water at 75 ° C (or operate in a stable way at 70 ° C continuous) directly through the refrigerator cycle with refrigerant R32. Thanks to its Scroll compressor with Flash injection, it guarantees an uninterrupted heating even with extreme outer temperatures up to -30 ° C. Its sophisticated premium design reduces sound emissions at only 35 dB (A) in night mode.
Includes MIM-E03CN controller
8,00 kW heating High Temperature A +++
Discover the efficient air conditioning of the future in https://tualmacendelclima.com/en/
Security policy
Delivery policy
Refund policy
High temperature monobloc aerothermia | EHS Monkey Ht Quiet
Samsung EHS Monkey Ht Quiet 8kw R32
Model AE080BXYDEG / EU: cutting-edge investment technology, high temperature drive and minimum acoustic impact.
Includes MIM-E03CN controller
Direct replacement of boilers without changing radiators
The Aerothery heat pump Samsung EHS Monkey HT Quiet AE080BXYDEG / EU it is the definitive comprehensive solution for those users who wish to maximize efficiency and disbalance their home without the need for complex structural reforms. With a nominal power of 8.0 kW, this system is able to stably boost heating water at a temperature of up to 70 ° C 100% direct without activating electrical support resistances. This is trained as the reference team to replace ancient fossil gas or diesel boilers, keeping the pre-existing network of high temperature radiators intact.
This model stands out for an unbeatable climate performance under any winter scenario. Driven by the innovative refrigerant R32 and a premium scroll compressor with Flash injection, the machine holds an excellent nominal heat capacity against icy peaks from the outside, ensuring uninterrupted comfort even in geographical areas with extreme temperatures up to up -30 ° C. All this translates into a drastic reduction of electricity invoice thanks to its seasonal class efficiency certification To +++.

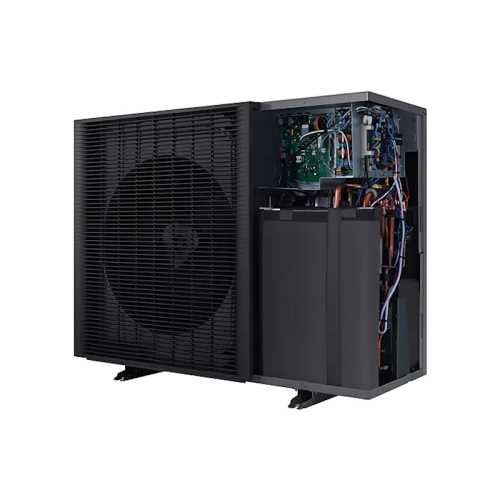

When configured under a strictly monobloc structure, all components of the refrigeration cycle and the hydronic circuit come hermetically preloaded and factory sealed in the outdoor Unit. This minimizes technical assembly times and fully protected the interior spaces of the house, since the installer makes connections by unifying only ordinary water pipes towards the domestic system (underfloor soil, fan coils or accumulator of DHW). Its sophisticated sound chassis Sonora has the International Mark International Certification, emitting only 35 dB (A) of sound pressure in its nightly mode.
Technical sheet: Samsung Ae080bxydeg / EU
Thermal performance supplied
Nominal power Heating (A7 / W35): 8.00 kW
NOMINAL COP (A7 / W35): 5,00
Nominal refrigeration power (A35 / W18): 8.00 kW
Nominal EER (A35 / W18): 4,71
SCOP seasonal efficiency (W35): 5.07 (A +++ classification)
Maximum impulse temperature: 70 ° C (heat) / 5 ° C (cold)
Electric consumption Heating / cold: 1,60 kW / 1,70 kW
Mechanical specifications and installation
Dimensions (wide X high x deep): 1270 x 1018 x 530 mm
Net weight of the team: 126 kg
Sound pressure Nominal / nocturnal: 42 dB (A) / 35 dB (A)
Maximum sound power: 56 dB (A)
Gas Refrigerant Gas / Pre-loaded load: R32 / 2.70 Kg
Outdoor operation range (heat): -30 ° C A + 43 ° C
Electrical supply / Intensity: Singhafish (230V) / 7.56 a
Advanced technologies Samsung EHS
âïž Compressor Scroll with Flash injection: Avant-garde technology that combines the injection of steam and liquid to enhance the refrigerant flow in extreme cold conditions, guaranteeing water at 70 ° C without the need for electrical resistances.
âïž Double layer acoustic insulation: The outer compressor is completely confined in a double-density acoustic absorption envelope that mitigates mechanical frequencies and residual vibrations.
âïž Fan with geometry in saw tooth: The fan blades incorporate an advanced aerodynamic profile inspired by the saw teeth that drastically reduces air swirls, optimizing the ventilation flow and minimizing noise.
âïž Protection of Durafin Ultra chassis: The external heat exchanger has a high-density epoxy anti-corrosion coating combined with a hydrophilic acrylic layer to shield the machine against saline environments and wet climates.
âïž Smart Ecosystem SmartThings: Advanced Domotic Connectivity that allows you to regulate climatic curves, monitor historical consumption in real time or integrate air stopermia with photovoltaic solar panel kits.
Frequently asked questions
Is this high-temperature equipment compatible with conventional radiators?
Yes, perfectly. Unlike conventional low-temperature heat pumps that only drive water at 35 ° C or 45 ° C, model EHS Mono HT Quiet of Samsung directly reaches a drive of up to 70 ° C. This allows to maintain the classic radiators installed in the housing contributing the same thermal power.
What control options does this system include?
The unit offers maximum versatility of integration, being fully compatible with both the compact system for climatehub in Samsung as with Independent Control Kit MIM-E03CN, allowing in both cases an intelligent management and advanced connectivity via SmartThings.
How does integrated antifreeze protection act?
The system continuously monitors the water temperature of the outer hydraulic circuit and the environment. If you detect imminent freezing risk due to evergreen cold cold peaks with the stopped machine, automatedly active water recirculation cycles to protect the integrity of the hydraulic exchanger.
Do you need technical advice to configure your installation?
On https://tualmacendelclima.com/en/ we have a highly qualified department of engineering. Gather us for the calculation of thermal loads of your property, the selection of accumulators DHW and compatible inertia or integration with photovoltaic systems.
Call 623 541 934
AE080BXYDEG/EU
Data sheet
- Brand
- Samsung
- Refrigerant Gas
- R32
- Control
- Includes MIM-E03EN Controller
- Electrical supply
- MonofĂĄsica
- COP
- 5,00
- Scop (warm weather)
- 4,64
- EER
- 4,71
- Type
- FrĂo/Heat
- Maximum temperature Heating (ÂșC)
- 70
- Power Nominal heat (W)
- 8.000
- Heat consumption (W)
- 1.600
- Nominal cold power (W)
- 8.000
- Cold consumption (W)
- 1.700
- Energy efficiency
- A+++
- WiFi
- Opcional (mediante accesorio MIM-H04EN)
- High (mm)
- 1.018
- Width (mm)
- 1270
- Background (mm)
- 530
- Weight (kg)
- 126
