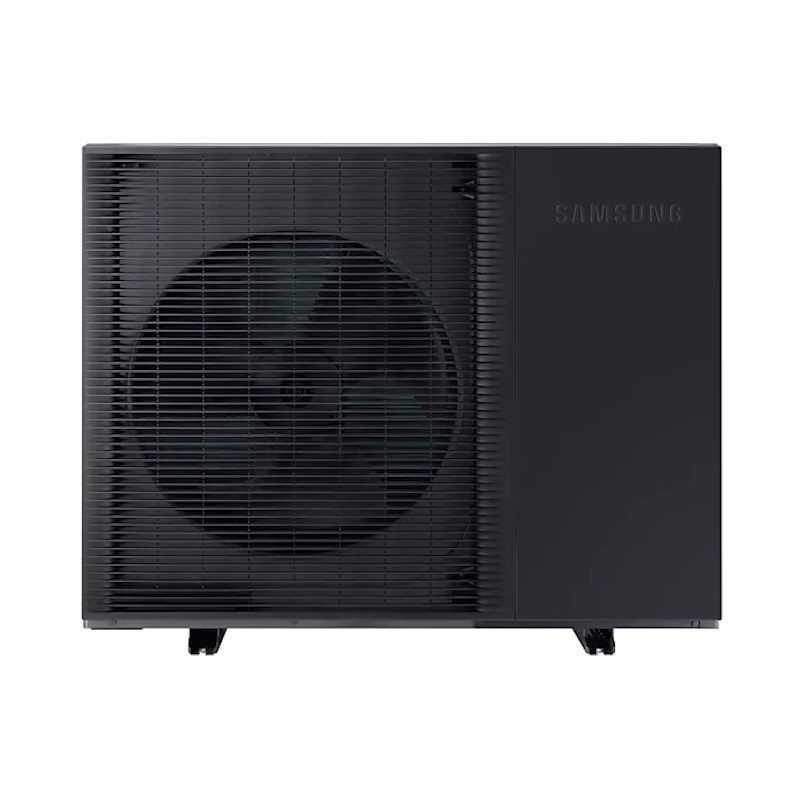

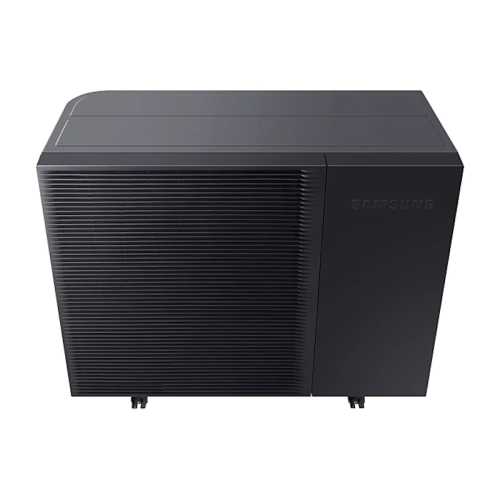

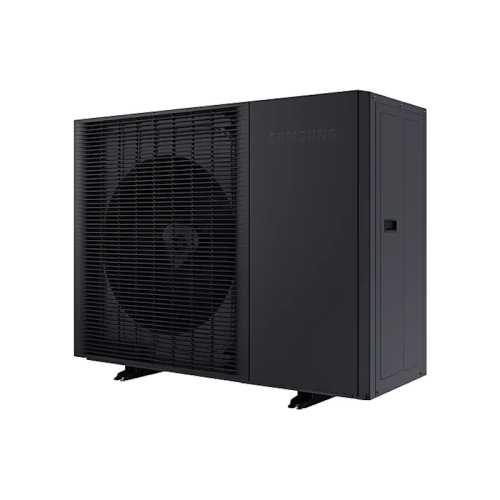

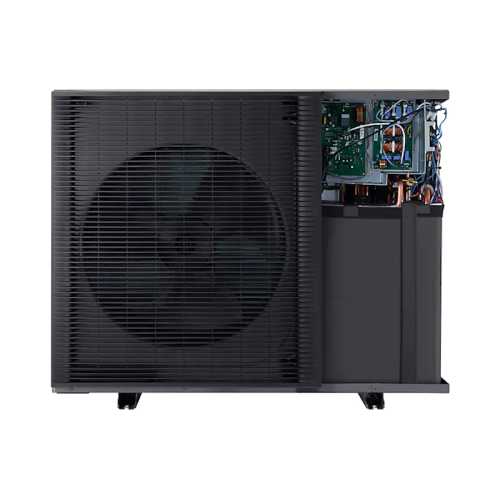

Aerotermia Monobloc AE140BXYDGG / EU EHS Monkey HT LN R32 14KW Three-phase Samsung

Thermal performance supplied

Nominal power Heating (A7 / W35): 14.00 kW

NOMINAL COP (A7 / W35): 4,70

Nominal refrigeration power (A35 / W18): 14.00 kW

Nominal EER (A35 / W18): 4,20

SCOP seasonal efficiency (W35): 4.95 (+++ classification)

Maximum impulse temperature: 70 ° C (heat) / 5 ° C (cold)

Outdoor operation ranges: Heat DHW: -30 ° C A + 43 ° C | Cold: + 10 ° C to + 46 ° C

Mechanical and electrical specifications

Dimensions (wide X high x deep): 1270 x 1018 x 530 mm

Net weight of the team: 139 kg

Sound pressure Nominal / minimum (night): 49 dB (A) / 35 dB (A)

Maximum sound power: 63 dB (A)

Gas Refrigerant Gas / Embedded load: R32 / 2.70 Kg

Protection against corrosion: Durafin Ultra

Electrical supply from the set: Three-phase, 380-415V, 50Hz

✔️ Compressor Scroll with Flash injection: Premium architecture that combines the injection of steam and fluid simultaneously, enhancing the refrigerant volume flow against hard frost to guarantee water at 70 ° C without activating resistance.

✔️ Three-phase symmetric distribution: When connecting to networks at 400V, dynamically balances the electric current per phase, mitigating overheating of general lines and allowing more compact and safe wiring sections.

✔️ Double layer acoustic insulation: The Inverter compressor motor is confined to a sequestrian-axis in a double thickness acoustic absorption wrap that neutralizes vibrations and mechanical noise at source.

✔️ Hydrodynamic ventilator Saw tooth: The ventilation blades integrate an aerodynamic relief of saw teeth that drastically reduces turbulence and air friction, achieving maximum flow with the minimum sound.

✔️ Integrated Ecosystem SmartThings: Smart connectivity series that allows parameterizing heating curves, scheduling schedules DHW, Monitor consumption and integrate the system with photovoltaic solar installations.

Is this three-phase 14 kW equipment compatible with high temperature radiators?

Yes, excellently. Thanks to the thermodynamic properties of its Flash injection cooling cycle, the machine drives water at 70 ° C exclusively by means of the compressor. This allows maintaining the classic iron or aluminum radiators of the property by providing the same thermal comfort as a traditional boiler.

What control options and technical hybridization do you admit?

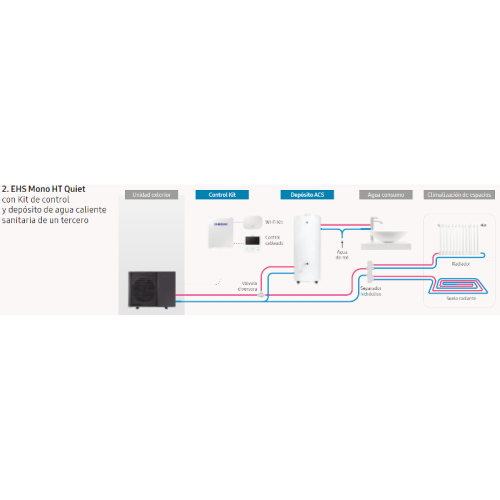

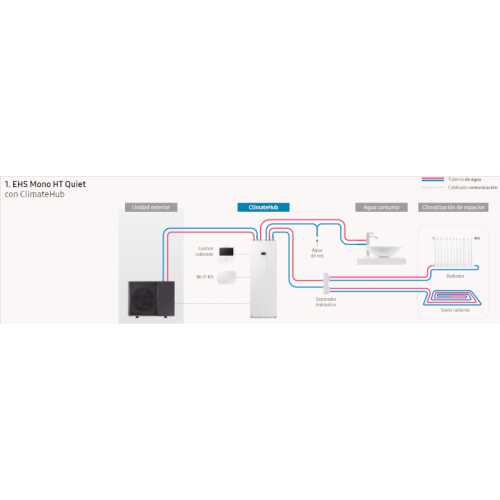

The outdoor Unit AE140BXYDGG / EU offers total hydraulic versatility for your project. It can be hybridized independently with the ** MIM-E03CN control kit ** (suitable for maintaining or making existing installation schemes) or integrating with the climatehub interior system from Samsung, facilitating advanced management in both cases via SmartThings.

Do you require complex handling of interior refrigerants?

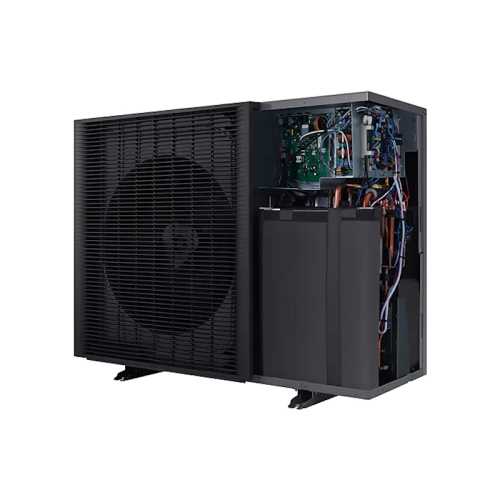

No. Being an exterior monobloc architecture, the entire Gas R32 refrigerating cycle is sealed and verified from the factory of Samsung. The professional installer performs only the hydraulic interconnection of ordinary water pipes inward, accelerating the assembly and increasing safety.
