Multi Split Kit Giatsu Aroma 3 2x1
GIA-MO3-21IX41B2R32 • 2x GIA-MSI-12AR3R32 • 6,15 kW
Advanced and symmetrical air conditioning of great flow Designed to simultaneously cover two large rooms or medium salons: two independent units of the success series Giatsu AROMA 3 of 3.5 kW each (12,000 BTU). All the system operates centralized under a single outdoor motor inverter 6,15 kW With three independent connection ports, guaranteeing a balanced operation and a lower stress of its mechanical components. Enjoy maximum freedom of temperature in each stay, optimizes the space of your terrace or facade and experiences daily comfort with its integrated Wi-Fi Thinq with IA, bacterial filtering at 56 degrees and ecological coolant R32.
A single outdoor motor inverter high reliability for two main zones
Wi-Fi control compatible with Alexa, Google Home and Logics of IA
Thermal self-cleaning 56 degrees to purify the ambient air
A ++ / A + excellent seasonal energy saving level
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Multi Split 2x1 Giatsu GIA-MO3-21IX41B2R32 + 2X GIA-MSI-12AR3R32 AROMA 3
Referencia: 2025607445018
€1,096.44
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Multi Split Kit Giatsu Aroma 3 2x1
GIA-MO3-21IX41B2R32 • 2x GIA-MSI-12AR3R32 • 6,15 kW
Advanced and symmetrical air conditioning of great flow Designed to simultaneously cover two large rooms or medium salons: two independent units of the success series Giatsu AROMA 3 of 3.5 kW each (12,000 BTU). All the system operates centralized under a single outdoor motor inverter 6,15 kW With three independent connection ports, guaranteeing a balanced operation and a lower stress of its mechanical components. Enjoy maximum freedom of temperature in each stay, optimizes the space of your terrace or facade and experiences daily comfort with its integrated Wi-Fi Thinq with IA, bacterial filtering at 56 degrees and ecological coolant R32.
A single outdoor motor inverter high reliability for two main zones
Wi-Fi control compatible with Alexa, Google Home and Logics of IA
Thermal self-cleaning 56 degrees to purify the ambient air
A ++ / A + excellent seasonal energy saving level
Security policy
Delivery policy
Refund policy
Giatsu Multi Split 2x1 GIA-MO3-21IX41B2R32 AROMA 3

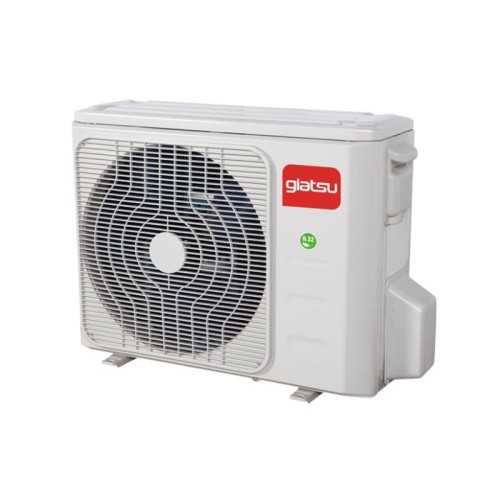

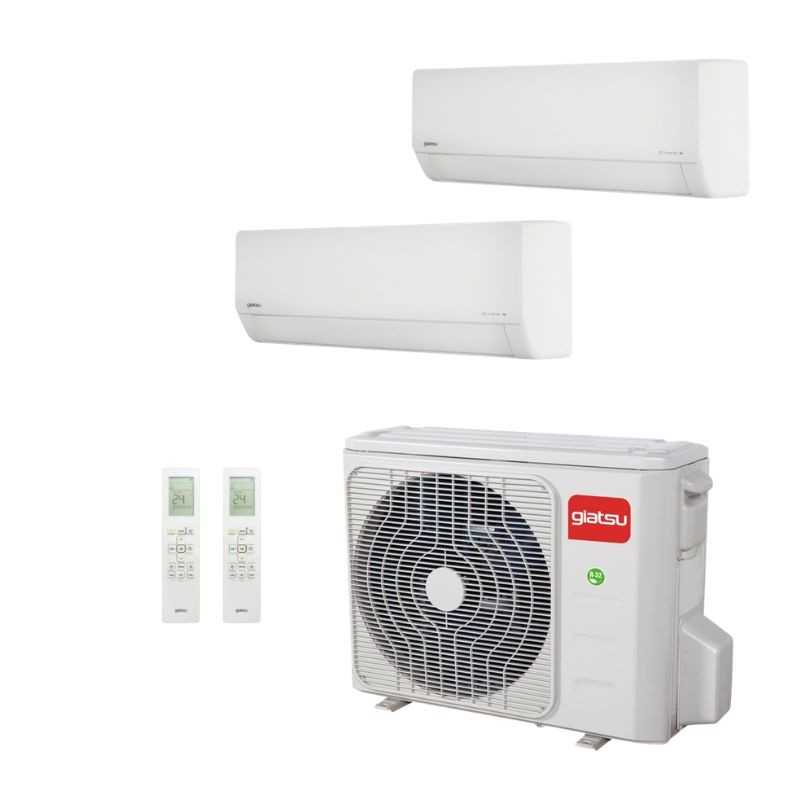

Outdoor Unit 6.15 kW connected to a symmetric combination of two indoor units aroma 3 of 3.5 kW each.
Two stays at the ideal temperature: perfect power balance and minimum consumption at home
The multi-split air conditioning system Giatsu with two indoor units of the Symmetric range aroma 3 of 3.5 kW constitutes the ideal air conditioning response for homes or floors that require a contound and simultaneous power delivery in two areas of considerable volume, such as two large double rooms, Suites or the living room and a master bedroom. By centralizing all the refrigerator operation in one outdoor Unit Inverter, the set significantly decreases the visual impact on facades, patios or terraces, optimizing the outer space and embrashing the installation costs compared to the placement of multiple separate individual engines. Each of the two mural splits works with total electronic autonomy, allowing you to set custom temperatures in each area so you can enjoy a fresh atmosphere where you need it without wasting energy in the empty stays of the house.
In the technical section, the outdoor Unit it incorporates an advanced technological heart with its compressor Dc inverter Giatsu. This state-of-the-art engine effectively compensates by mechanical forces of internal rotation, which mitigates operational vibrations, reduces external noise and eliminates continuous starts and stops from the old equipment, so that it stabilizes consumption in minimum values operational The exterior exchange battery is protected against environmental oxidation, guaranteeing excellent durability against weather inclemences. Working in harmony with last generation refrigerant gas R32, the system reaches excellent energy class coefficients To ++ in refrigeration and A + in Heating.
The great practical advantage of the mural units of the series Giatsu AROMA 3 it lies in its versatility, its intelligent functions and its characteristics designed to improve the purity of the ambient air. The splits integrate an advanced self-cleaning process that raises the internal temperature of the evaporator to 56 degrees, effectively eliminating dust, bacteria and mold accumulated to guarantee a much pure and healthier air. Its operation is extremely comfortable and silent, ideal to take care of your night rest in the bedrooms. In addition, with the Wi-Fi including serial and the use of artificial intelligence, you can control the machines from your smartphone or tablet, monitor the use or regulate the direction of the deflectors intuitively.
Technical characteristics
Performance of the Outdoor Unit (Gia-mo3-21ix41b2r32)
Cooling capacity (nominal): 6,15 kW (1,94 kW Inverter Working Range at 6,86 kW)
Capacity Heating (nominal): 6,15 kW (stable and heat efficient performance)
Seasonal energy classification (cold / heat): A ++ / A + (efficient performance)
Seer efficiency coefficient (cold): 6,1
Efficiency coefficient SCOP (heat): 4,0
Compressor technology: High efficiency inverter DC
Air flow of the unit: 3.800 m³ / h
Gas Refrigerant Gas operation: R32 ecological high thermal transfer

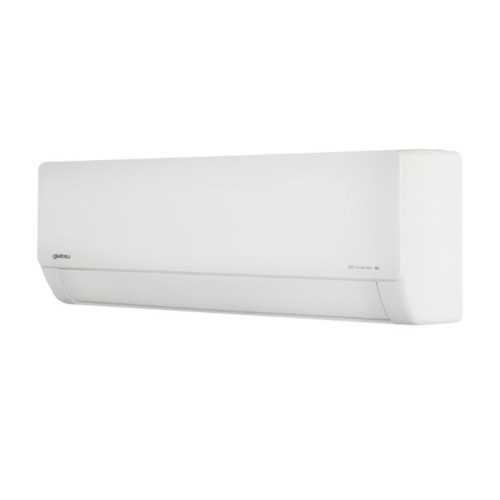

Symmetrical interior units (2x Gia-MSI-12AR3R32)
Commercial range / series: Giatsu Aroma 3 home multi
Individual refrigeration capacity: 3.51 kW (range of 1.1 kW to 3.8 kW for each split)
Individual heat capacity: 3.81 kW (range of 1.01 kW to 4.05 kW for each split)
Minimum sound pressure (silent mode): 20 dB (A) (ultrasilence)
Net dimensions of each split (an x at x PR): 813 x 289 x 201 mm
Net weight per mural unit: 7.9 kg
Diameter of refrigerated pipes (each): Liquid 1/4 - Gas 3/8
Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)
Technologies for daily comfort of the series Giatsu AROMA 3
✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. By linking with the mobile application on your smartphone or tablet, it allows you to control the two rooms independently or manage the basic functions using voice commands with Alexa and Google Home.
✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split runs an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, accumulated bacteria and mold, significantly reducing odors.
✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.
✔️ Optimized design for installation and maintenance: The aroma 3 of 3.5 kW aroma incorporate practical elements as easy access to electric wiring and an electronic plate (PCB) simply, greatly facilitating technical maintenance or review tasks.
✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.
Frequently asked questions
How does independent zone management work with two 3.5 kW splits installed?
Independence in the air conditioning of the two stays is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can program a split in the living room in cold mode while the unit of the master bedroom remains completely off or running under a smooth temperature setpoint, adapting the outer compressor exactly to the defendant instantaneous expense.
Is it necessary to purchase any optional accessory for the Wi-Fi control of the units?
No, the aroma 3 mural units incorporate the integrated wireless receiver module into the factory equipment's own chassis. It is not necessary to perform complex wiring facilities or acquire optional domotic gateways. You only need to have an Internet wireless Internet connection and configure the equipment with the official mobile application compatible with smartphone or tablet.
What are the vertical slides limits for the installation of this set?
According to the official engineering specifications of the range, the system supports a maximum vertical rate of 15 meters between the outdoor Unit (Installed in facade, patio or roof) and interiors. In addition, it allows a maximum vertical limit of up to 10 meters between the indoor units mounted within the house, providing excellent geometric flexibility for the refrigeration installation.
Do you need technical advice to plan your multi split installation of Giatsu?
On https://tualmacendelclima.com/en/ we are engineers specialists in the design, calculation and optimization of advanced multi-zone air conditioning systems Giatsu. If you have doubts about how to plan the layout of copper pipes (the two 3.5 kW splits of this set require independent symmetric refrigeration lines of 1/4 liquid and 3/8 gas), calculate the volume of refrigerant from From the length of the pre-installation or integrate voice control, our technical department is at your disposal. Ensure your comfort at the best market price with totally safe shipment.
Call 623 541 934
2025607445018
Data sheet
- Outdoor Unit
- GIA-MO3-21IX41B2R32
- Indoor Unit 1
- Gia-MSI-12ar3r32
- Indoor Unit 2
- Gia-MSI-12ar3r32
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.100
- Refrigerator capacity (kcal / h)
- 5.246
- Nominal consumption Cold (W)
- 1.889
- Energy class (cold)
- A++
- SEER
- 6,3
- Heat capacity (W)
- 6.160
- Heat capacity (Kcal / h)
- 5.298
- Nominal heat consumption (W)
- 1.660
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 20/20
- Net weight (kg)
- 64
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8
- Possibility Integration
- Integrated WiFi
- Surface recommend UI1
- 28
- Surface recommend UI2
- 28
- EU dimensions (anxfxh) mm
- 890 x 342 x 673
- Dimensions UI1 (ANXFXH) mm
- 813 x 201 x 289
- Dimensions UI2 (ANXFXH) mm
- 813 x 201 x 289
