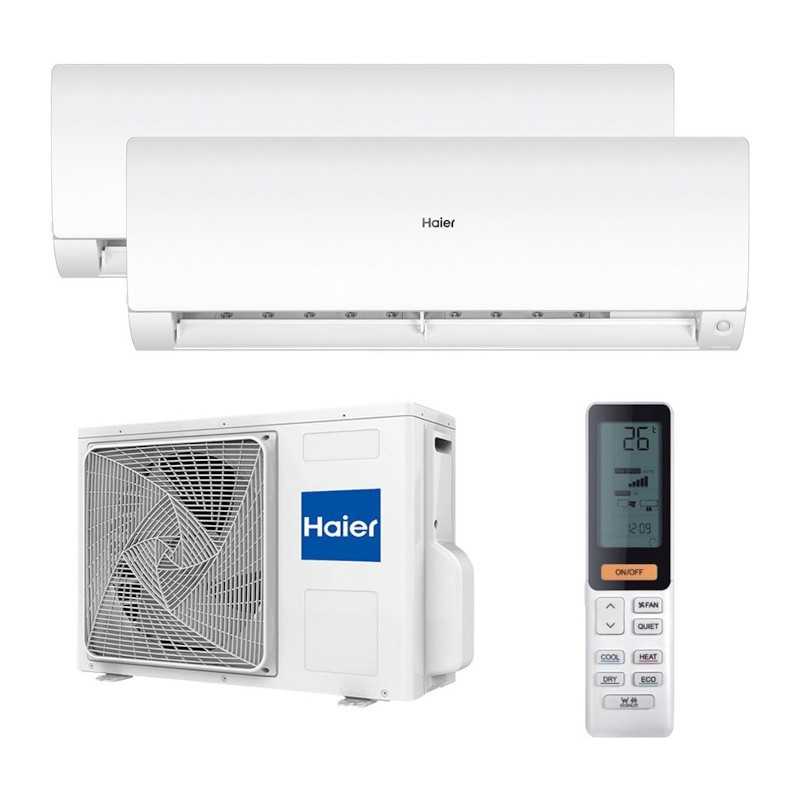

Air conditioning Multi Split 2x1 Haier 3U70S2SR5FA + AS25SBBHRA-MW + AS50SDBHRA-MW FLEXIS WHITE

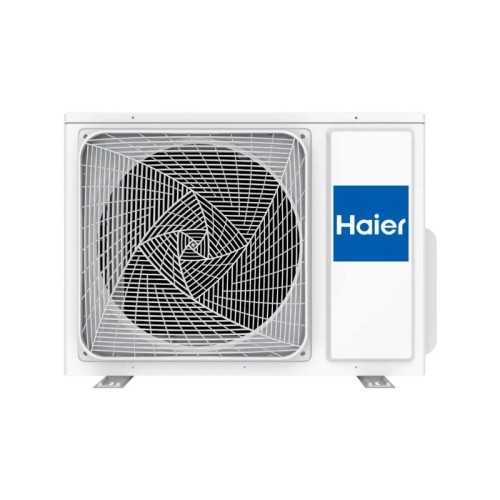

External system performance (3U70S2SR5FA)

Cooling capacity (nominal): 7,00 kW (2.40 kW - 7.60 kW)

Capacity Heating (nominal): 7,60 kW (2,80 kW - 8.50 kW)

Energy classification (cold / heat): A +++ / A ++

Seer efficiency coefficient (cold): 8,50

Efficiency coefficient SCOP (heat): 4,60

Gas Refrigerant Gas Ecological: R32

Electrical supply from the set: Single-phase, 220-240V, 50Hz

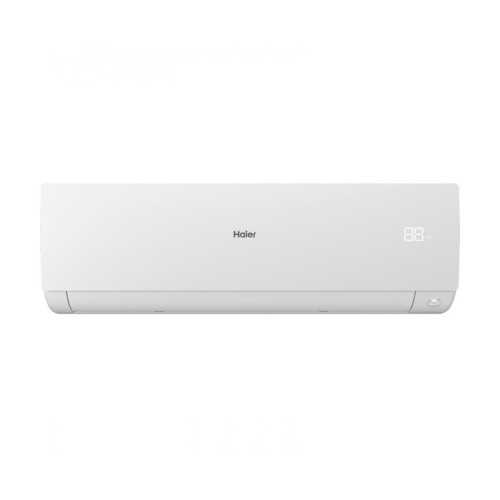

Interior mural units

Bedroom / Dispatch Unit: 1x AS25SBBHRA-MW (2.5 kW / 9,000 BTU)

Salon unit / diaphanous area: 1x AS50SDBHRA-MW (5.0 kW / 18,000 BTU)

Aesthetics / exterior finish: White Matte Textured Premium

Minimum sound pressure (Split 2.5 KW): 16 dB (A) (ultrasilence)

Purification technology: UV-C and Steri-Clean lamp 56 ° C

Intelligent presence sensor: Eco-pilot built-in series

Wireless connectivity: Wi-Fi of integrated standard (HONEP)

✔️ Steri-Clean hygienic technology 56 ° C: After performing a hydrophobic defrost to clean the aluminum fins of the inner battery, the equipment elevates controlled the temperature of the inner evaporator at 56 ° C for 30 minutes. This continuous thermal shock effectively destroys the cellular structure of adhered pathogens, providing an air completely free of contaminants.

✔️ Integrated UV-C generation module: It incorporates a short wave ultraviolet light emitter (UV-C) into the mechanical interior of the Flexi units. By circulating the flow of ambient air, the light inactivates instantly the DNA and RNA of the suspended pathogens that pass through the ventilation turbine, disinfecting cleanly without generating residual chemical byproducts.

✔️ Eco-pilot intelligent presence sensor: An advanced infrared sensor monitors the occupation plan of the rooms. Constantly detects the location and movement of the users to direct the air indirectly (preventing direct upset currents on the body) or direct, and automatically reduces the returns whether the stay is empty to minimize energy consumption.

✔️ Ultrasilencious operation of 16 dB (A): Thanks to the optimized design of its decentral tangential blades and the use of high precision DC Inverter ventilation engines, the unit of 2.5 kW reduces internal turbulence by air friction, operating with an imperceptible murmur Excellent to ensure a restful rest.

✔️ New generation connectivity with HONEP: Comprehensive smart control from any smartphone. The Wi-Fi series allows you to turn on the units remotely before you get home, schedule calendars and advanced schedules, tactically manage the purification protocols and link naturally with the Google Assistant smart assistants and Alexa.

What actual advantage does provide installing a outdoor Unit 3U70 with only two splits (2x1)?

The advantage is excellent in terms of relief and performance. As a outdoor Unit high capacity (7.0 kW) sized to feed up to three splits, work with only two indoor units (one of them high demand as the 5.0 kW) makes the compressor work without extreme efforts. It reaches setpoint temperatures in a much faster manner, reduces mechanical wear and offers impeccable thermal behavior even under limit climatic conditions.

How do you manage this system by control by areas of asymmetric capabilities (9K + 18K)?

Independence is total. Each Flexis mural unit integrates its own temperature probe and is managed autonomously with its smartphone or wireless remote control. The split of 5.0 kW may be operating in the room at full capacity during the day while the 2,5 kW bedroom split remains off, modulating the exterior compressor its consumption proportionally.

Is the use of the UV-C light generator for people from the home?

Fully safe. The UV-C light emitter is hermetically encapsulated in the internal structure of the mural chassis, which prevents the rays from being projected towards the outside of the room. The air is sanitized continuously only when it is sucked into the equipment, eliminating direct exposure risks.
