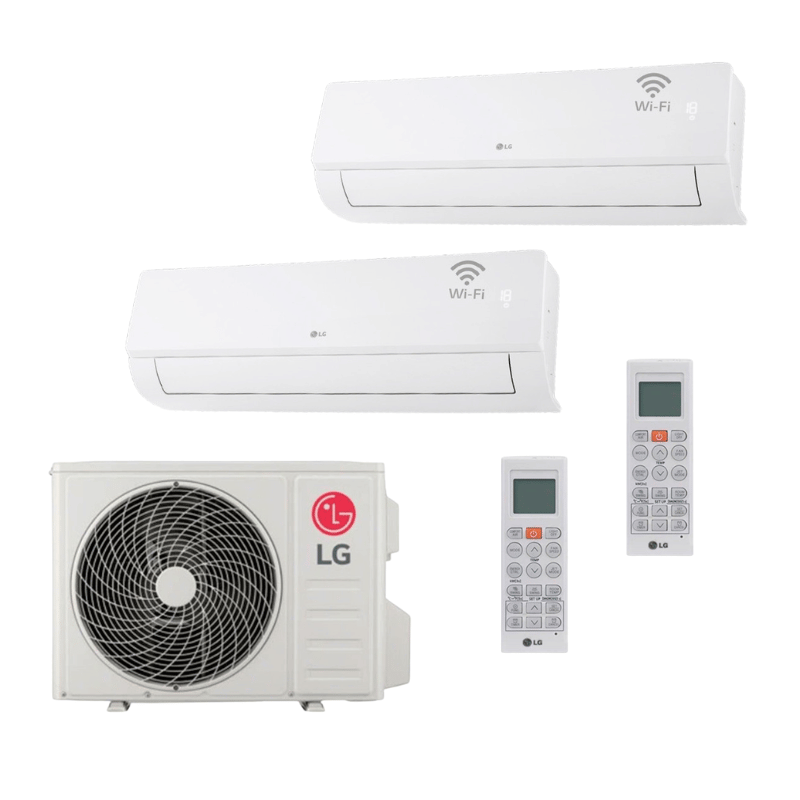

Multi Split 2x1 LG INFINITY 9 + 12 MU2R17.U13 + EZ09CSN.CSJ1 + EZ12CSN.CSJ1 WiFi Air conditioning

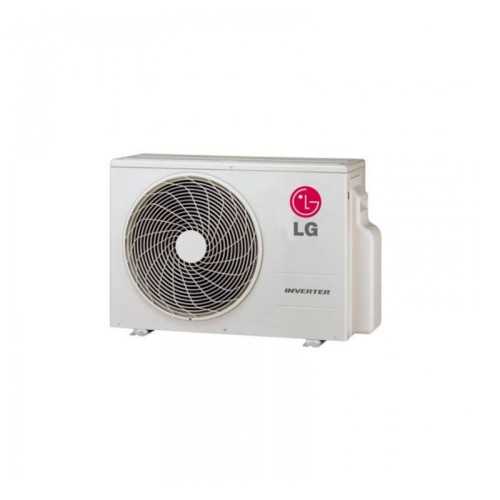

External system performance (MU2R17)

Refrigeration capacity (range): 4.69 kW (0.88 kW - 5.39 kW)

Capacity Heating (Range): 5.28 kW (0.97 kW - 5,69 kW)

Seasonal energy classification (cold): To +++

Seasonal energy classification (heat): To ++

Operation compressor: BLDC Inverter Twin Rotary

Gas Refrigerant Gas Ecological: R32

Electrical supply from the set: Single-phase, 220-240V, 50Hz

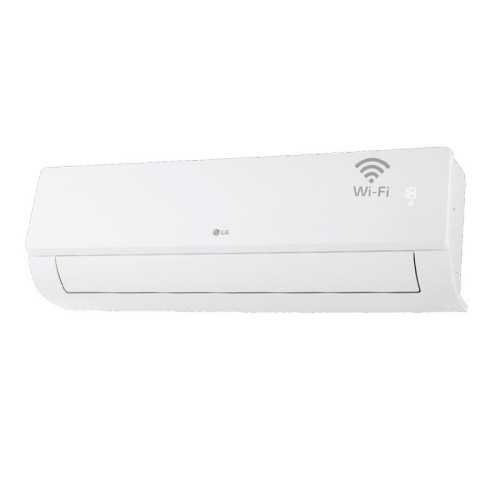

Interior mural units

Bedroom / Dispatch Unit: 1x EZ09CSN.CSJ1 (2.5 kW / 9,000 BTU)

Living / dining unit: 1x EZ12CSN.CSJ1 (3.5 kW / 12,000 BTU)

Range / Commercial Series: LG Infinity Multi

Wireless connectivity: Wi-Fi Native serial

Application of domotic control: LG Thinq (iOS and Android)

Outdoor protection Battery: Ocean Black Anticorrosion End

Diameter of liquid / gas connections: 1/4 inches - 3/8 inches

✔️ Ocean Black Battery Treatment End: The thermal exchanger of the outdoor Unit it has a reinforced black epoxy resin coating next to a hydrophilic layer. This shield provides exceptional protection against salt fogs, coastal environments and acid corrosion.

✔️ Active control of intelligent energy: Infinity units allow you to score the level of maximum electrical consumption of the equipment from the remote control. You can restrict the capacity to 80%, 60% or 40% according to the people who occupy the room, optimizing spending in real time.

✔️ Double pressure and temperature sensor: Outdoor electronics constantly measures the pressure of the R32 refrigerant in addition to its temperature. This allows a much more precise and fast refrigerating cycle control, reaching the desired setpoint temperature up to 30% before.

✔️ Integrated Wi-Fi connectivity THINQ: No cables or additional adapters. The factory wireless receiver allows to link the internal units to the mobile application LG ThinQ To program remote lit, set weekly complex calendars or audit consumer historic.

✔️ Advanced Comfort Air mode: Automatically adjust the inclination of the inner lama to orient the air flow completely parallel to the roof in cold mode or perpendicular to the soil in heat mode, preventing it from impacting directly on the body upset.

How is the control managed by areas of asymmetric capabilities (9 + 12)?

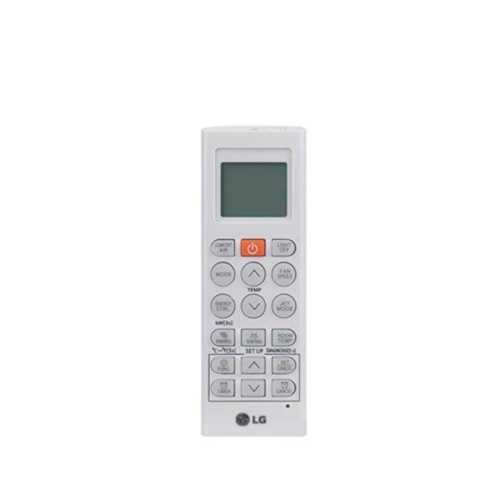

Independence is absolute. Each Infinity mural unit incorporates its own wireless remote control and includes its own temperature sensor. You can program the 3.5 kW split in the room during the central hours of the day while the 2,5 kW split of the bedroom stays off, consuming only the proportional fraction.

Do you need to buy a Wi-Fi or optional gateway to control the splits by mobile?

No, the mural units LG Infinity brings the integrated Wi-Fi communication module into the factory housing itself. It does not require the purchase of walkways or external adapters. Only a wireless internet signal is required in the housing stay and download the official mobile application free of charge LG Thinq.

What benefits does R32 ecological refrigerant gas provide on this equipment?

Gas R32 has a global warming potential (PCA) 68% lower than the former conventional R410A refrigerant. Additionally, given its outstanding physical characteristics of thermal exchange, it requires less volume of load per meter of pipe and yields 10% more efficient, decreasing the environmental impact.
