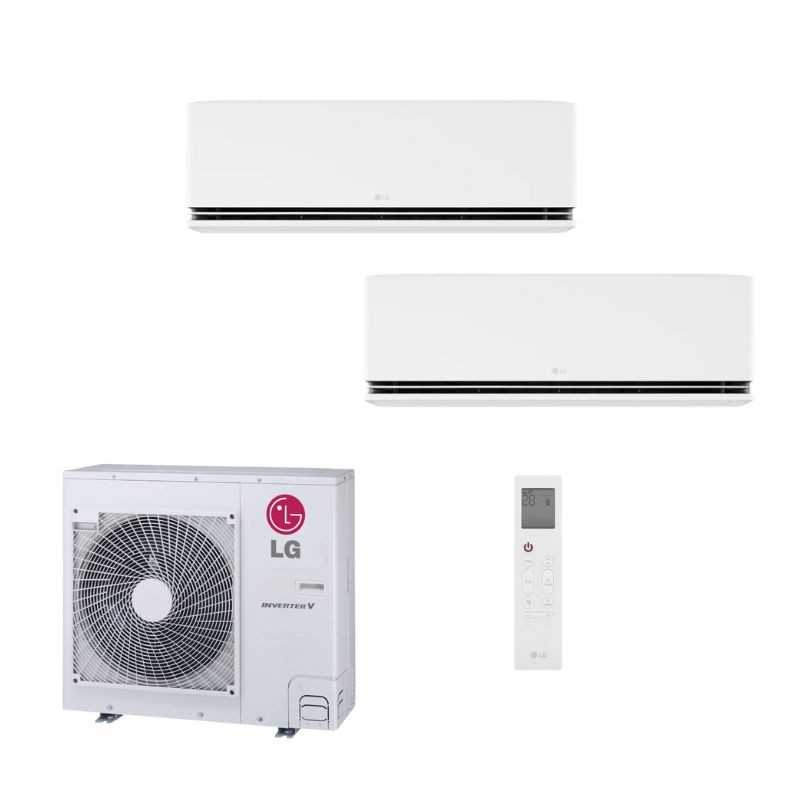

Air conditioning Multi Split 2x1 LG Mu2r15.u13 + 2x p09snd.ns0 dualcool ai

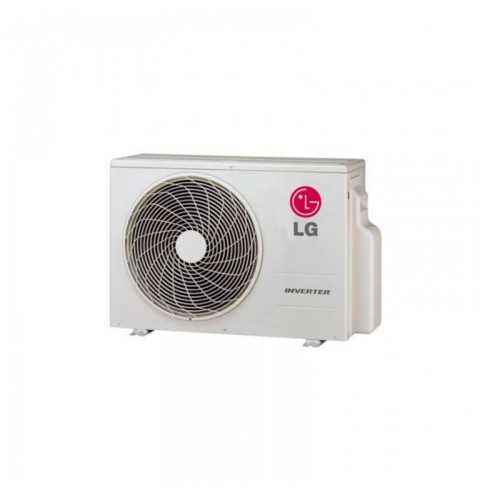

External system performance (MU2R15)

Cooling capacity (nominal): 4,50 kW

Refrigeration capacity (range): 0.88 kW - 4.72 kW

Capacity Heating (nominal): 4,69 kW

Capacity Heating (Range): 0.97 kW - 5.39 kW

Seasonal energy classification (cold): To +++

Seasonal energy classification (heat): To ++

Electrical supply of the team: Single-phase, 220-240V, 50Hz

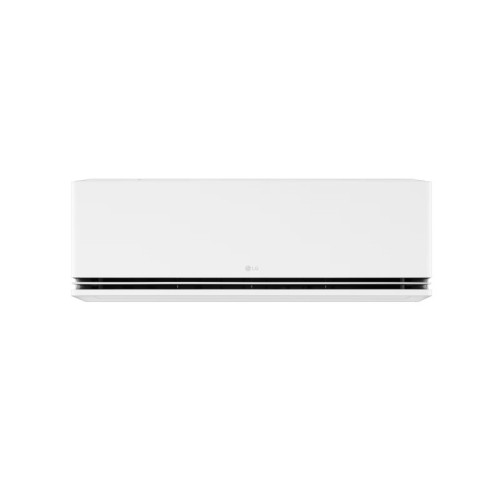

Interior units (2x p09snd.ns0)

Range / Commercial Series: LG Dualcool Ai Comfort

Individual refrigeration capacity: 2.5 kW (9,000 BTU / H)

Individual heat capacity: 3.2 kW (10,900 BTU / H)

Integrated intelligent management: Artificial intelligence Smart Care

Wireless connectivity: Built-in Wi-Fi

Mobile management application: LG Thinq App

Diameter of liquid / gas connections: 1/4 inches - 3/8 inches

✔️ Battery with Ocean Black End coating: The heat exchanger of the outdoor Unit it has a high density black epoxy resin protection combined with an acrylic hydrophilic layer, providing exceptional resistance against saline fogs, extreme humidity and coastal corrosion.

✔️ Active control of intelligent energy: Dualcool AI units allow the user to limit the level of general electrical consumption of the air conditioning system in several steps (80%, 60% or 40% of maximum capacity) through the remote control, adapting expenditure to the actual occupation.

✔️ Algorithm Ai Smart Care Advanced: The artificial intelligence of the P09SND units memorizes your preferred temperatures and use patterns. When activated, it automatically adjusts the angle of the slats and the velocity of the fan to cool the stay quickly without generating direct annoying currents.

✔️ Pressure sensor and integrated temperature: The outdoor Unit it has a double control sensor that assesses directly and constantly the pressure of the R32 coolant and the temperature of the pipes. This optimizes the inverter refrigeration cycle, is reaching the desired comfort with a higher speed.

✔️ Total connectivity with the app LG Thinq: Control the atmosphere of your home from anywhere in the world. You can turn on the equipment before you get home, monitor the cumulative electrical consumption of each split or program complex weekly timers by voice commands.

How does independence work for stays from this 2x1 multi-split system?

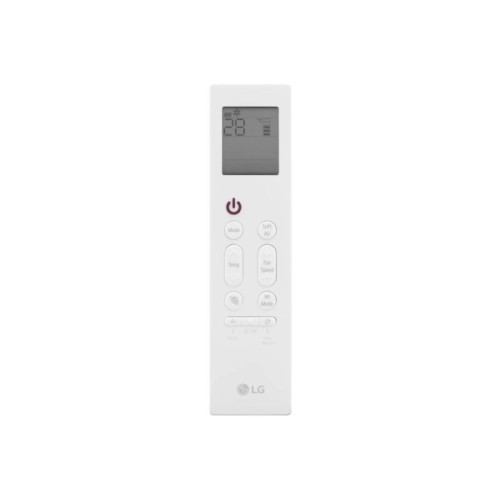

Every indoor Unit mural P09Snd has its own remote control and its own temperature probe. This allows you to program, for example, the Slot Split at 24 ° C in cooling mode while the bedroom split remains off or running at a different temperature, optimizing consumption.

Is it necessary to purchase walkways or optional accessories to use the Wi-Fi?

No, the mural units LG Dualcool AI P09SND incorporate the Wi-Fi Native Receiver module integrated as standard within its housing. It does not require the purchase of external adapters. You only need to have an Internet connection on the home and download the application for free LG Thinq on your smartphone.

What benefits does R32 ecological refrigerant gas provide on this equipment?

The propulsor R32 has a global warming potential (PCA) by 68% lower than that of the old R410A refrigerant. In addition, due to its excellent thermodynamic properties, it requires a lower load volume in the pipes and offers a thermal performance by 10% more efficient, drastically reducing the environmental impact.
