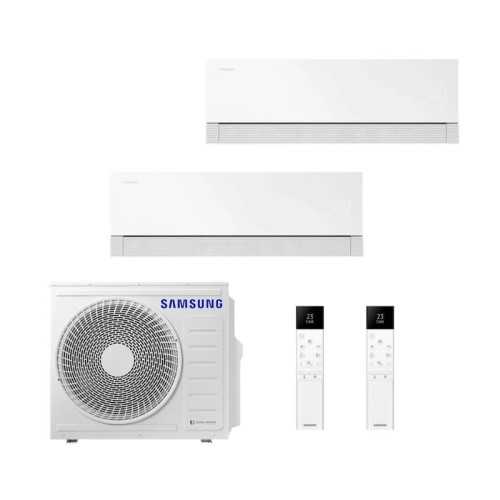

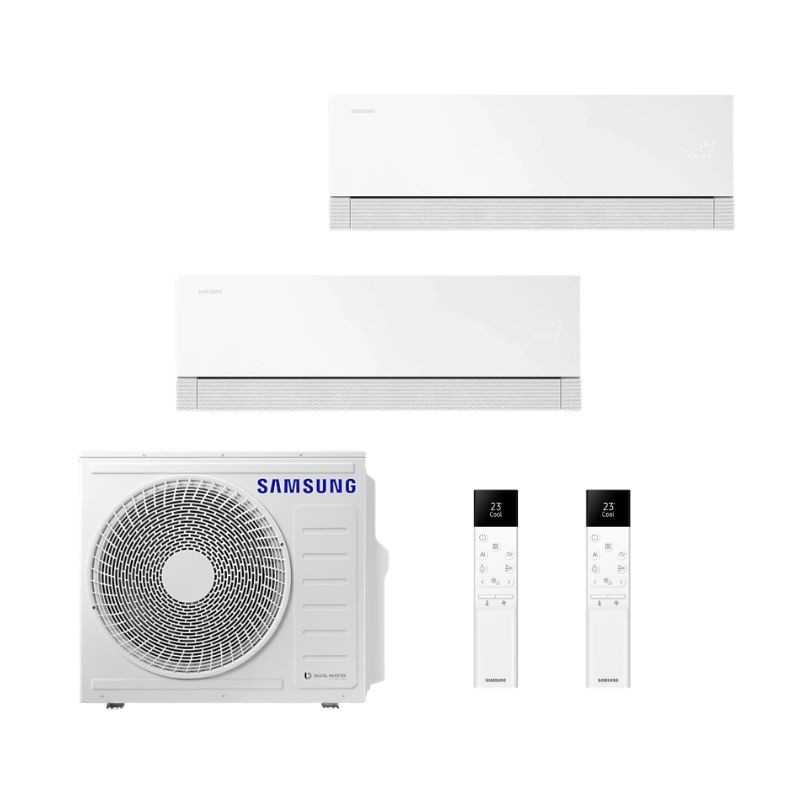

Air conditioning Multi Split 2x1 Samsung AJ068TXJ3KG + AR70H09C1AWNEU + AR70H18C1AWNEU WINDFREE Premiere

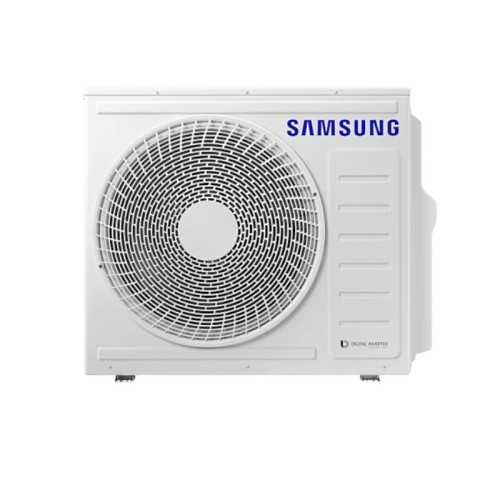

Performance of the Outdoor Unit (Aj068txj3kg / EU)

Cooling capacity (nominal): 6,80 kW

Capacity Heating (nominal): 8.00 kW

Energy classification (cold / heat): A +++ / A ++

Compressor technology: BLDC Twin Rotativo Inverter Boost

Advanced electronic protection: Triple integrated Plus protector

Electrical Communication Protocol: Advanced NASA System

Gas Refrigerant Gas Ecological: R32

Interior units included

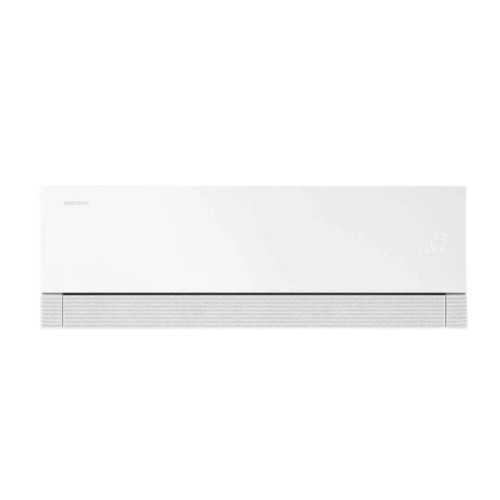

Split bedroom unit: 1x AR70H09C1AWNEU (2.50 kW / 8,530 BTU / H)

Split Salon / Diaphanous Zone unit: 1x AR70H18C1AWNEU (5,00 kW / 17,060 BTU / H)

Commercial range / series: Windfree Premiere FJM

Static distribution technology: Windfree microorifices

Evaporator hygiene: Integrated Freezewash Protocol

Incorporated special filtering: 4 in 1 Care Filter (PM2.5 / Antiviral)

Intelligent sensor: Radar of presence and activity

Wireless connectivity: Wi-Fi series (SMARTTHINGS / VOOGE)

✔️ Advanced refrigeration Windfree: The system uses a triple-design main discharge lama that incorporates thousands of microorifices. When the Windfree mode is activated, the direct air flow is interrupted and the fresh air is gently dispersed by the room by simple gravity, achieving a uniform air conditioning without annoying currents on the skin.

✔️ FREEZEWASH automated wash system: An intelligent protocol of last generation hygienic maintenance. The split freezes the battery surface of the indoor heat exchanger to agglutinate and retain dirt, dust and accumulated impurities. Subsequently, it melts the ice quickly to evacuate all waste through the drain, drying the interior completely.

✔️ Smart radar movement sensor: The premiere high-end units incorporate a high sensitivity radar sensor. This component scans the stay to detect the number of people present and their level of activity. Automatically adjust the air flow discharge (direct or indirect) and optimize power, activating the energy saving mode if the stay remains empty.

✔️ Filter 4 in 1 Care High density Filter: An advanced armor for home environmental health. Its high-retention framework is capable of accurately capturing thin-powered particles in suspension (PM2.5), at the same time as their active coatings inactivate bacteria, common viruses and allergens transported by air.

✔️ Intelligent control Ai Auto Comfort and SmartThings: Thanks to the factory integrated serial Wi-Fi connectivity, the splits are linked with the application Samsung Smartthings. The artificial intelligence algorithm analyzes the conditions of the rooms and your daily use patterns to self-manage the ideal operating mode, being compatible with voice controls.

What actual advantage does provide installing a outdoor Unit AJ068 of three areas with only two splits (2x1)?

The advantage is excellent in terms of relief, durability and seasonal performance. The indoor Unit large capacity (5.0 kW) requires a refrigerator flow and a very high thermal transfer rate. When connecting it to a outdoor Unit high capacity 6.8 kW nominal sized to feed up to three splits simultaneously, the Inverter compressor works completely loose. It reaches a faster setpoint temperatures, significantly reduces mechanical wear of components and offers impeccable thermal behavior even under weather outdoor climatic conditions.

How is the asymmetric power between the rooms (9k + 18k) managed?

Independence in thermal comfort is total and is perfectly coordinated by external electronic management. Each Windfree Premiere mural unit has its own wireless control and includes its own temperature and radar sensors. You can program the split of 5.0 kW in Windfree cooling mode at 24 ° C in the main room during the day while the 2.5 kW unit of the bedroom remains off or running under a different slogan, optimizing the consumption of the shape compressor Proportional exact.

Is it necessary to buy optional cards or accessories to use the control by Wi-Fi?

No, the premiere series mural units incorporate the pre-installed Wi-Fi receptor module within its own structure. It does not require the purchase of walkways or external adapters. You only need to have an Internet wireless signal on the home and download for free the official SmartThings application on your smartphone or tablet.
