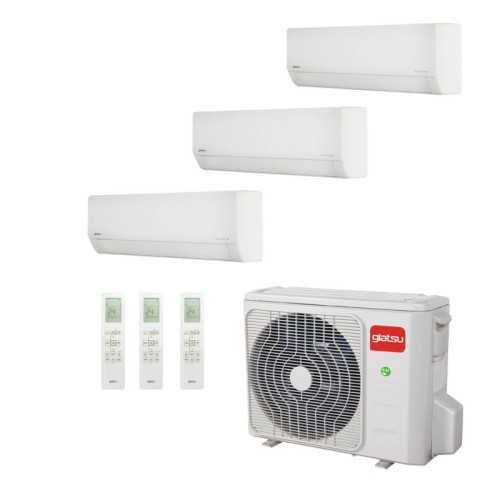

Multi Split Kit Giatsu Aroma 3 3x1
GIA-MO3-21IX41B2R32 • 3x GIA-MSI-09AR3R32 • 6,15 kW
Advanced and efficient air conditioning for three stays Through a perfect symmetric combination for bedrooms or medium-sized rooms: three independent interior units of the success series Giatsu AROMA 3 of 2.5 kW each connected to a balanced exterior motor of 6,15 kW of nominal power. This system allows you to fully autonomously the temperature of each room, optimize the outer space of your home by centralizing everything in a single team and enjoying excellent comfort with artificial intelligence technology, integrated wi-fi connectivity, high temperature sterilization and gas Ecological R32.
A unique outdoor motor inverter high performance for three stays
Wi-Fi control included as standard with optimization logics by IA
Advanced self-cleaning at 56 degrees to ensure cleaner air
A ++ / A + high seasonal efficiency with optimized energy consumption
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Multi Split 3x1 Giatsu GIA-MO3-21IX41B2R32 + 3X GIA-MSI-09AR3R32 AROMA 3
Referencia: 3x1GIA321090909SPW
€1,188.06
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Multi Split Kit Giatsu Aroma 3 3x1
GIA-MO3-21IX41B2R32 • 3x GIA-MSI-09AR3R32 • 6,15 kW
Advanced and efficient air conditioning for three stays Through a perfect symmetric combination for bedrooms or medium-sized rooms: three independent interior units of the success series Giatsu AROMA 3 of 2.5 kW each connected to a balanced exterior motor of 6,15 kW of nominal power. This system allows you to fully autonomously the temperature of each room, optimize the outer space of your home by centralizing everything in a single team and enjoying excellent comfort with artificial intelligence technology, integrated wi-fi connectivity, high temperature sterilization and gas Ecological R32.
A unique outdoor motor inverter high performance for three stays
Wi-Fi control included as standard with optimization logics by IA
Advanced self-cleaning at 56 degrees to ensure cleaner air
A ++ / A + high seasonal efficiency with optimized energy consumption
Security policy
Delivery policy
Refund policy
Giatsu Multi Split 3x1 GIA-MO3-21IX41B2R32 AROMA 3
Outdoor Unit of 6.15 kW connected to a perfect symmetrical combination of three indoor units aroma 3 of 2.5 kW each.
Three stays at the ideal temperature: perfect power balance and minimum consumption at home
The multi-split air conditioning system Giatsu with three interior units of the Aroma 3 of 2.5 kW series is the ideal solution for housing that seek comfort, compact design and independent control in three different stays. When unifying the operation of three independent rooms in one outdoor Unit Inverter, the set significantly decreases the visual impact on facades, patios or terraces, optimizing the outer space and embrashing the installation costs compared to the placement of multiple separate individual engines. Each of the three mural splits works with total electronic autonomy, allowing you to set custom temperatures in each area so you can enjoy a pleasant atmosphere where you need it without wasting energy in the empty stays of the house.
In the technical section, the outdoor Unit it incorporates an advanced technological heart with its compressor Dc inverter Giatsu. This state-of-the-art engine effectively compensates by mechanical forces of internal rotation, which mitigates operational vibrations, reduces external noise and eliminates continuous starts and stops from the old equipment, so that it stabilizes consumption in minimum values operational The exterior exchange battery is protected against environmental oxidation, guaranteeing excellent durability against weather inclemences. Working in harmony with last generation refrigerant gas R32, the system reaches excellent energy class coefficients To ++ in refrigeration and A + in Heating.
The great practical advantage of the mural units of the series Giatsu AROMA 3 it lies in its versatility, its intelligent functions and its characteristics designed to improve the purity of the ambient air. The splits integrate an advanced self-cleaning process that raises the internal temperature of the evaporator to 56 degrees, effectively eliminating dust, bacteria and mold accumulated to guarantee a much pure and healthier air. Its operation is extremely comfortable and silent, ideal to take care of your night rest in the bedrooms. In addition, with the Wi-Fi including serial and the use of artificial intelligence, you can control the machines from your smartphone or tablet, monitor the use or regulate the direction of the deflectors intuitively.
Technical characteristics

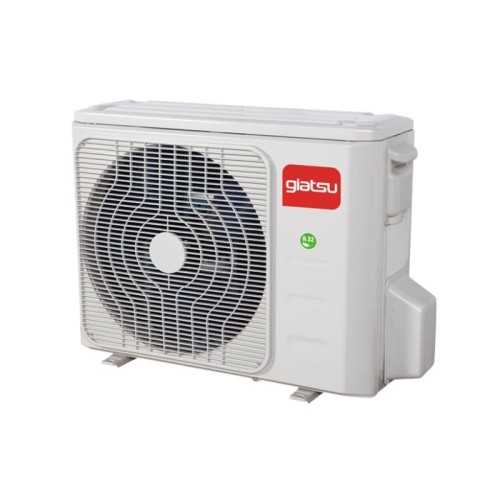

Performance of the Outdoor Unit (Gia-mo3-21ix41b2r32)
Cooling capacity (nominal): 6,15 kW (1,94 kW Inverter Working Range at 6,86 kW)
Capacity Heating (nominal): 6,15 kW (stable and heat efficient performance)
Seasonal energy classification (cold / heat): A ++ / A + (efficient performance)
Seer efficiency coefficient (cold): 6,1
Efficiency coefficient SCOP (heat): 4,0
Compressor technology: High efficiency inverter DC
Power supply: 220-240V (1 phase - 50Hz)
Gas Refrigerant Gas Ecological: R32 high thermal transfer

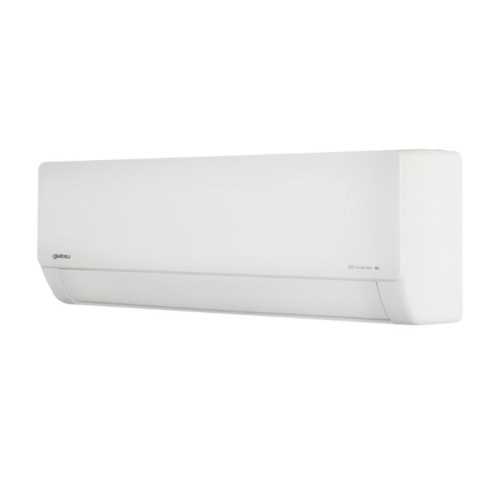

Symmetrical interior units (3x GIA-MSI-09AR3R32)
Commercial range / series: Giatsu Aroma 3 home multi
Individual refrigeration capacity: 2.60 kW (range of 1.1 kW to 3.2 kW for each split)
Individual heat capacity: 2.93 kW (range of 0.83 kW to 3.60 kW for each split)
Minimum sound pressure (silent mode): 19 dB (A) (ultrasilence)
Net dimensions of each split (an x at x PR): 723 x 286 x 199 mm
Net weight per mural unit: 7.4 kg (Lightened design of easy installation)
Diameter of refrigerated pipes (each): Liquid 1/4 - Gas 3/8
Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)
Technologies for daily comfort of the series Giatsu AROMA 3
✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. When linking with the mobile application on your smartphone or tablet, it allows you to control the three rooms independently or manage the basic functions using voice commands with Alexa and Google Home.
✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split runs an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, accumulated bacteria and mold, significantly reducing odors.
✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.
✔️ Optimized design for installation and maintenance: AROMA 3 units incorporate practical elements such as a level support included to ensure a perfect alignment, easy access to electric wiring and an electronic plate (PCB) simply, greatly facilitating technical tasks.
✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.
Frequently asked questions
How does management by independent areas with three connected interior units work?
Independence in the air conditioning of the three stays is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can schedule a split in a bedroom in cold mode, keep a second unit completely off in the study and leave the third operating at low speed in another room, adapting the exterior compressor exactly to the defendant instantaneous expense.
Is it necessary to purchase any optional accessory for the Wi-Fi control of the units?
No, the aroma 3 mural units incorporate the integrated wireless receiver module into the factory equipment's own chassis. It is not necessary to perform complex wiring facilities or acquire optional domotic gateways. You only need to have an Internet wireless Internet connection and configure the equipment with the official mobile application compatible with smartphone or tablet.
What are the maximum refrigeration and uneven distances of this multi-split set of 6.15 kW?
According to brand standards, the outdoor Unit supports a flexible installation length to suit the structure of your home. The maximum vertical rate allowed between the outdoor Unit and the interiors are 15 meters, while the vertical maximum difference between the internal units installed within the house is up to 10 meters, which ensures an excellent versatility of assembly.
Do you need technical advice to plan your multi split installation of Giatsu?
On https://tualmacendelclima.com/en/ we are engineers specialists in the design, calculation and optimization of advanced multi-zone air conditioning systems Giatsu. If you have doubts about how to plan the layout of copper pipes (the three 2.5 kW splits of this assembly require symmetric refrigeration lines of 1/4 liquid and 3/8 gas), calculate the refrigerant volume from the Factory preload length or integrate voice control, our technical department is at your disposal. Ensure your comfort at the best market price with totally safe shipment.
Call 623 541 934
3x1GIA321090909SPW
Data sheet
- Brand
- Giatsu
- Outdoor Unit
- GIA-MO3-21IX41B2R32
- Indoor Unit 1
- Gia-MSI-09ar3r32
- Indoor Unit 2
- Gia-MSI-09ar3r32
- Indoor Unit 3
- Gia-MSI-09ar3r32
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.150
- Refrigerator capacity (kcal / h)
- 5.289
- Nominal consumption Cold (W)
- 1.905
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 6.600
- Heat capacity (Kcal / h)
- 5.676
- Nominal heat consumption (W)
- 1.738
- Energy class (heat)
- A+
- SCOP
- 4
- Minimum sound pressure UI DB
- 19/19/19
- Net weight (kg)
- 110
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Integrated WiFi
- Surface recommend UI1
- 20
- Surface recommend UI2
- 20
- Surface recommend UI3
- 20
- EU dimensions (anxfxh) mm
- 890 x 342 x 673
- Dimensions UI1 (ANXFXH) mm
- 723 x 199 x 286
- Dimensions UI2 (ANXFXH) mm
- 723 x 199 x 286
- Dimensions UI3 (ANXFXH) mm
- 723 x 199 x 286
