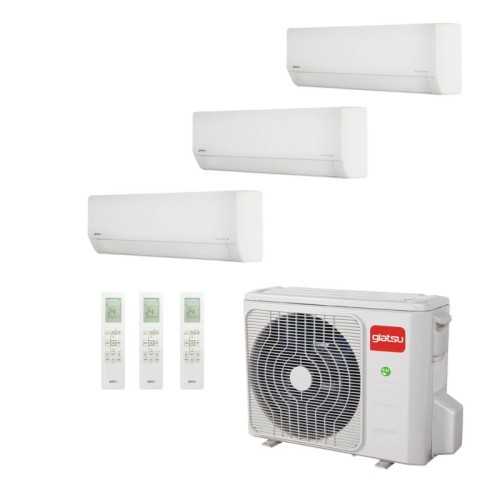

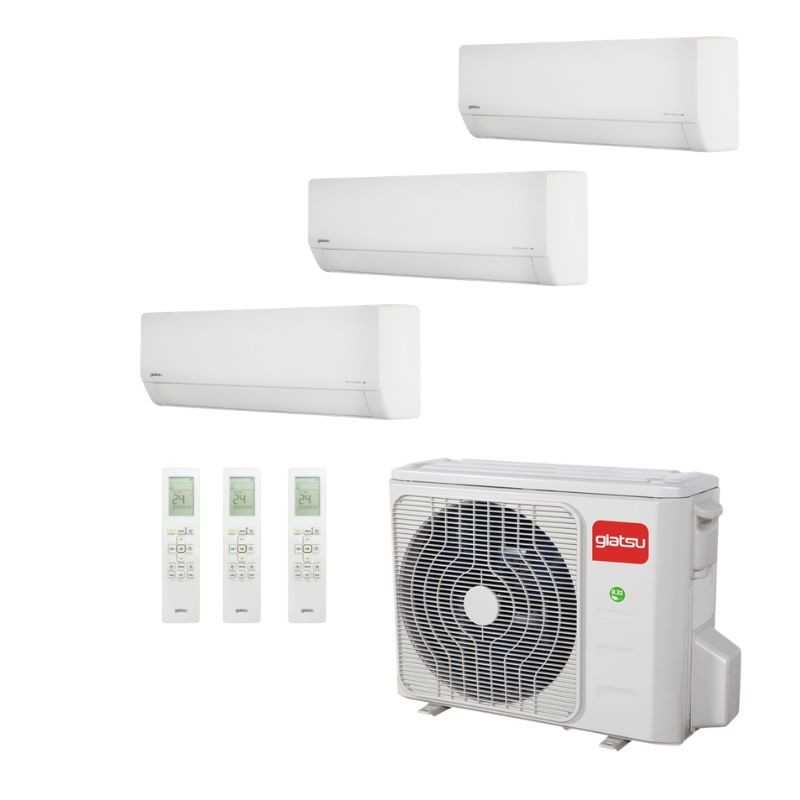

Multi Split 3x1 Giatsu GIA-MO4-36IX41BR32 + GIA-MSI-09AR3R32 + 2X GIA-MSI-18AR3R32 AROMA 3

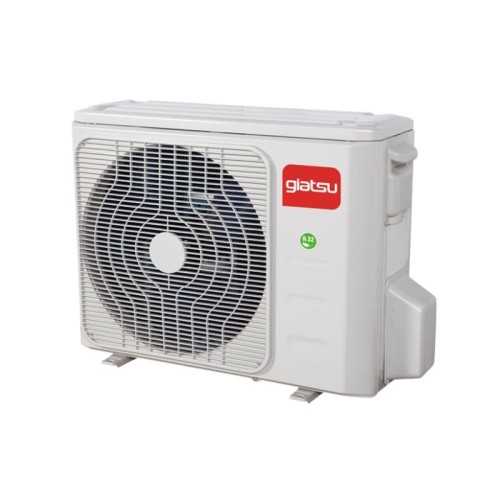

Performance of the Outdoor Unit (Gia-mo4-36ix41br32)

Cooling capacity (nominal): 10.50 kW (work range of 6.2 kW to 10.5 kW)

Capacity Heating (nominal): 10.50 kW (Working Range of 7.0 kW to 11.1 kW)

Seasonal energy classification (cold / heat): A ++ / A + (optimal performance)

Seer efficiency coefficient (cold): 6,2

Efficiency coefficient SCOP (heat): 3,8

Compressor technology: DC Inverter High Industrial Efficiency

Exterior air flow: 4,000 m³ / h

Gas Refrigerant Gas Ecological / load: R32 / 2,10 kg

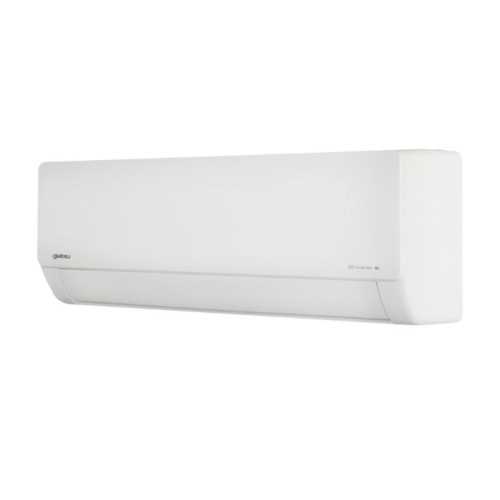

Indoor units included (Aroma 3 series)

Split Dispatch or secondary bedroom: 1x GIA-MSI-09AR3R32 (2,60 kW cold / 2.93 kW heat)

Splits Main zones / Salons: 2x GIA-MSI-18AR3R32 (5.27 kW cold / 5,40 kW heat each)

Minimum sound pressure (2.5 kW model): 19 dB (A) (ultrasilence)

Dimensions Split 2.5 kW (an x at x PR): 723 x 286 x 199 mm

Dimensions models 5.0 kW (an x at x PR): 975 x 308 x 218 mm

Diameter of connections (model 2.5 kW): Liquid 1/4 - Gas 3/8

Diameter of connections (models 5.0 kW): Liquid 1/4 - Gas 1/2

Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)

✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. When linking with the mobile application on your smartphone or tablet, it allows you to control the three rooms independently or manage the basic functions using voice commands with Alexa and Google Home.

✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split runs an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, accumulated bacteria and mold, significantly reducing odors.

✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.

✔️ Optimized design for installation and maintenance: AROMA 3 units incorporate practical elements such as a level support included to ensure a perfect alignment, easy access to electric wiring and an electronic plate (PCB) simply, greatly facilitating technical tasks.

✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.

What actual advantage does provide to install an engine of four zones with only three connected interior units?

The advantage is excellent in durability, seasonal performance and absolute mechanical reliability. The selected interior units (especially the two large-format splits of 5.0 kW) require a refrigeration flow and an extremely high thermal transfer rate when they operate simultaneously. When connecting them to a outdoor Unit high capacity of 10.50 kW nominal sized in a four-port independent chassis, the Inverter compressor works in a totally relieved regime. It does not suffer from mechanical overwhelming, reaches the desired temperatures faster and guarantees impeccable thermal behavior under demanding climatic conditions.

How does asymmetric management work for stays with units of 2.5 kW and 5.0 kW?

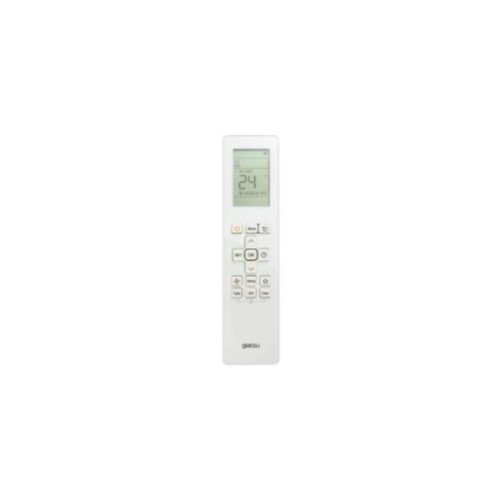

Independence in the air conditioning of the three stays is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can program 5.0 kW units in the main stays in cold mode during the day while the bedroom unit remains completely off or running under a soft slogan, adapting the outer compressor exactly to the defendant instant proportional expenditure.

Is it necessary to purchase any optional accessory for the Wi-Fi control of the units?

No, the aroma 3 mural units incorporate the integrated wireless receiver module into the factory equipment's own chassis. It is not necessary to perform complex wiring facilities or acquire optional domotic gateways. You only need to have an Internet wireless Internet connection and configure the equipment with the official mobile application compatible with smartphone or tablet.
