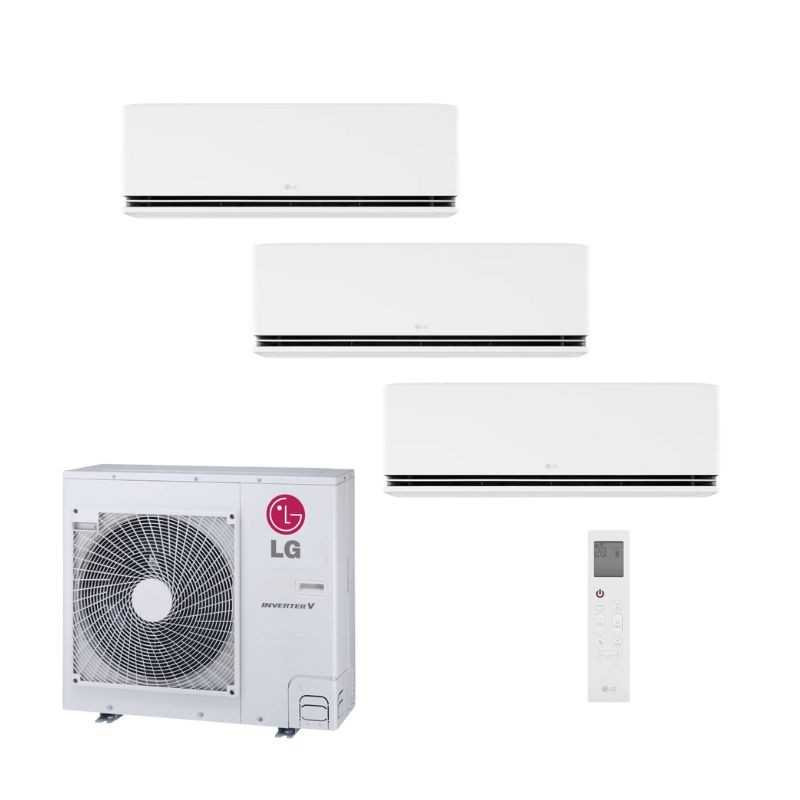

Air conditioning kit 3x1 Multi Split LG Mu3r19.u21 + 3x p09snd.ns0 dualcool ai

Performance of the Outdoor Unit (Mu3r19.u24a)

Cooling capacity (nominal): 5,27 kW (Rank: 1.06 KW - 6.33 kW)

Capacity Heating (nominal): 6,33 kW (range: 1,17 kW - 7,33 kW)

Seasonal energy classification (cold): A +++ (medium climate)

Seasonal energy classification (heat): A + (Average climate)

Seer efficiency coefficient (cold): 8,50

Efficiency coefficient SCOP (heat): 4,20

Compressor technology: BLDC Inverter Twin Rotary LG

Outside battery protection: Ocean Black End

Gas Refrigerant Gas Ecological / load: R32 / High transfer factory load

Symmetrical interior units (3x p09snd.ns0)

Commercial range / series: LG Dualcool Ai Mural Comfort

Individual refrigeration capacity: 2.50 kW (8,530 BTU / H for each split)

Individual heat capacity: 3,20 kW (10,920 BTU / H for each split)

Minimum sound pressure (Sleep / Quiet mode): 19 dB (A) (ultrasilence)

Dimensions of the splits (an x at x PR): 799 x 307 x 235 mm

Net weight per mural unit: 10 kg (lightened structure)

Diameter of refrigerated pipes (all ports): Liquid 1/4 - Gas 3/8

Domotic wireless connectivity: Wi-Fi of integrated standard (LG Thinq App))

✔️ Smart home friendly ecosystem LG Thinq with AI: Every indoor Unit includes factory pre-installed a native wireless module within its own structure. When linking with the ThinQ application, it allows you to control the three zones independently, configure complex timers, monitor instant energy use and activate artificial intelligence functions to adapt the air conditioning to your daily life habits.

✔️ BLDC Twin Rotary Compressor with pressure sensor: The outdoor Unit it uses an eccentric double rotor engine that balances the centrifugal forces of internal rotation. By including an electronic sensor that continuously measures the pressure and the temperature of the R32 refrigerant gas, the algorithm optimizes the exact turns regime, reaching the desired temperature faster and decreasing consumption.

✔️ Blindaje Ocean Black End of High Durability: The heat exchanger of the outdoor Unit it is covered with a double layer of modified epoxy resin and a protective hydrophilic coating. This high-tech barrier neutralizes the accumulation of water droplets and avoids galvanic corrosion caused by salinity in coastal zones or urban pollution, drastically prolonging system life.

✔️ Silent operation of 19 dB Sleep: By inclining the crossed flow fan slats and the use of a brushless continuous current motor, the split significantly reduces the air passage operating turbulences. When activating the night or low speed mode in the bedroom units, it emits a slight murmur of 19 decibels that ensures an unbeatable rest environment.

✔️ Active energy control and dual filter: The systems of LG they allow to limit the maximum consumption power of the compressor voluntarily through the remote control, optimizing spending when the maximum capacity of the machine is not required. In addition indoor Unit it has a double action filtering system responsible for retaining floating fine dust particles.

How does management by independent zones work with three symmetric interior units?

Independence in the air conditioning of the three stays is total and is electronically coordinated by the expansion valves of the outdoor Unit. Each of the Comfort mural units has its own remote control and its own thermal reading probes. You can program a split in a cold mode, keep a second unit off in the studio and leave the third running at a soft power in another room, adapting the exterior engine its performance accurately to avoid unnecessary electricity expenses.

Is it necessary to purchase any optional accessory for Wi-Fi control?

No, the mural units of the Confort Series incorporate the pre-installed wireless receptor module within the equipment's own chassis. It is not necessary to buy external domotic gateways or perform additional wiring. You only need to have an Internet wireless internet connection and download the official application for free LG Thinq on your Smartphone or Tablet.

What are the refrigeration distances and installation limitations of this set?

According to the official tab of LG, the outdoor Unit MU3R19 supports a maximum total length of pipes up to 50 meters by adding the three branches, with a maximum limit by individual branch of up to 25 meters. The maximum vertical rate allowed between the outdoor Unit and the indoor Unit further away is 15 meters, while the maximum rate between the internal units installed in the house is up to 7.5 meters, which gives a great geometric versatility of assembly.
