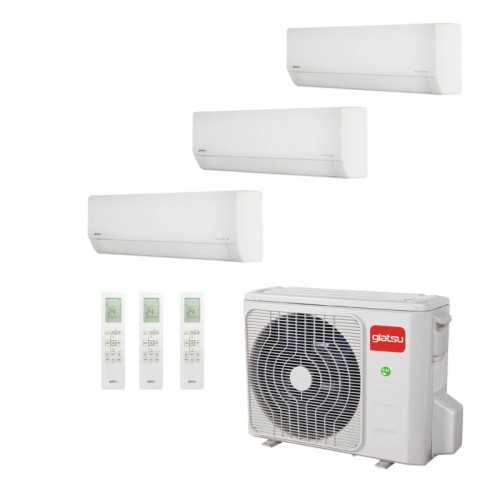

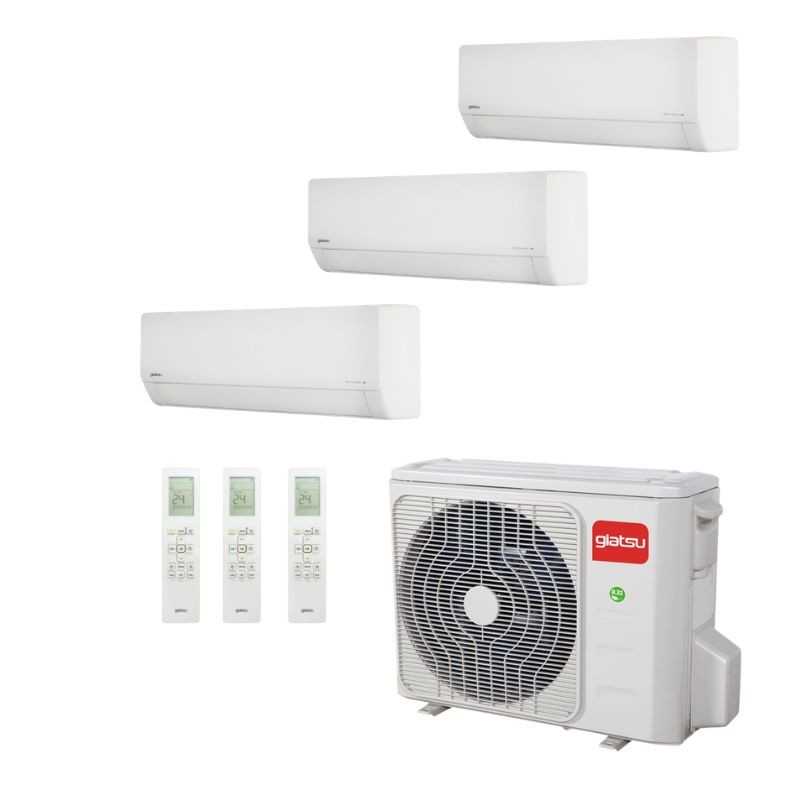

Multi Split 3x1 Giatsu GIA-MO3-27IX41B2R32 + 2X GIA-MSI-09AR3R32 + GIA-MSI-12AR3R32 AROMA 3

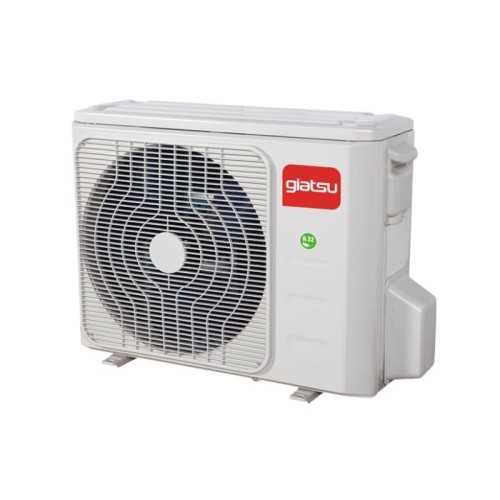

Performance of the Outdoor Unit (Gia-mo3-27ix41b2r32)

Cooling capacity (nominal): 8,20 kW (work range of 2.1 kW to 9.8 kW)

Capacity Heating (nominal): 8,20 kW (work range of 2.1 kW to 9.4 kW)

Seasonal energy classification (cold / heat): A ++ / A +

Seer efficiency coefficient (cold): 6,1

Efficiency coefficient SCOP (heat): 4,0

Compressor technology: High efficiency inverter DC

Exterior air flow: 3.000 m³ / h

Gas Refrigerant Gas Ecological / load: R32 / 1.85 kg

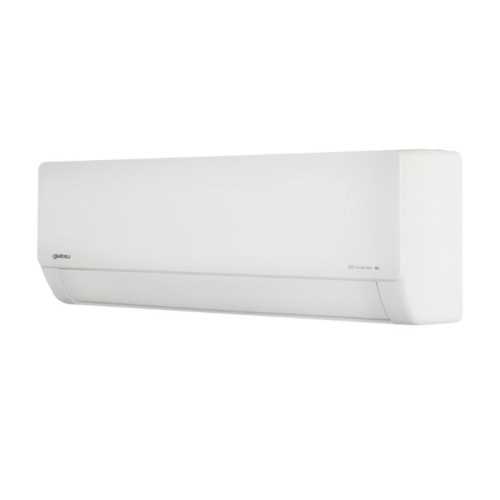

Indoor units included (Aroma 3 series)

Splits for bedrooms: 2x GIA-MSI-09AR3R32 (2,60 kW cold / 2.93 kW heat each)

Split for room / main: 1x GIA-MSI-12AR3R32 (3,51 kW cold / 3.81 kW heat)

Minimum sound pressure (2.5 kW model): 19 dB (A) (ultrasilence)

Dimensions models 2.5 kW (an x at x PR): 723 x 286 x 199 mm

Dimensions Model 3.5 kW (an x at x PR): 813 x 289 x 201 mm

Connection diameter (all models): Liquid 1/4 - Gas 3/8

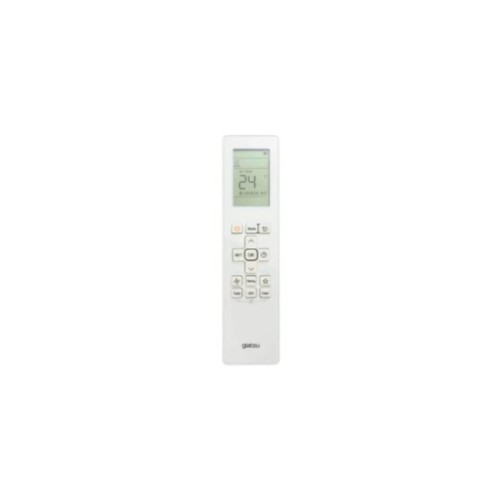

Domotic wireless connectivity: Wi-Fi series included (control by smartphone or voice)

✔️ Smart ecosystem with Wi-Fi included: Every indoor Unit includes factory pre-installed a wireless receiver module. When linking with the mobile application on your smartphone or tablet, it allows you to control the three rooms independently or manage the basic functions using voice commands with Alexa and Google Home.

✔️ High temperature self-cleaning process (56 ° C): Take care of the air quality of your home. The split runs an automatic cycle that raises the internal temperature of the battery up to 56 degrees, managing to dry and sterilize the evaporator to remove dust, accumulated bacteria and mold, significantly reducing odors.

✔️ Compressor and Fans DC Inverter: The outer motor and the ventilation system of Giatsu they optimize seasonal performance adaptively. By continuously modular the velocity of the refrigerant flow R32 According to the real loads of the house, avoid consumer peaks and offers very efficient operation.

✔️ Optimized design for installation and maintenance: AROMA 3 units incorporate practical elements such as a level support included to ensure a perfect alignment, easy access to electric wiring and an electronic plate (PCB) simply, greatly facilitating technical tasks.

✔️ Housing and Golden End / Contact ON / OFF: The exterior chassis has long-term anti-corrosion treatment. Likewise, splits support remote connectivity to perform stop / running functions, which is ideal for its integration with hotel cards or management systems.

How does Asymmetric Management work for stays with units of 2.5 kW and 3.5 kW?

Independence in the air conditioning of the three stays is total and is electronically coordinated by the external engine expansion valves of Giatsu. Each of the aroma 3 mural units has its own wireless control and its own thermal reading probes. You can program the 3.5 kW unit in the main room in cold mode during the day while the bedroom units remain completely off or at a smooth setpoint temperature, adapting the outer compressor exactly to the proportionate proportional instantaneous expenditure.

Is it necessary to purchase any optional accessory for the Wi-Fi control of the units?

No, the aroma 3 mural units incorporate the integrated wireless receiver module into the factory equipment's own chassis. It is not necessary to perform complex wiring facilities or acquire optional domotic gateways. You only need to have an Internet wireless Internet connection and configure the equipment with the official mobile application compatible with smartphone or tablet.

What are the maximum refrigeration and uneven distances of this multi-split set?

According to the official data sheet of the GIA-MO3-27IX41B2R32 engine, the outdoor Unit it supports a maximum total length of pipes up to 60 meters by adding the three refrigeration branches, with a maximum limit by individual branch of up to 30 meters. The maximum vertical rate allowed between the outdoor Unit and the interiors are 15 meters, while the vertical maximum difference between the internal units themselves installed within the house is up to 10 meters.
