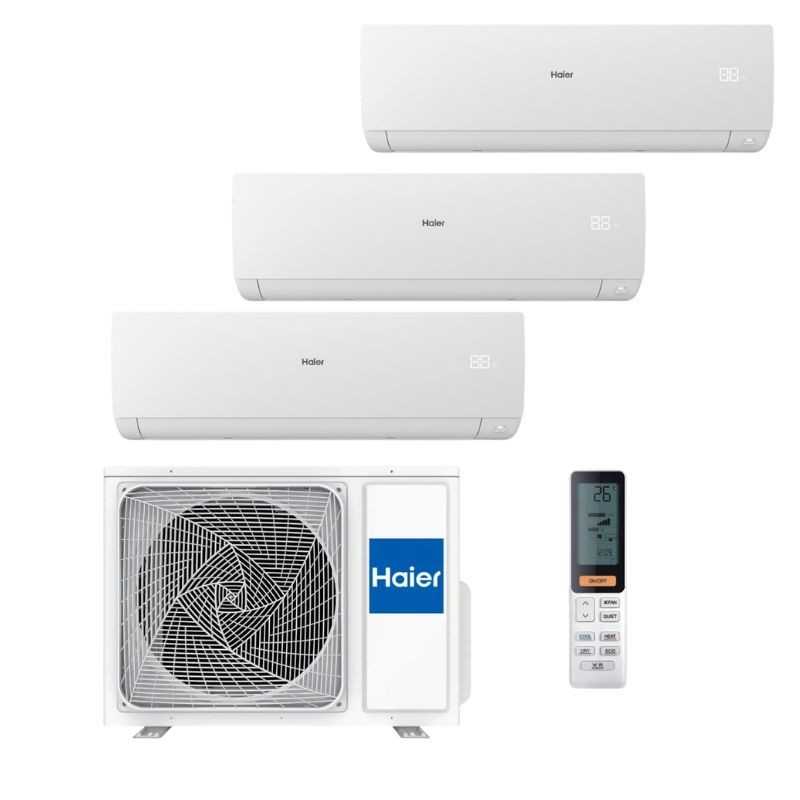

Multi Split 3x1 Haier 5U105S2SS5FA + AS25SBBHRA-MW + AS35SBBHRA-MW + AS50SDBHRA-MW Air Conditioning Flexis S White

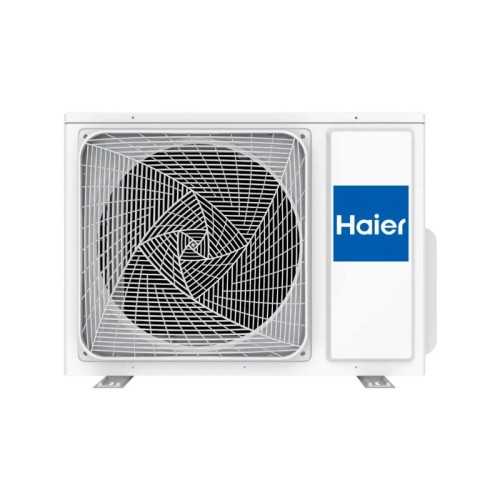

External system performance (5U105S2SSS5FA)

Cooling capacity (nominal): 10.50 kW (Extended Range of Work)

Capacity Heating (nominal): 11.50 kW (Extended Range of Work)

Seasonal energy classification (cold): A +++ / A ++ (according to configuration)

Compressor technology: A-Pam TWIN ROTATIVE INSTER high modulation

Maximum capacity of connection ports: Up to 5 interior units (5x1 architecture)

Advanced electronic protection: Integrated tension stabilizer

Gas Refrigerant Gas Ecological / Connection: R32 / single-phase 230V

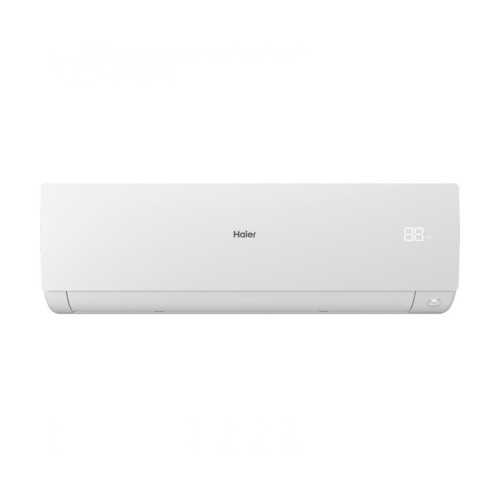

Internal units included (Flexis S series)

Split bedroom / dispatch unit: 1x AS25SBBHRA-MW (2.50 kW / 9,000 BTU / H)

Split unit Main room: 1x AS35SBBHRA-MW (3.50 kW / 12,000 BTU / H)

Split Salon / Diaphanous Zone unit: 1x AS50SDBHRA-MW (5.00 kW / 18,000 BTU / H)

Outside aesthetic finish: White Matte Textured Premium

Minimum sound pressure (2.5 and 3.5 kW models): 16/17 dB (A) (ultrasilence)

Active purification technology: UVC Pro Lamp and Ionizer

Intelligent presence sensor: Eco-built-in series Sensor

Wireless connectivity: Wi-Fi of integrated standard (HONEP)

✔️ UVC Pro advanced purification system: Flexis S units incorporate an UVC Pro electronic module that emits ultraviolet radiation of integrated short wave and generates active plasma. When ionizing the water water molecules, it creates hydroxyl (OH) radicals that attack and neutralize the virus structure, bacteria, mold spores and suspension allergens, guaranteeing a clean air and Disinfected.

✔️ Thermal sterilization at 56 degrees (Steri-Clean): An automated high temperature internal disinfection protocol. The system freezes the evaporator to agglutinate the dust and impurities accumulated in the aluminum slats, eliminating them by means of a fast defrost, to later heat the internal battery at 56 ° C for 30 minutes, destroying the microorganisms by thermal shock.

✔️ Eco-intelligent presence sensor: Each split has a high resolution sensor that continuously scans the room plan. If it detects movement, the algorithm indirectly redirects the air flow (Coanda Plus effect) to provide perfect comfort without annoying currents over the body, reducing power automatically if the stay remains empty.

✔️ Ultrasilencious Comfort Operation: Thanks to the aerodynamic optimization of the deflectors and the lightened cross-sectional fan, the friction of the air is reduced to minimum operational values. The Split works by emitting a slight murmur in its lowest mode, which ensures a totally pleasant nocturnal break.

✔️ Ecosystem Hon App with integrated Wi-Fi: The factory wireless module allows you to manage the three interior zones from any smartphone independently. Turn on or off the units, modify the temperatures, activate the UVC Pro disinfection functions or program Profiles of Complex Performance, linking natively with Alexa and Google Assistant.

What actual advantage does provide installing a outdoor Unit 5U105 of five zones with only three splits (3x1)?

The advantage is maximum and exceptional in terms of durability, seasonal performance and absolute mechanical reliability. The internal units selected (especially that of 5.0 kW and the 3.5 kW) require a very high refrigeration flow and a very high thermal transfer rate when they work together. When connecting them to a outdoor Unit of industrial range of 10.5 kW nominal sized to feed up to five splits simultaneously, the compressor works in a totally unlived regime. It does not suffer from mechanical overwhelming, reaches the desired temperatures almost instantaneously and guarantees a perfect and unalterable thermal behavior even under extreme weather conditions outside.

How is the control by independent areas with asymmetric capabilities (9K + 12K + 18K) managed?

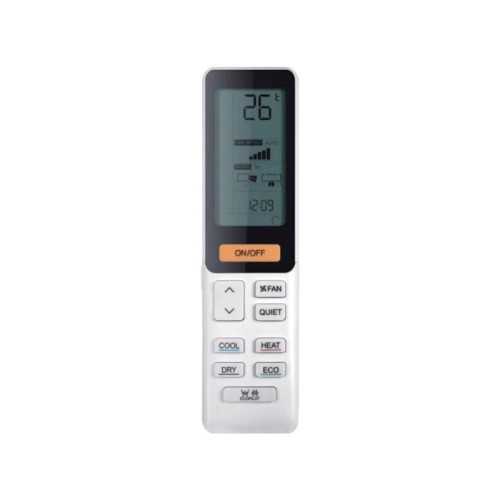

Independence in the air conditioning of the three stays is total and absolute. Each matt White Flexis S unit includes its own temperature sensor, its motorized flow slats and its own remote control. You can have on the split of 5.0 kW in the main room at full performance during the day, while the bedroom units remain off or running under a different slogan, adapting the outer compressor exactly to instant proportional expense for non-spend more energy.

Is the operation of the UVC PRO purifier for the people of the house?

It is 100% safe and is certified. The UVC PRO ultraviolet generation device is fully encapsulated and shielded hermematically in the internal structure of the Split wall chassis. The light rays purify the air as it passes through the evaporator's battery, preventing any type of projection to the outside of the rooms inhabited.
