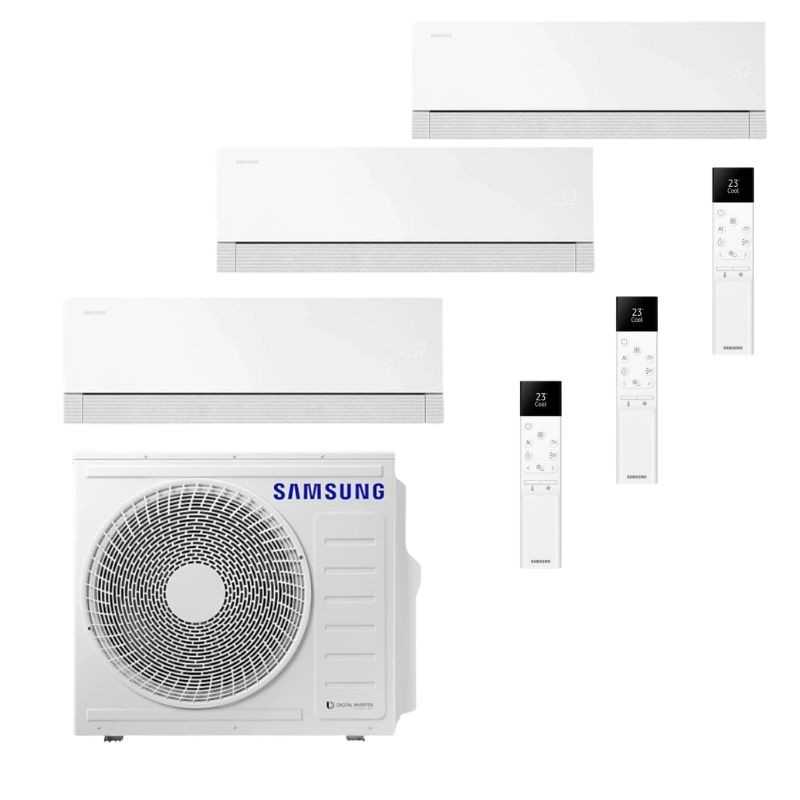

Multi Split Kit Samsung Windfree Premiere 3x1
AJ052TXJ3KG • 3X AR09TXEAAWKNEU • 5,20 kW
Premium air conditioning without direct air currents Through a perfect symmetrical combination for three bedrooms or medium-sized stays: three independent interior units of 2.5 kW each Belonging to the Premium Series Windfree Premiere connected to a single exterior engine 5,20 kW of nominal power. This system allows you to fully autonomously the temperature of each room, reduce the space occupied on your façade or terrace and enjoy the maximum daily well-being thanks to its thousands of dispersing microorifices, advanced air purification, integrated Wi-Fi SmartThings control Series and Ecological Gas R32.
Windfree Technology Premiere for a soft freshness without annoying bursts
Wi-Fi SmartThings control integrated with advanced artificial intelligence
Ultrasilencious performance and high efficiency air filtering
A +++ / A ++ maximum seasonal energy saving classification
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Multi Split 3x1 Samsung AJ052TXJ3KG + 3X AR70H09C1AWNEU Windfree Premiere Air conditioning
Referencia: 3x1SWF5270090909SP
€2,582.89
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Multi Split Kit Samsung Windfree Premiere 3x1
AJ052TXJ3KG • 3X AR09TXEAAWKNEU • 5,20 kW
Premium air conditioning without direct air currents Through a perfect symmetrical combination for three bedrooms or medium-sized stays: three independent interior units of 2.5 kW each Belonging to the Premium Series Windfree Premiere connected to a single exterior engine 5,20 kW of nominal power. This system allows you to fully autonomously the temperature of each room, reduce the space occupied on your façade or terrace and enjoy the maximum daily well-being thanks to its thousands of dispersing microorifices, advanced air purification, integrated Wi-Fi SmartThings control Series and Ecological Gas R32.
Windfree Technology Premiere for a soft freshness without annoying bursts
Wi-Fi SmartThings control integrated with advanced artificial intelligence
Ultrasilencious performance and high efficiency air filtering
A +++ / A ++ maximum seasonal energy saving classification
Security policy
Delivery policy
Refund policy
MULTI INVERTER R32 SYSTEM | Intelligent comfort for three stays with a single exterior engine
Samsung Multi Split 3x1 AJ052TXJ3KG Windfree Premiere
Outdoor Unit 5,20 kW connected to three symmetric interior units AR09 from the Insignia Series Premiere: air conditioning without air currents, advanced and wifi native.
Three stays at the ideal temperature: perfect power balance and minimum consumption at home
The multi-split air conditioning system Samsung with symmetric internal units of the Windfree Premiere Insignia range is developed to respond with maximum precision to the comfort and well-being needs of your daily life. By centralizing the air conditioning of three independent rooms in one outdoor Unit High performance inverter, the set significantly decreases the visual impact on facades, patios or terraces, optimizing the outer space and praising the installation costs compared to the placement of three separate individual engines. Each of the three mural splits works with total electronic autonomy, allowing you to set custom temperatures in each area so you can enjoy a fresh atmosphere where you need it without wasting energy in empty stays.
In the technical section, the outdoor Unit incorporate advanced compression technology Digital Inverter Boost of Samsung. This state-of-the-art intelligent motor effectively compensates by mechanical forces of internal rotation, which mitigates operating vibrations, reduces external noise and eliminates sudden starts from ancient equipment, making the system reaches the desired temperature much more Quick while maintaining consumption in minimum operational values. In combination with ecological refrigerant gas R32, high efficiency and low environmental impact, the set stands out for its remarkable seasonal coefficients, achieving an excellent energy classification of class To +++ in refrigeration and To ++ in Heating Mode.
The great differential advantage of the mural units of the series Windfree Premiere it lies in its revolutionary system of air distribution and purification. Through thousands of microorifices located in the split chassis, cold air is dispersed softly and homogeneously throughout the stay, completely eliminating the gusts of direct cold air on your skin that usually cause discomfort or Dryness Its performance is extremely silent, taking full of your night rest in the bedrooms. In addition, with the serial Wi-Fi and the official SmartThings application, the system uses artificial intelligence algorithms to learn from your daily habits and automatically optimize operating modes to save energy intelligently.
Technical characteristics

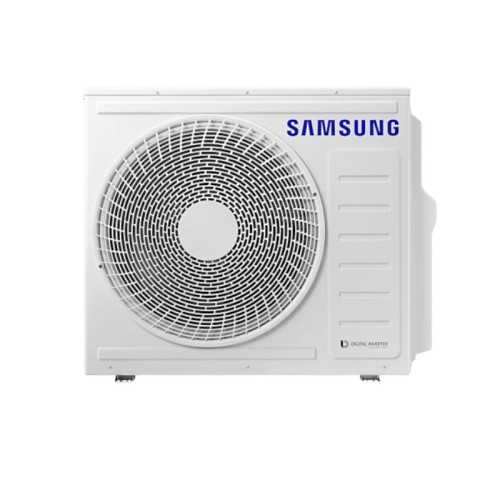

Performance of the Outdoor Unit (Aj052txj3kg)
Cooling capacity (nominal): 5,20 kW (high-efficiency work range)
Capacity Heating (nominal): 6,30 kW (High Efficiency Work Range)
Seasonal energy classification (cold): A +++ (maximum efficiency)
Seasonal energy classification (heat): A ++ (high efficiency)
Compressor technology: Digital Inverter Boost of Samsung
Protection and durability: Advanced anticorrosion treatment in the exchange fins
Gas Refrigerant Gas operation: R32 ecological low environmental impact
Symmetrical interior units (3x AR09TXEAAWKNEU)
Commercial range / series: Samsung Windfree Premiere Mural
Individual refrigeration capacity: 2.50 kW (8,530 BTU / H for each split)
Individual heat capacity: 3,20 kW (10,920 BTU / H for each split)
Diffusion technology: Windfree by thousands of front micro-buildings
Minimum sound pressure (silent mode): Optimized ultrasilence level
Air filtering: High efficiency washable filter integrated
Diameter of refrigerated pipes (all ports): Liquid 1/4 - Gas 3/8
Domotic wireless connectivity: Wi-Fi of integrated standard (SmartThings App)
Technologies for daily comfort of the series Samsung Windfree Premiere
✔️ Windfree technology without air currents: Enjoy a soft and pleasant freshness at home. The air is dispersed uniformly through thousands of microorifices on the front panel, completely eliminating the free cold air gusts on your skin that usually cause discomfort or dryness.
✔️ Smart Ecosystem SmartThings with integrated Wi-Fi: Control the temperature of your home from anywhere and at any time through your smartphone. The Official SMARTHINGS application allows you to manage the three areas independently, configure complex timers, monitor energy consumption and let artificial intelligence optimize operation according to your daily habits.
✔️ Digital compressor Inverter Boost high efficiency: The technological heart of the outdoor Unit it drastically reduces light consumption. By maintaining the desired temperature constantly without sudden variations, the energy fluctuations decreases and it manages to save electricity compared to traditional models.
✔️ Good evening mode optimized: Designed specifically to take care of the phases of your dream. This mode automatically regulates the temperature and humidity of the room, eliminating annoying currents and operational noises to ensure a deep and repairing nocturnal rest.
✔️ Advanced and easy maintenance filtering: It has a high efficiency purifying mesh that keeps the heat exchanger clean and effectively retains floating fine dust particles from the environment. In addition, its design allows you to extract it and clean it comfortably.
Frequently asked questions
How does management by independent areas with three connected interior units work?
Independence in the air conditioning of the three rooms is total and is electronically coordinated by the outdoor Unit of Samsung. Each of the three SPLITS of the Premiere series has its own wireless remote control and its own thermal reading probes. You can program a split in a bedroom in windfree cooling mode at 24 ° C, maintain a second unit off in the study and leave the third running at a smooth power in another room, adapting the exterior compressor exactly the proportionate proportional expenditure To avoid more consumption.
Do you need to buy any optional accessory to control equipment from the mobile phone?
No, the mural units of the series Samsung Windfree Premiere incorporate the pre-installed wireless receiver module from the computer's own chassis itself. It is not necessary to perform additional wiring or acquire external domotic catwalks. You only need to have a wireless Internet connection on the home and download the official SMARTHINGS application for free Samsung on your phone or tablet.
What are the refrigeration distances and installation limitations of this set?
The outdoor Unit AJ052TXJ3KG offers a great geometric assembly versatility according to official standards of Samsung. It supports a maximum total length of pipes up to 50 meters by adding the three branches of the installation, with a maximum limit by individual branch of up to 25 meters. The maximum vertical rate allowed between the outdoor Unit and the indoor units is 15 meters, which remarkably facilitates its placement on rooftops, facades or terraces in a totally safe way.
Do you need technical advice to plan your multi split installation of Samsung?
On https://tualmacendelclima.com/en/ we are specialist engineers in the design and calculation of advanced multi-zone air conditioning systems. If you have doubts about how to plan the layout of copper interconnection pipes (the three splits of this assembly require 1/4 liquid lines and 3/8 gas), calculate the volume of additional refrigerant needed or integrate control Dompomotic voice, our technical department is at your entire disposal. Ensure your comfort at the best market price with totally safe shipment.
Call 623 541 934
3x1SWF5270090909SP
Data sheet
- Brand
- Samsung
- Outdoor Unit
- AJ052TXJ3KG/EU
- Indoor Unit 1
- Ar70h09c1awneu
- Indoor Unit 2
- Ar70h09c1awneu
- Indoor Unit 3
- Ar70h09c1awneu
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.200
- Refrigerator capacity (kcal / h)
- 4.472
- Nominal consumption Cold (W)
- 1.250
- Energy class (cold)
- A+++
- SEER
- 8,5
- Heat capacity (W)
- 6.300
- Heat capacity (Kcal / h)
- 5.418
- Nominal heat consumption (W)
- 1.320
- Energy class (heat)
- A
- SCOP
- 3,6
- Minimum sound pressure UI DB
- 16/16/16
- Net weight (kg)
- 110
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Integrated WiFi
- Surface recommend UI1
- 20
- Surface recommend UI2
- 20
- Surface recommend UI3
- 20
- EU dimensions (anxfxh) mm
- 880 x 310 x 638
- Dimensions UI1 (ANXFXH) mm
- Dimensions UI2 (ANXFXH) mm
