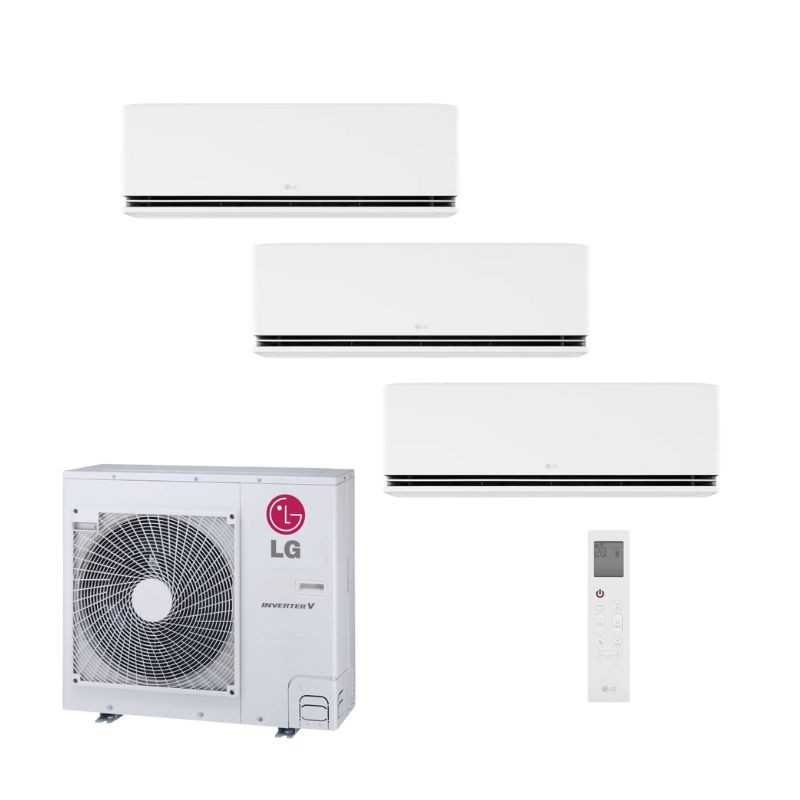

Air conditioning kit 3x1 Multi Split LG Mu4r27.u42 + 3x p12snd.ns0 dualcool ai

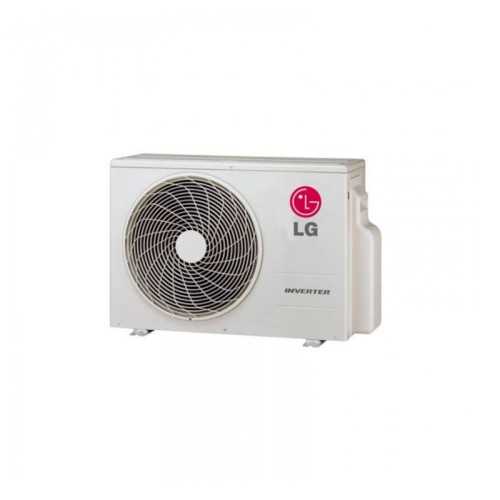

Performance of the Outdoor Unit (Mu4r27.u24a)

Cooling capacity (nominal): 7,91 kW (Rank: 1.06 KW - 9.00 kW)

Capacity Heating (nominal): 8,44 kW (range: 1,17 kW - 9,61 kW)

Seasonal energy classification (cold): A ++ (Optimal performance)

Seasonal energy classification (heat): A + (Optimal performance)

Seer efficiency coefficient (cold): 8,50

Efficiency coefficient SCOP (heat): 4,20

Compressor technology: BLDC Twin Rotary Inverter LG

External Changer Protection: OCEAN BLACK END Coating

Gas Refrigerant Gas Ecological / load: R32 / 1.35 kg preloaded

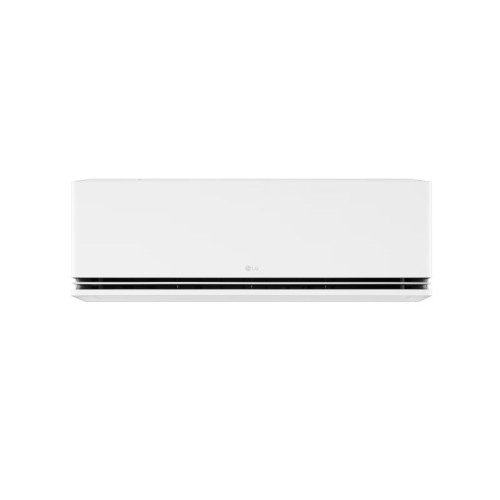

Symmetrical interior units (3x p12snd.ns0)

Commercial range / series: LG Dualcool Ai Mural Comfort

Individual refrigeration capacity: 3.50 kW (12,000 BTU / H for each split)

Individual heat capacity: 3.70 kW (12.628 BTU / H for each split)

Minimum sound pressure (Sleep mode): 19 dB (A) (ultrasilence)

Dimensions of each split (an x at x PR): 799 x 307 x 235 mm

Net weight per mural unit: 10 kg

Diameter of refrigerated pipes (each): Liquid 1/4 - Gas 3/8

Wireless connectivity: Wi-Fi of integrated standard (LG Thinq App))

✔️ Compressor BLDC Twin Rotary of Extended Range: The outdoor Unit it uses an eccentric double rotor engine that balances the centrifugal forces of internal rotation. By including an advanced electronic sensor that continuously measures the pressure and the temperature of the R32 refrigerant, the algorithm of LG it optimizes the exact turns regime, reaching the set temperature immediately and reducing electrical consumption.

✔️ Shield Ocean Black End of High Resistance: The heat exchanger of the outdoor Unit it is covered with a double layer of modified epoxy resin and a protective hydrophilic coating. This high-tech barrier neutralizes the accumulation of water droplets and avoids galvanic corrosion caused by salinity in coastal zones or urban pollution, drastically prolonging the useful life of the machine.

✔️ Smart home friendly ecosystem LG Thinq with AI: Every indoor Unit includes factory pre-installed a Wi-Fi receptor module within its own structure. When linking with the ThinQ application, it allows you to control the three areas independently, configure complex weekly timers, monitor instant energy use and activate artificial intelligence functions to adapt the air conditioning to your habits Everyday.

✔️ Silent operation of 19 dB Sleep: By inclining the crossed flow fan slats and the use of a brushless continuous current motor, the split significantly reduces the air passage operating turbulences. When activating night mode or low speed, it emits a slight murmur of 19 decibels that ensures an unbeatable rest environment.

✔️ Active energy control and dual filter: The systems of LG they allow to limit the maximum consumption power of the compressor voluntarily through the remote control (adjustable saving levels), optimizing spending when the maximum capacity of the machine is not required. In addition indoor Unit it has a double action filtering system responsible for retaining floating fine dust particles.

What actual advantage does provide installing a outdoor Unit MU4R27 of four zones with only three splits (3x1)?

The advantage is excellent in terms of durability, seasonal performance and absolute mechanical reliability. The internal units selected from 3.5 kW require a refrigeration flow and a high thermal transfer rate when they work in simultaneous. When connecting them to a outdoor Unit high capacity of 7,91 kW nominal sized to feed up to four splits, the Inverter compressor works in a totally relieved regime. It does not suffer from mechanical overwhelming, reaches the desired temperatures faster and guarantees impeccable and unalterable thermal behavior even under extreme weather conditions outside.

How does independent zone management work with three symmetric 3,5 kW installed splits?

Independence in the air conditioning of the three stays is total and is electronically coordinated by the expansion valves of the outdoor Unit. Each of the Comfort mural units has its own remote control and its own thermal reading probes. You can have on two spliths at full capacity in the day zones while the bedroom unit or resting area remains off or running under a soft slogan, adapting the external compressor exactly to the proportionate proportional instantaneous expenditure.

Is it necessary to purchase any optional accessory for Wi-Fi control?

No, the mural units of the Confort Series incorporate the pre-installed wireless receptor module within the equipment's own chassis. It is not necessary to buy external domotic gateways or perform additional wiring. You only need to have an Internet wireless internet connection and download the official application for free LG Thinq on your Smartphone or Tablet.
