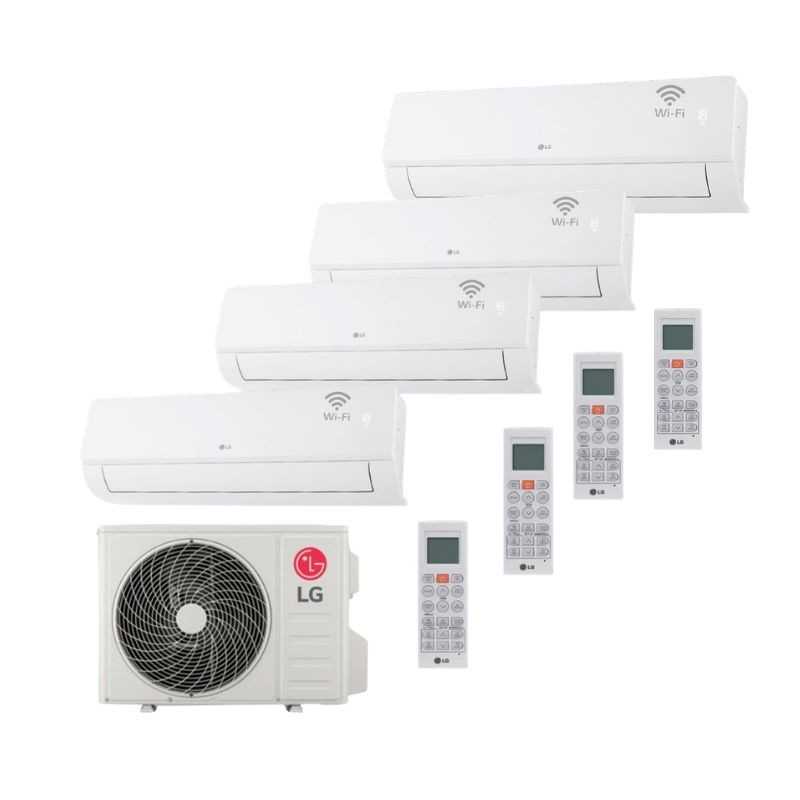

Multi Split 4x1 LG MU5R30.U42 + 2X EZ09CSN.CSJ1 + 2X EZ12CSN.CSJ1 INFINITY

LG Multi Inverter Split 4x1 Infinity 09 + 09 + 12 + 12

Comprehensive climate renovation of high capacity without works. Outdoor Unit multitubaria 8.8 kW balanced symmetrically with two 2.5 kW splits and two 3.5 kW splits of the series LG Infinity.

Technical study and personalized quote

Due to the multiple mechanical combinations, simultaneous powers and different lengths and cufflode tubing lengths that require multi-split 4x1 installations, we carry out custom quotes with all the necessary material for his work. To ensure a perfect hydraulic dimensioning, verify the thermal simultaneity of the compressor and determine if its installation requires optional accessories or a specific balance of refrigerant gas, our engineering department exhaustively studies each request.

📩 Facilitate this data and our technical team will send you a complete breakdown with all the necessary material for your installation.

Power and Residential Versatility Sin Works: Vanguard Air conditioning with the Infinity range of LG

The system LG Multi inverter 4x1 equipped with the outdoor Unit MU5R30.U42 provides a unified solution and high mechanical performance to provide comprehensive air conditioning to single-family homes, large floors or professional offices. When connecting four indoor units to an outer multitubly high-capacity compressor - factory bent to manage up to a maximum of 5 independent rooms -, this set ensures exceptional power reserve. In this way, the thermal response is notably optimized when all the rooms demand refrigeration or heating at the same time, reducing the presence of external motors on terraces or architectural facades.

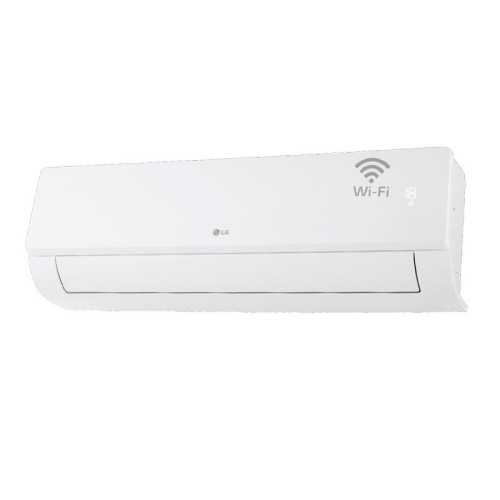

This kit presents an ideal and very balanced distribution, made up of two interior units of 2.5 kW (model EZ09CSN.CSJ1) and two units of greater flow rate of 3.5 kW (model EZ12CSN.CSJ1). This combination is excellent for real estate that have two rooms or shipments of normal dimensions (up to 20 m²) and two largest main stays, such as a dining room and a master bedroom or open concept kitchen (up to 30 m²). All the interior units belong to the range LG Infinity, designed under the innovative concept of a direct replacement of old equipment without the need for works or reforms. They emphasize by incorporating functions aimed at maximum comfort, such as a perfect self-cleaning system that maintains the dry exchanger automated and an ultrasilence function of just 19 dB (A).

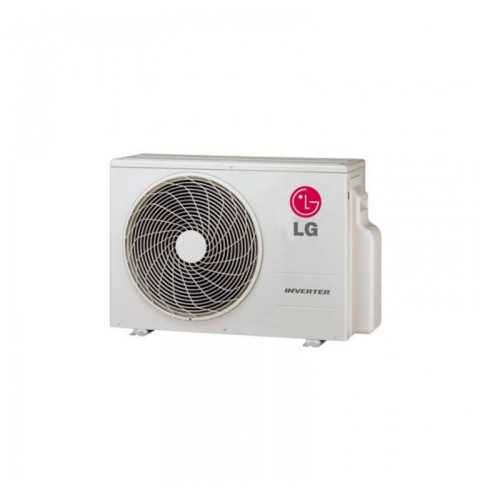

In the Technical Section, the outdoor Unit it incorporates a BLDC Inverter Twin Rotary compressor of great seasonal performance, reinforced by an enhanced width fin exchanger and the battery with Ocean Black End coating, excellent protection against marine saline and corrosion. Thanks to the intelligent use of ecological refrigerant R32 and advanced control by pressure and temperature sensors, the set reaches an optimal seasonal energy classification A +++ in refrigeration (SEER 8.60). Finally, each indoor Unit it has integrated Wi-Fi connectivity to offer instant remote control through the official application LG Thinq.

Frequently asked questions

Would you like advice for the sizing of your commercial installation?

On https://tualmacendelclima.com/en/ we are specialist engineers in technical design, control and optimization of multi-split air conditioning networks and advanced zoning. If you need to solve doubts about simultaneity coefficients, maximum slopes or check the official performance specifications of the range LG, our engineering department is at your entire disposal.
